Canister Purge Control Valve: Locations

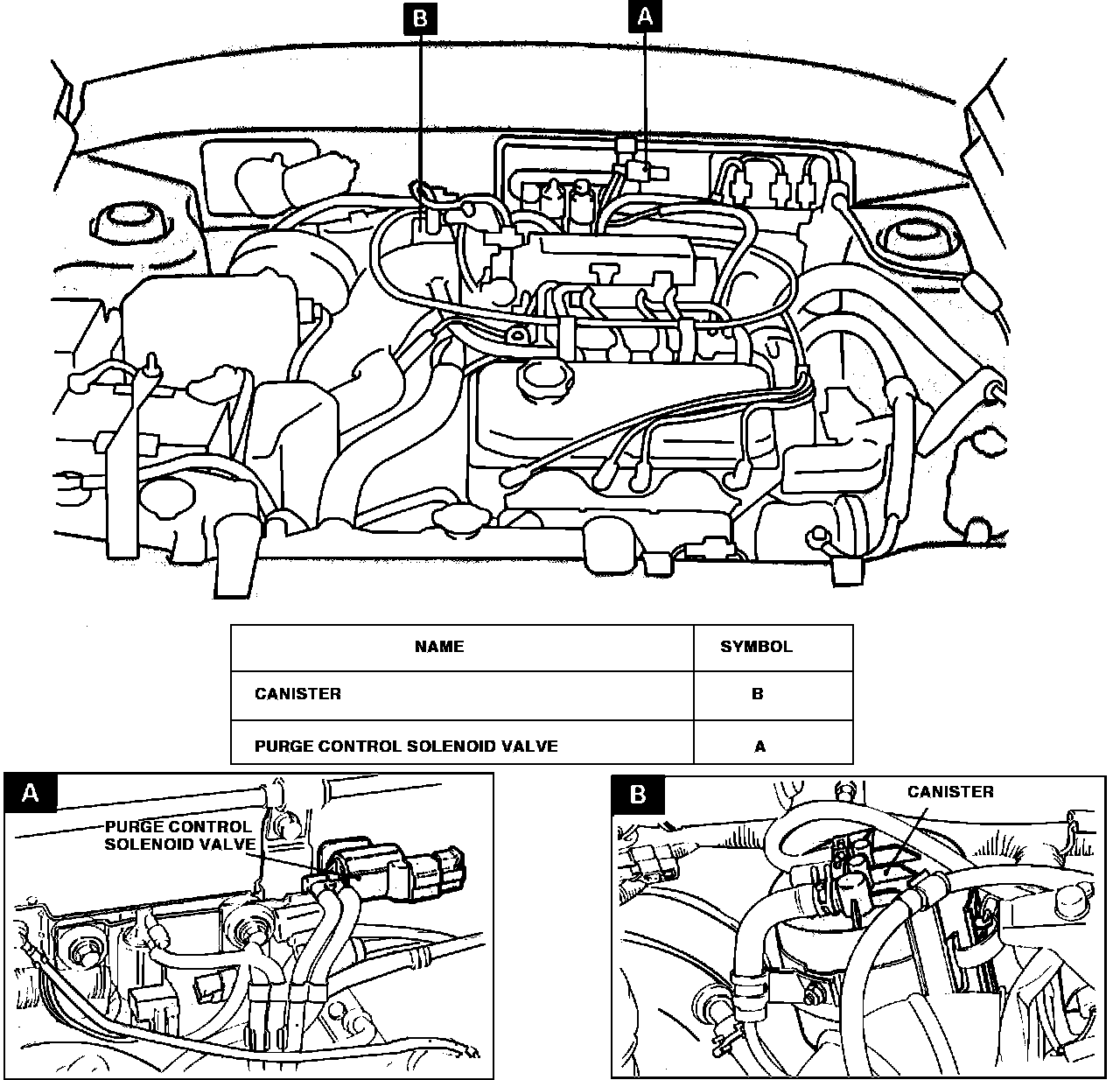

Fig. 8 Component Locations (Evaporative Emission Control System):

Charcoal Canister: Center, rear of engine compartment
Purge Control Solenoid Valve: Rear, LH side of engine compartment
Purge Port: On side of throttle valve housing
