Mitsubishi
>>
1990
>>
Mirage L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

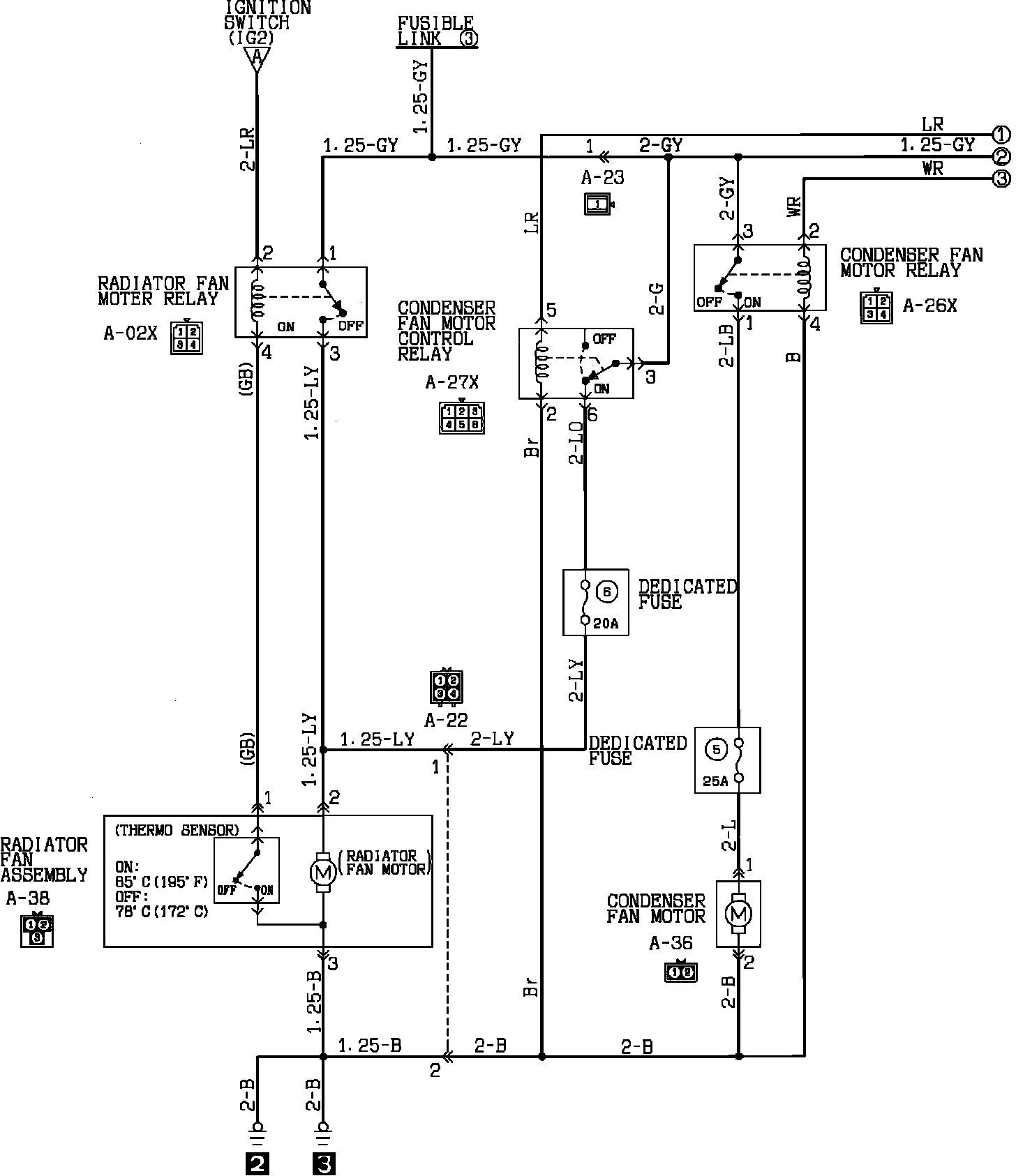

Air Conditioning:
Air Conditioning:
Air Conditioning:

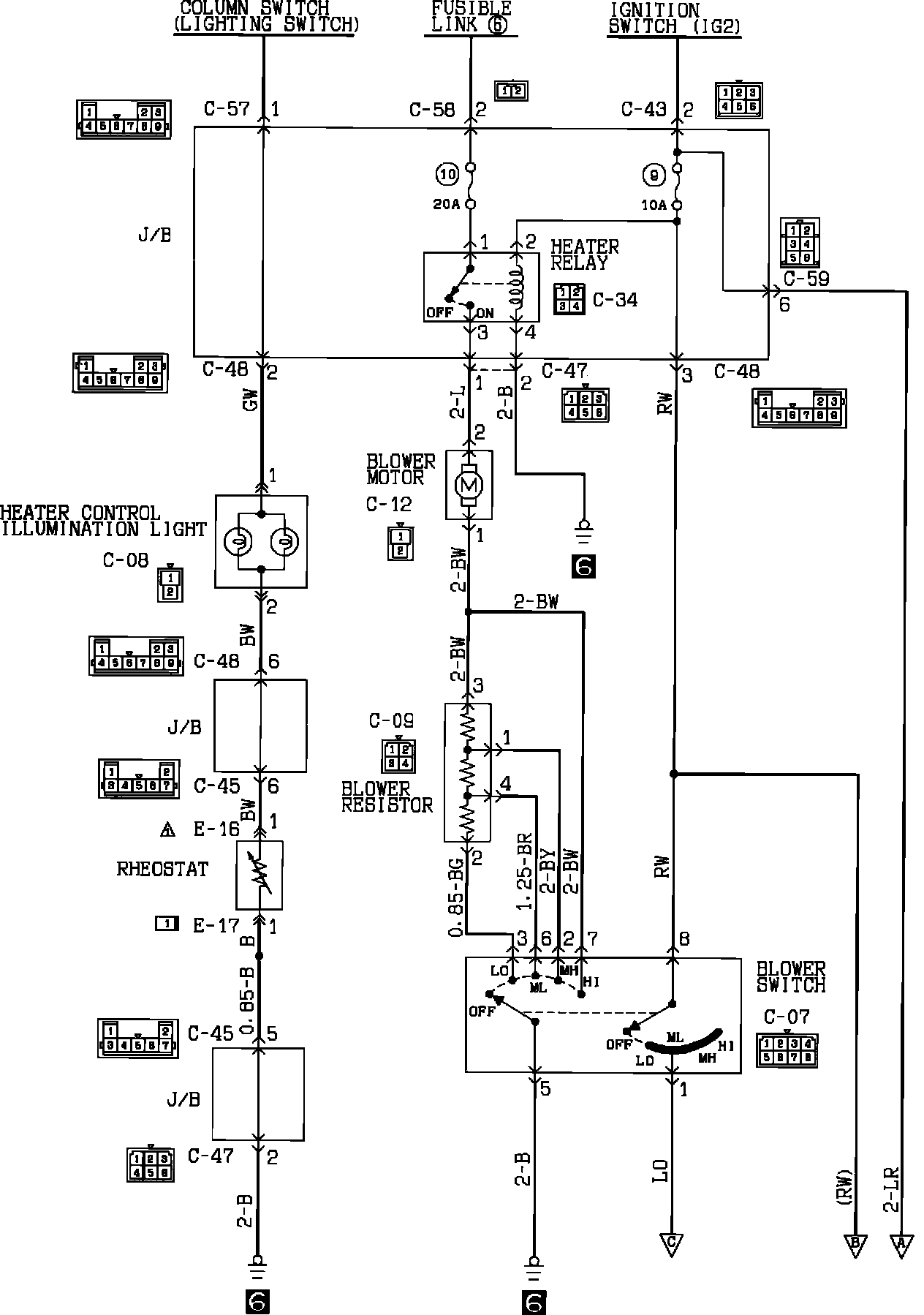

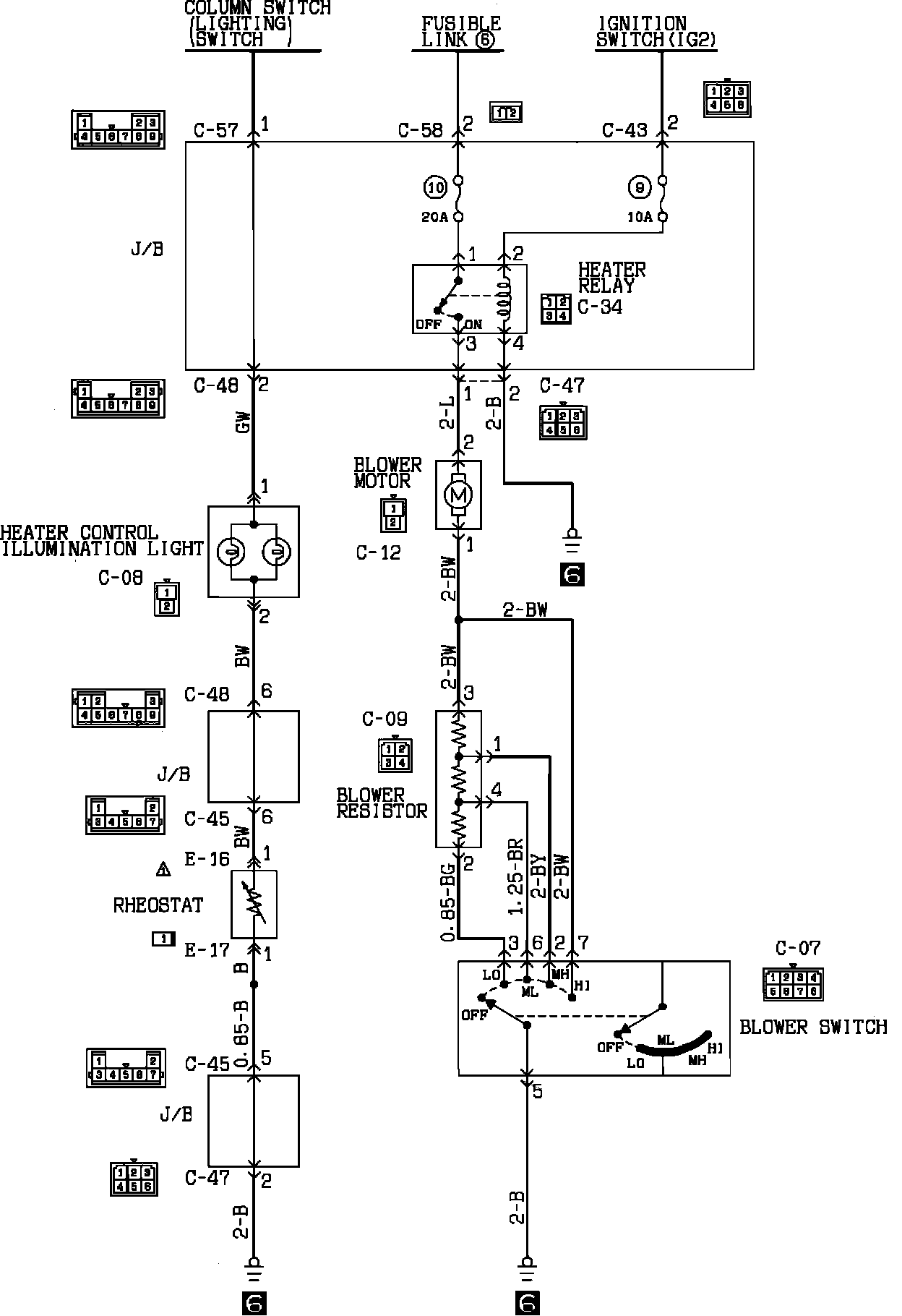

Heater:
