Intake Manifold: Service and Repair

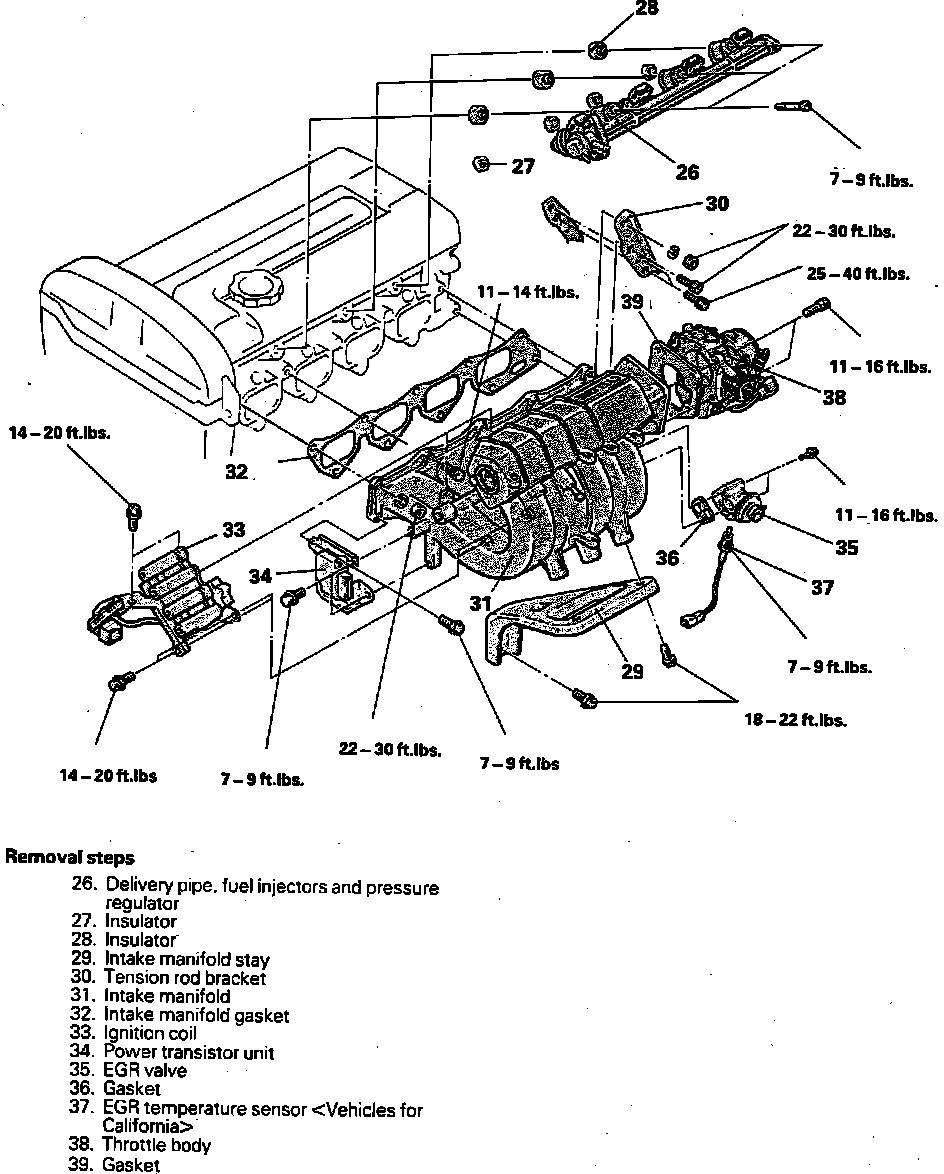

Fig. 1 Replacing Intake Manifold (Part 1 Of 2):

Fig. 1 Replacing Intake Manifold (Part 2 Of 2):

Fig. 2 Replacing Intake Manifold (Part 1 Of 2):

Fig. 2 Replacing Intake Manifold (Part 2 Of 2):

When replacing intake manifold, remove and install manifold in numbered sequence as shown in Figs. 1 and 2.
