Wiper and Washer Systems
Wiper and Washer Systems
Wiper/Washer System, Front:

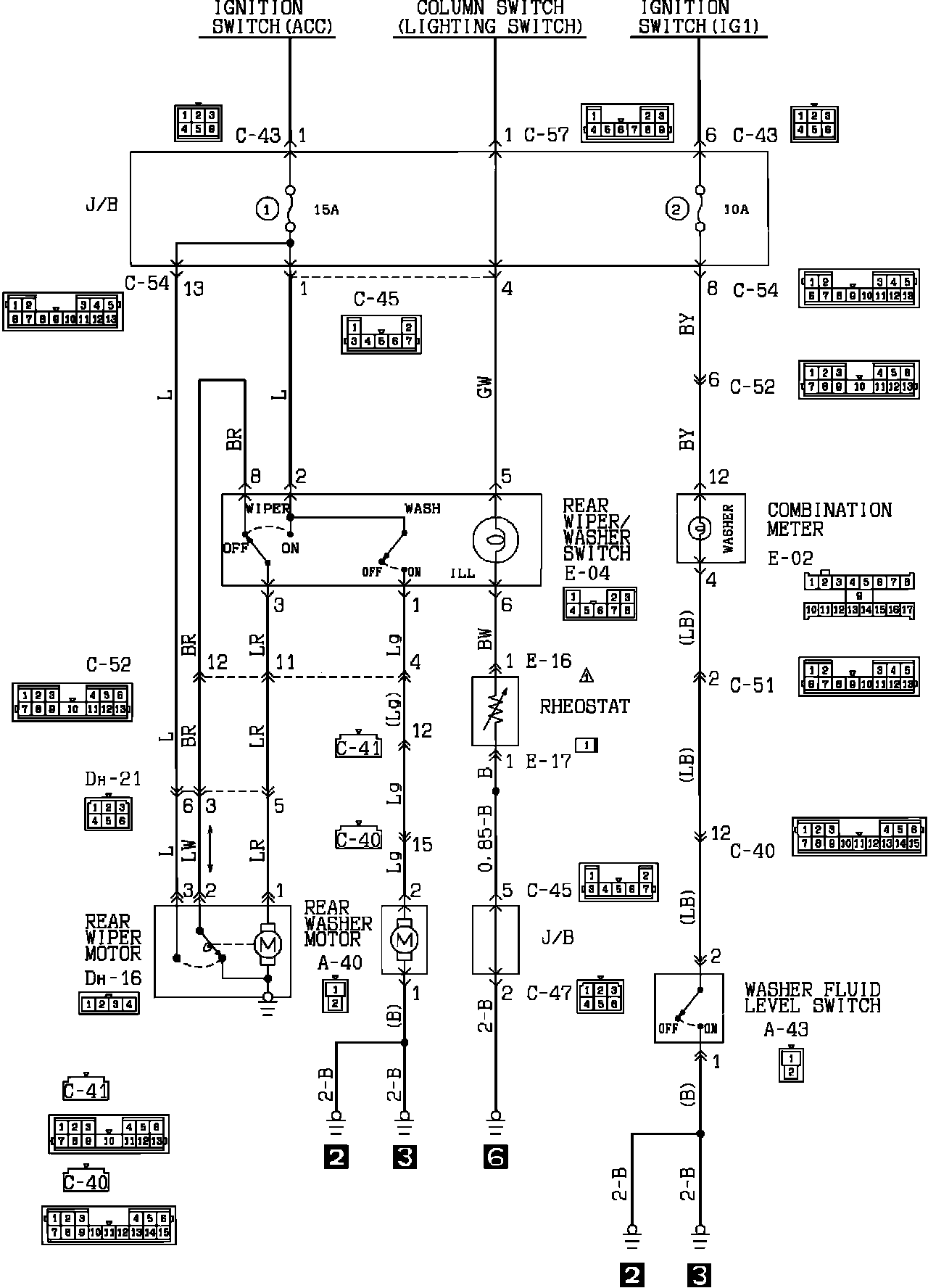

Wiper/Washer System, Rear:
