Mitsubishi
>>
1990
>>
Mirage L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Turn Signals
>>
System Diagram
>>
Part 2 of 2
Part 2 of 2

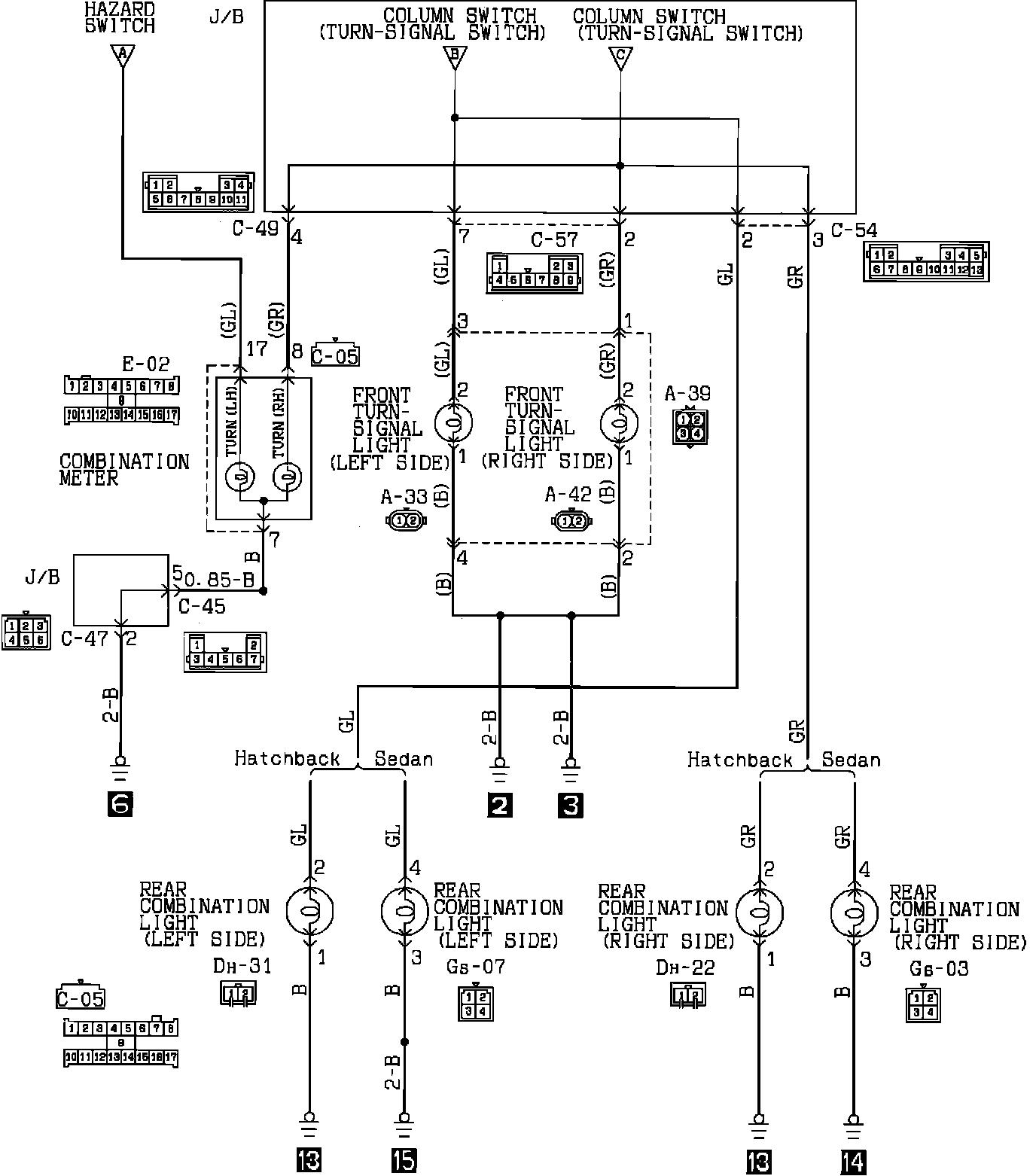

Hazard & Turn Signal Lamps:
