Home >> Mitsubishi >> 1990 >> Galant L4-1997cc 2.0L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Fuse Block

Fuse Block

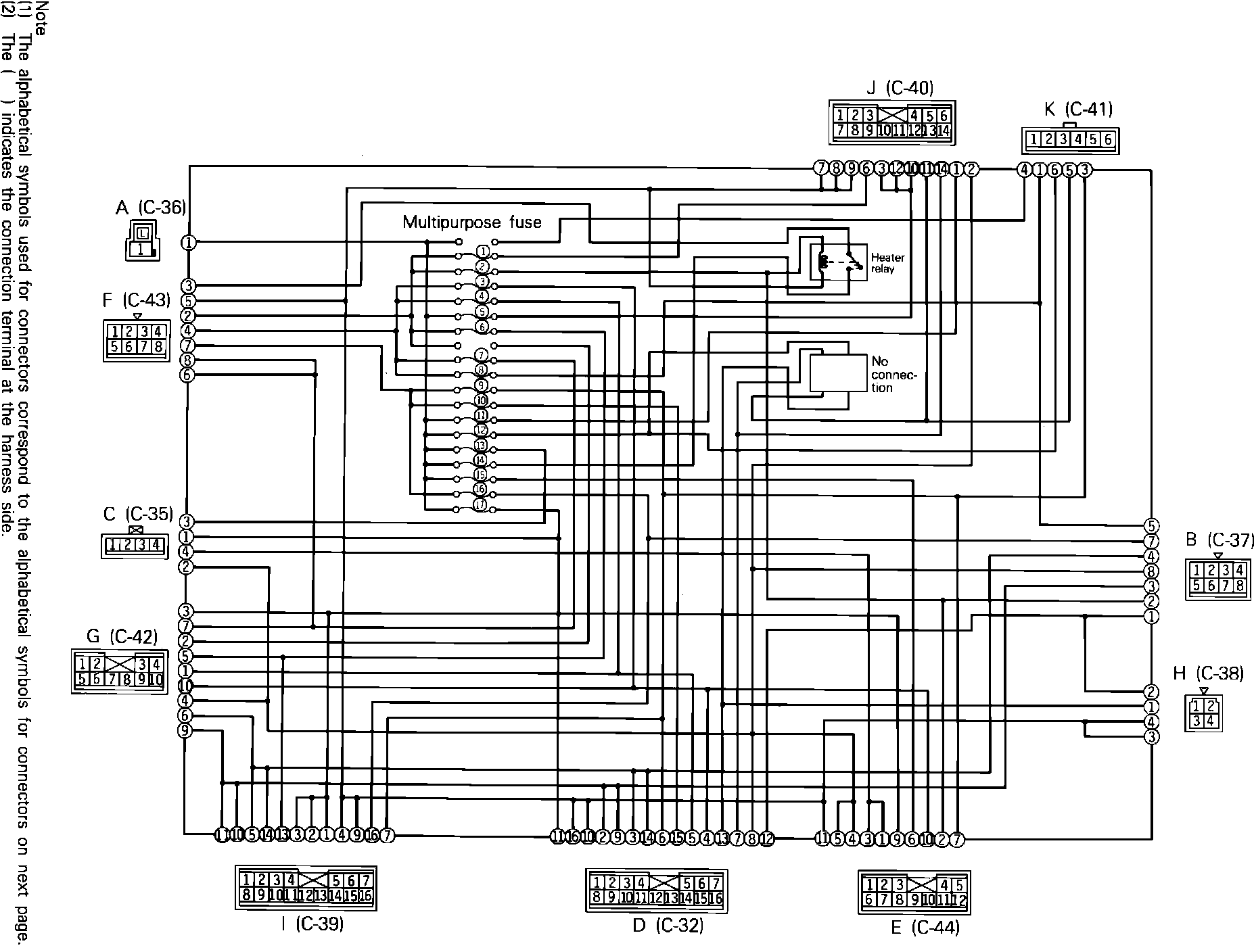

Fuse Block Details: Junction Block (A/T):
