Home >> Mitsubishi >> 1990 >> Galant L4-1997cc 2.0L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Door Locks >> Less Electronic Time/Alarm Control >> Part 2 of 2

Part 2 of 2

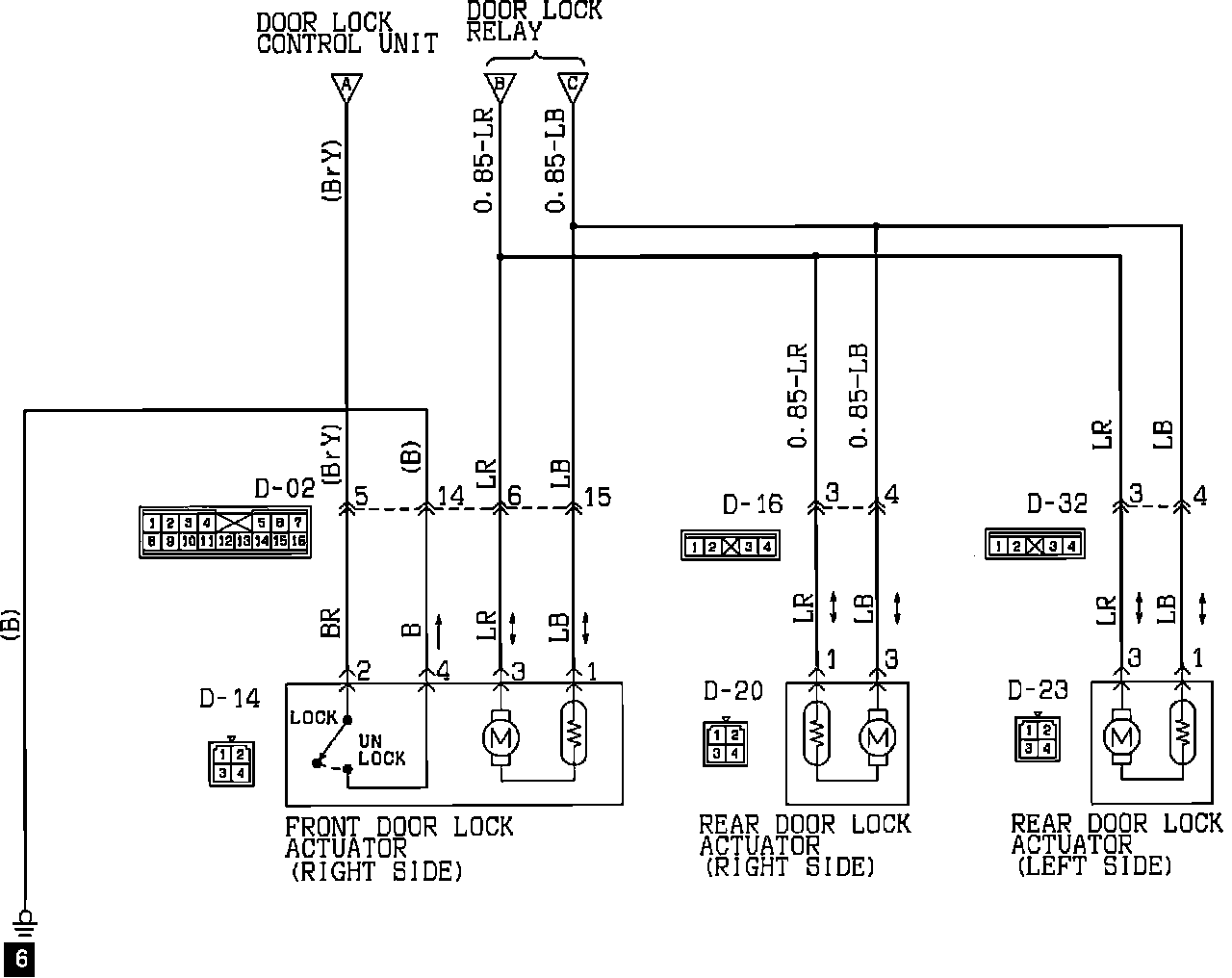

Central Door Locking System. Less ETACS:
