Home >> Mitsubishi >> 1990 >> Galant L4-1997cc 2.0L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Door Locks >> Less Electronic Time/Alarm Control >> Part 1 of 2

Part 1 of 2

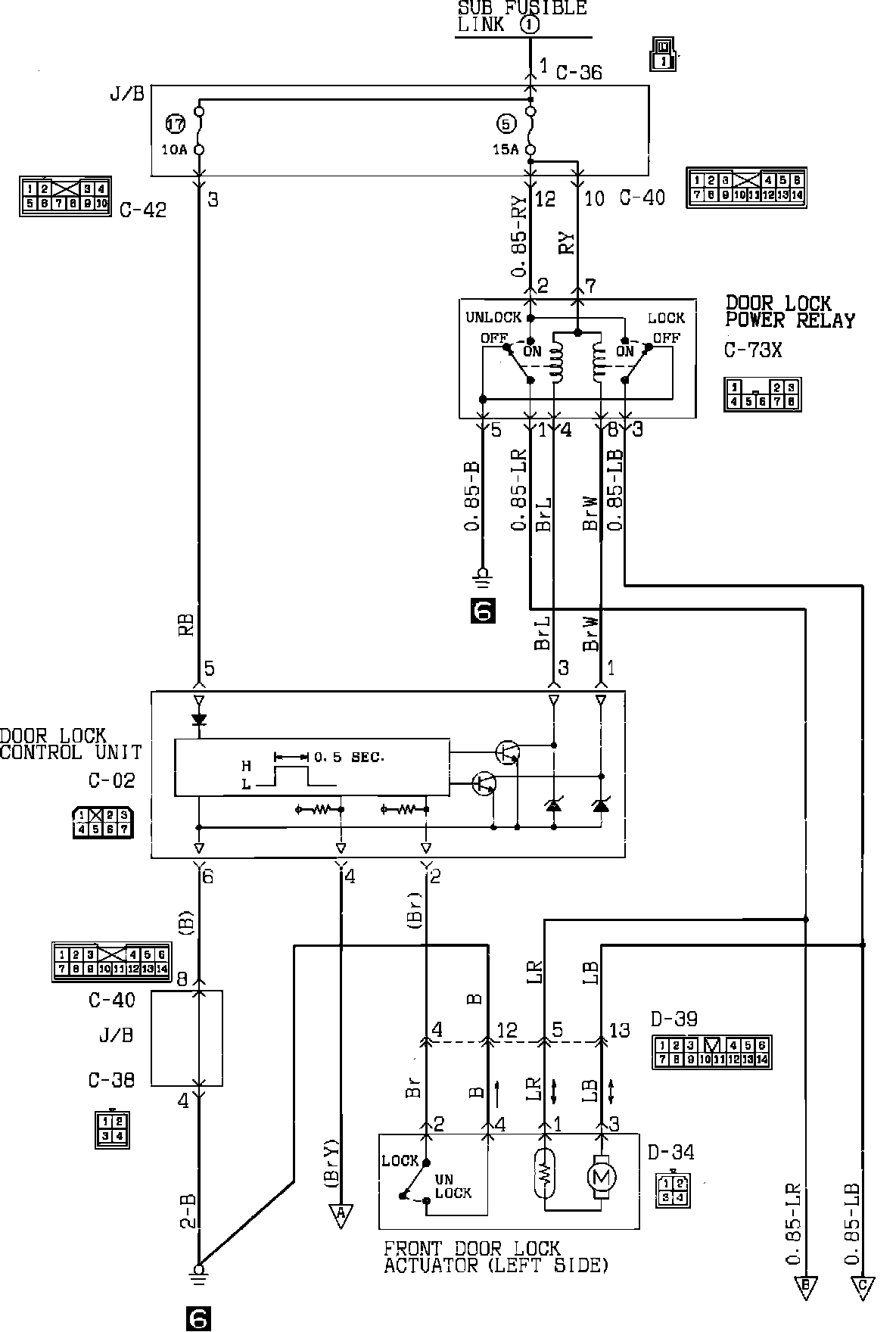

Central Door Locking (Less ETACS):
