Galant L4-1997cc 2.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Dome Lamp
>>
Less Electronic Time/Alarm Control With Door Lamp
Less Electronic Time/Alarm Control With Door Lamp

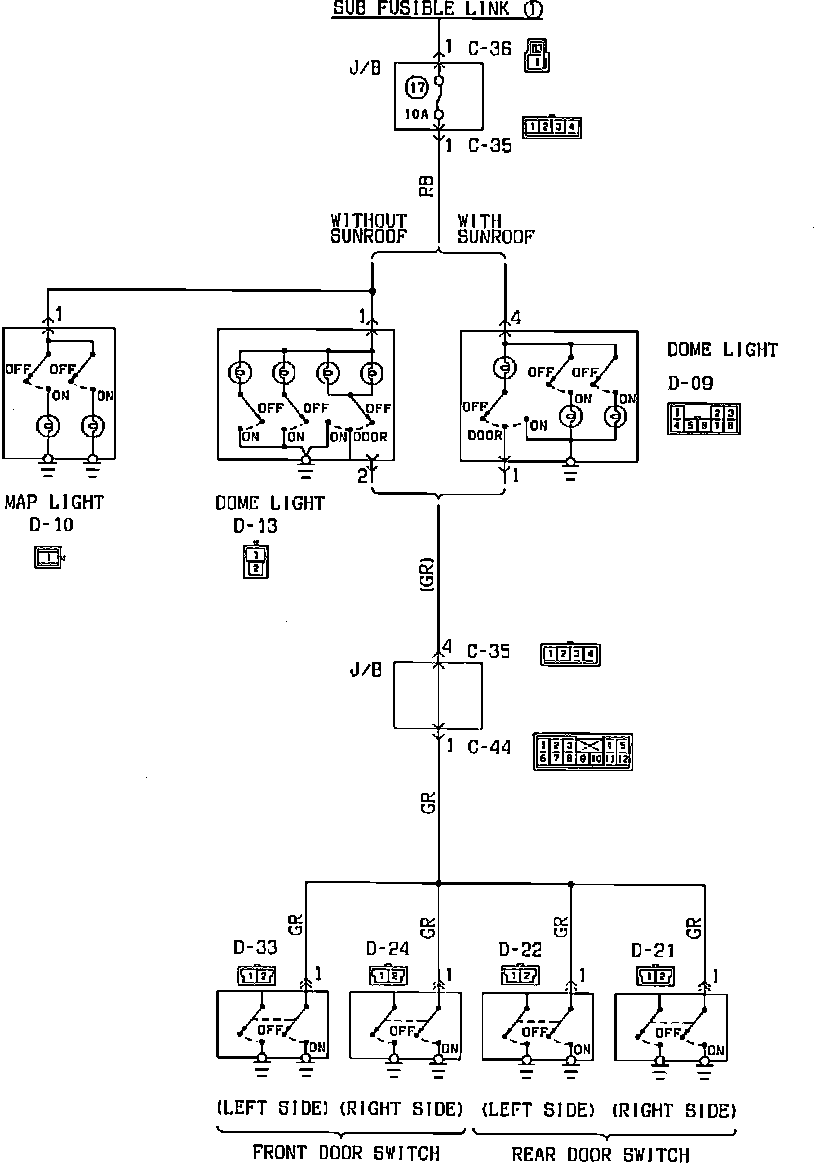

Dome Lamp. Less ETACS W/Door Lamp:
