Dome Lamp
>>
Less Electronic Time/Alarm Control & Door Lamp
Less Electronic Time/Alarm Control & Door Lamp

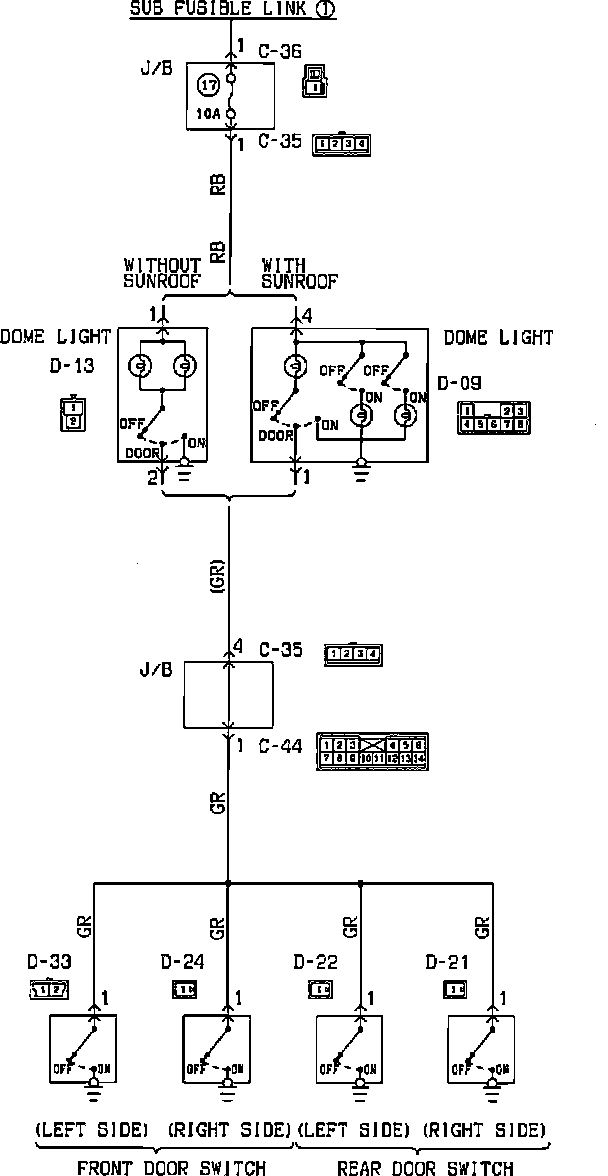

Dome Lamp. Less ETACS & Door Lamp:
