Antilock Brakes / Traction Control Systems
>>
System Diagram
System Diagram

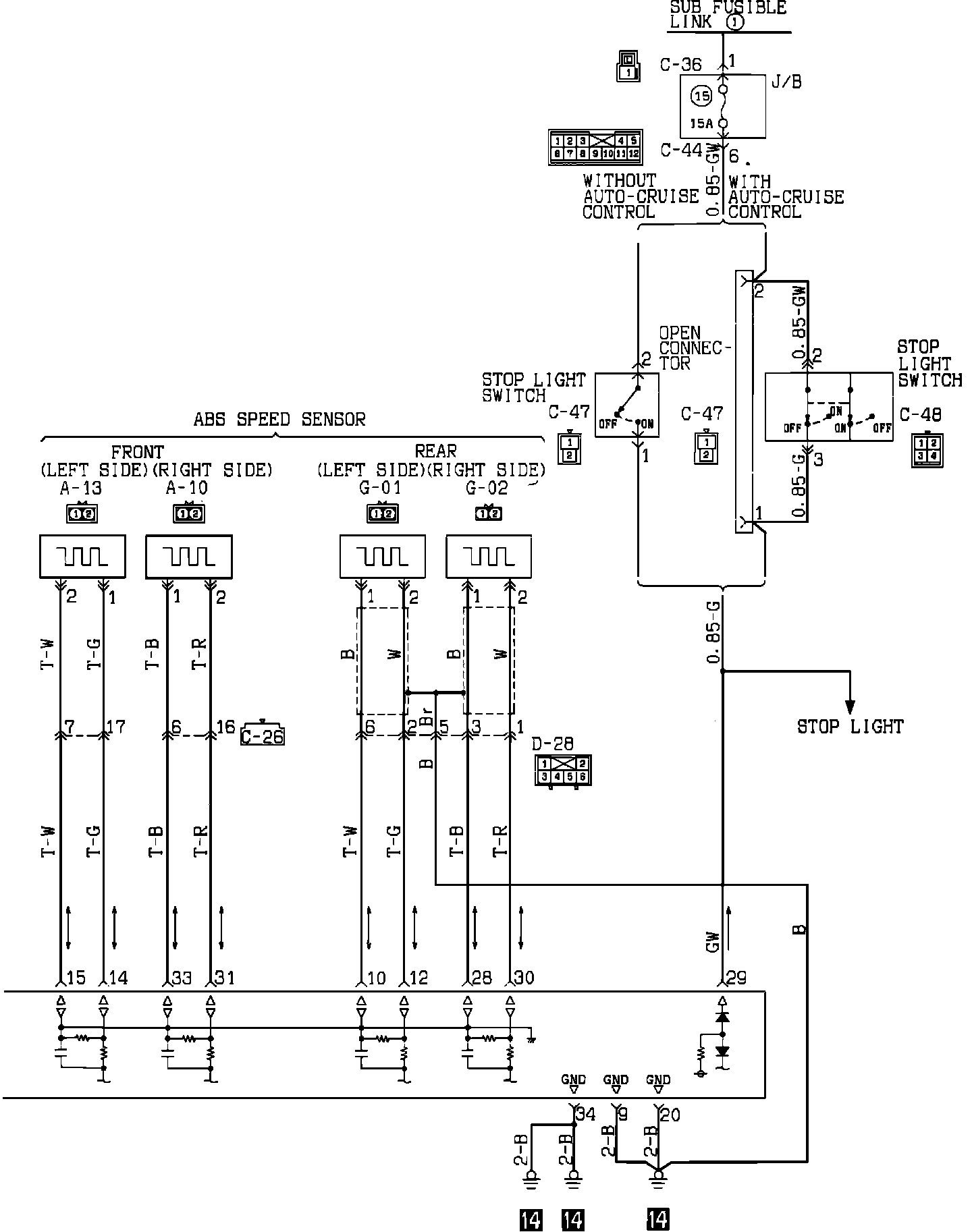

Anti-Lock brake System: 2WD:
Anti-Lock Braking System. 2WD:
Anti-Lock Braking System. 4WD:
Anti-Lock Braking System. 4WD:
