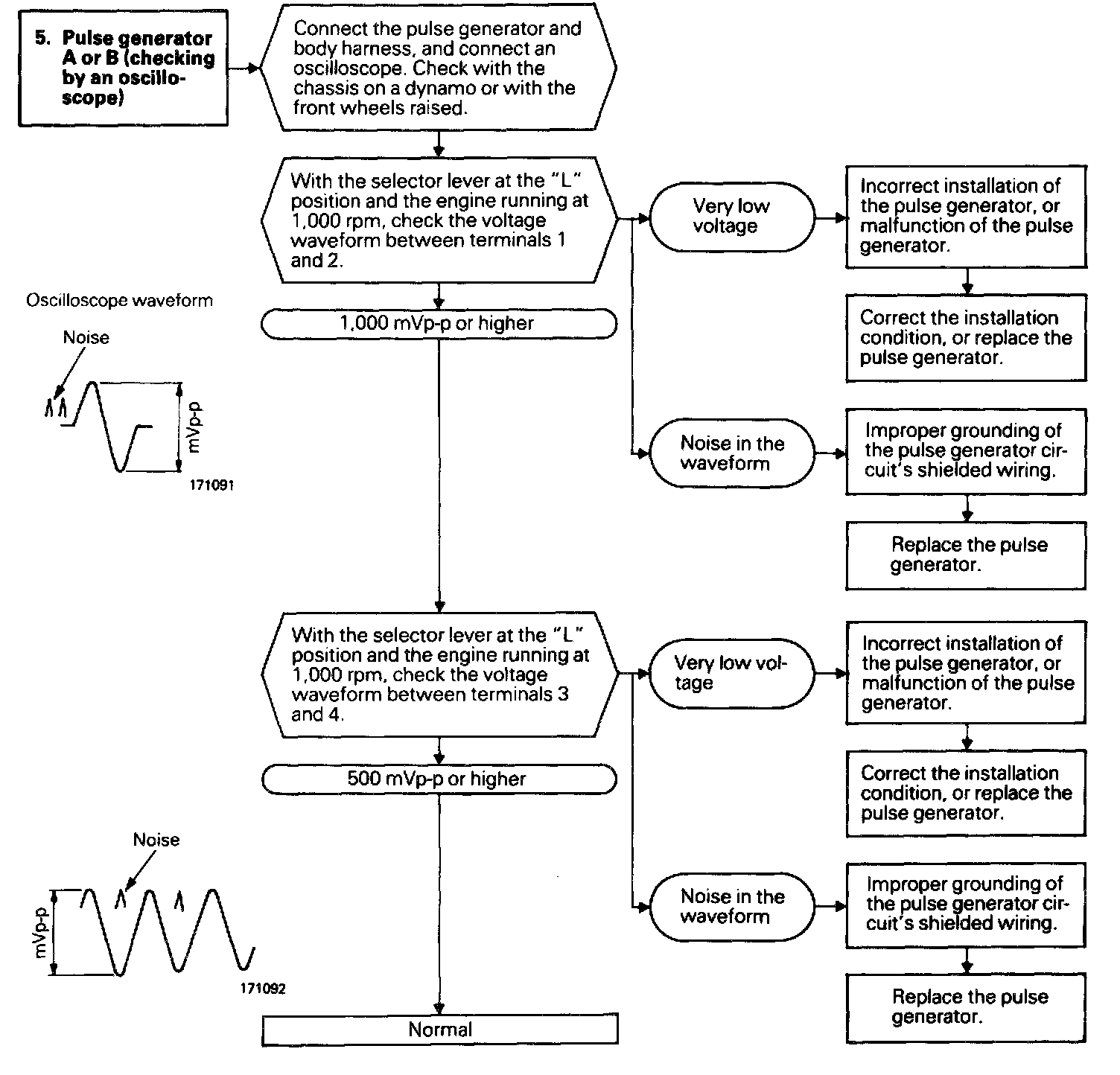

5 Pulse Generator A or B (Checking By an Oscilloscope)
5 Pulse Generator A or B (Checking By an Oscilloscope)
