Home
>>
Mitsubishi
>>
1990
>>
Eclipse AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Federal Models
Federal Models

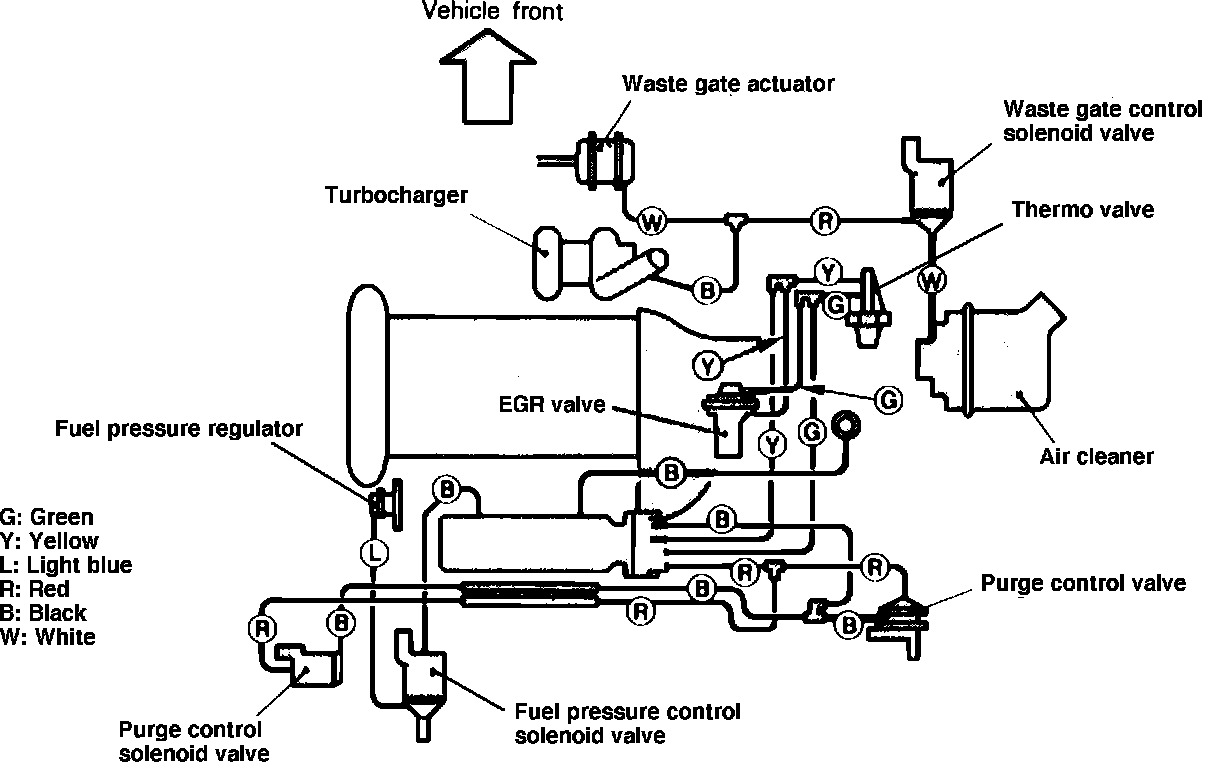

Vacuum Hose Routing Diagram:
