Home
>>
Mitsubishi
>>
1990
>>
Eclipse AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

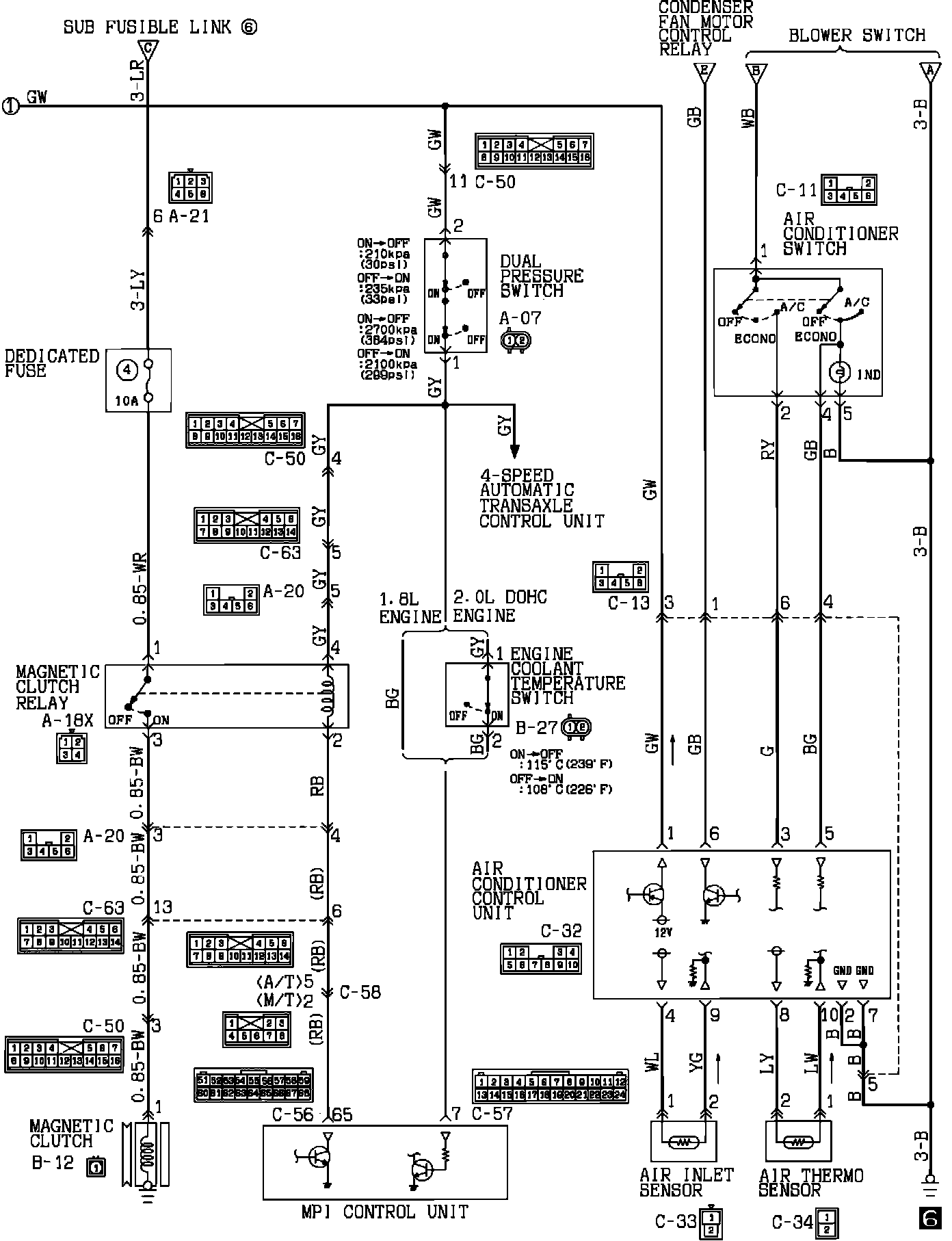

Air Conditioning System:

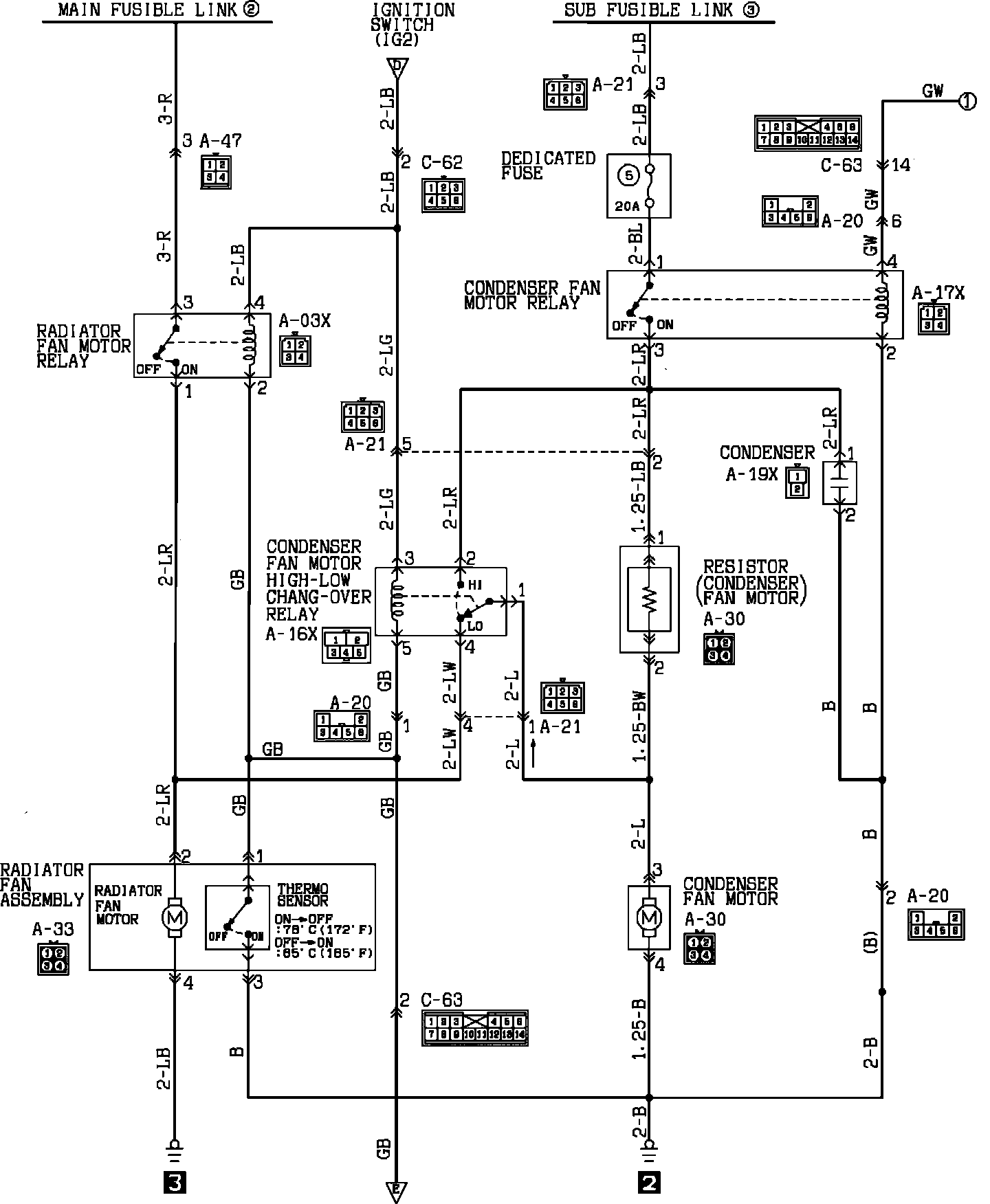

Air Conditioning System:
Air Conditioning System:

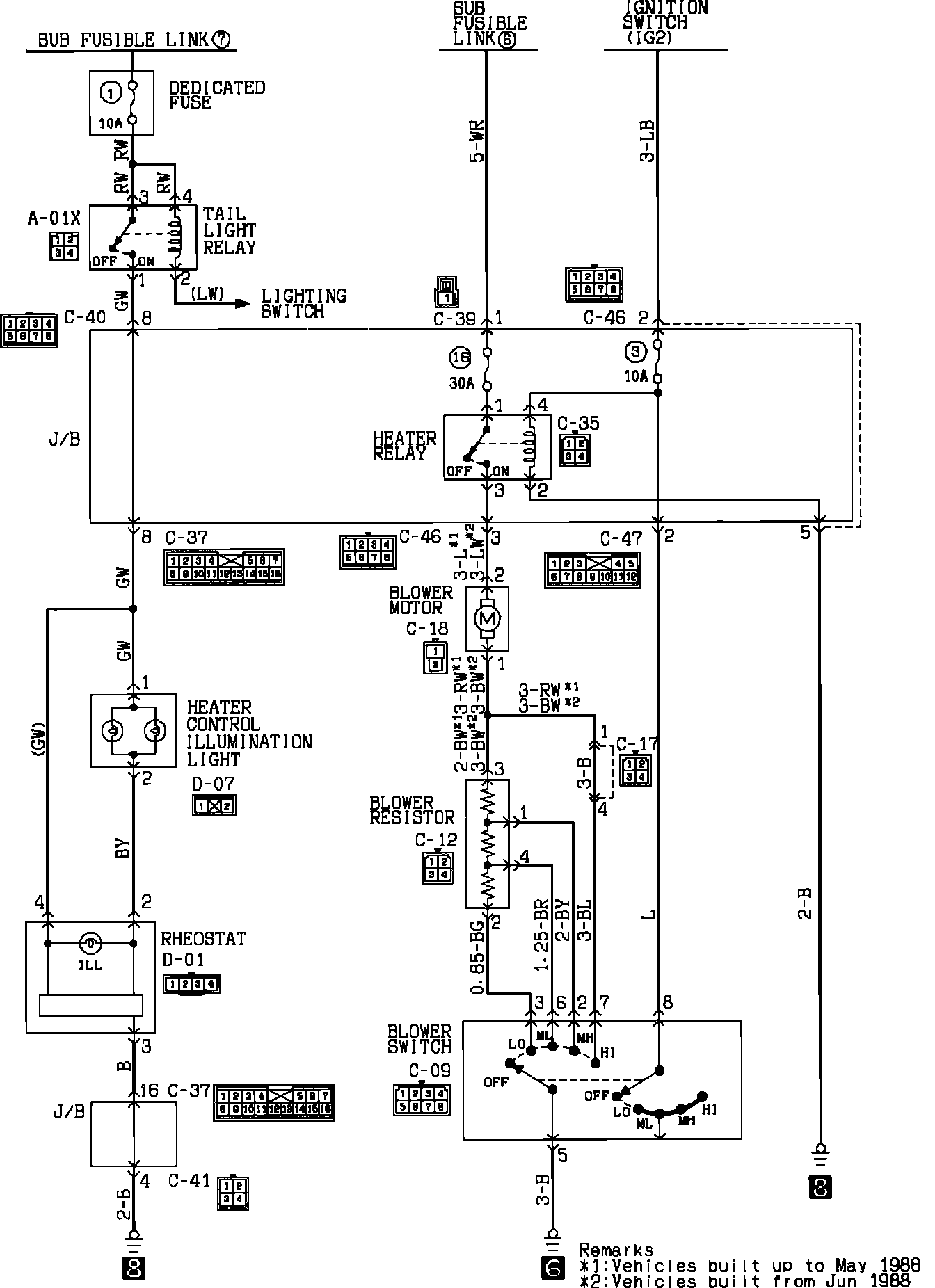

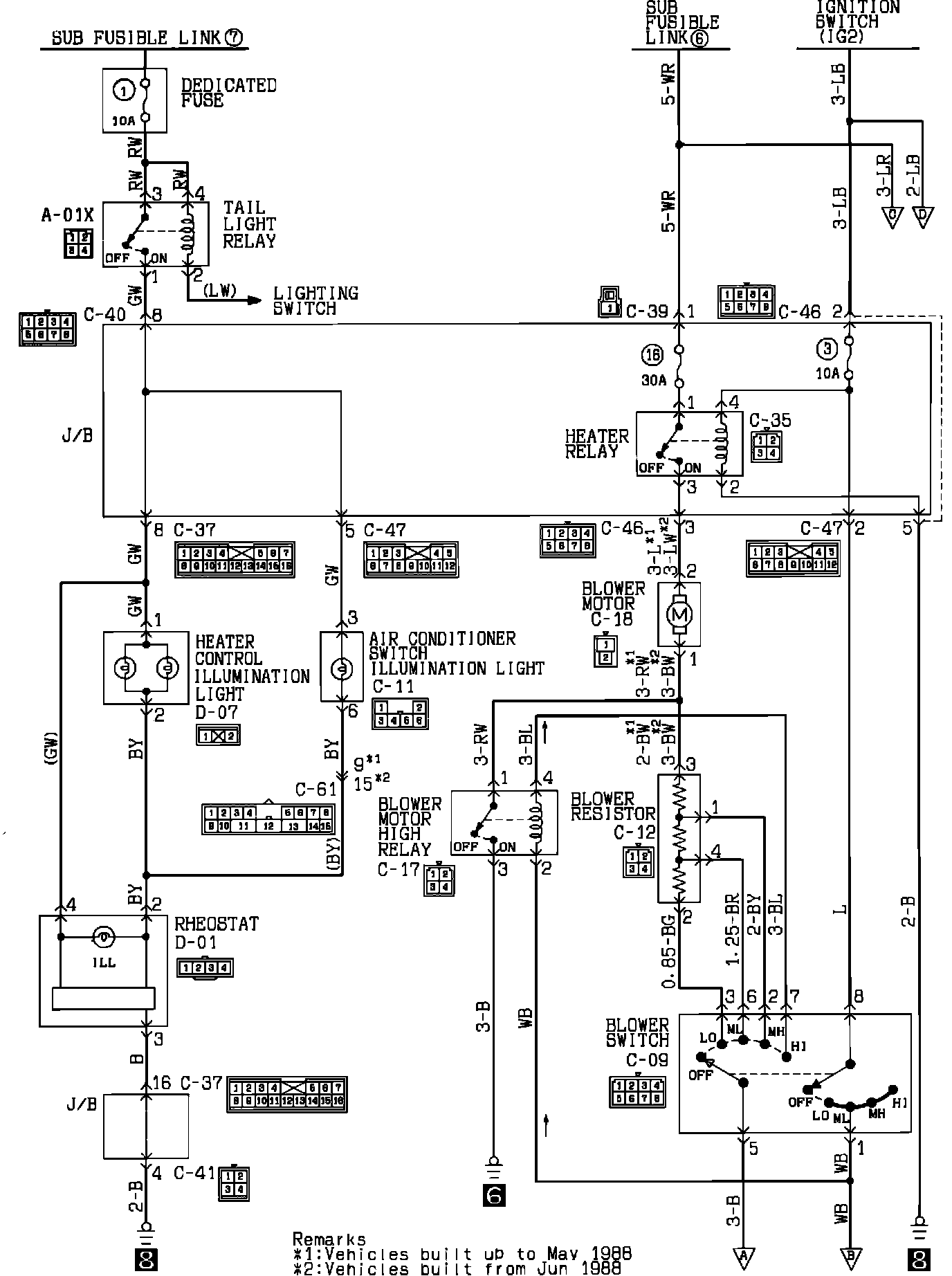

Heater:
