Home
>>
Mitsubishi
>>
1990
>>
Eclipse AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
>>
With Theft Alarm
With Theft Alarm

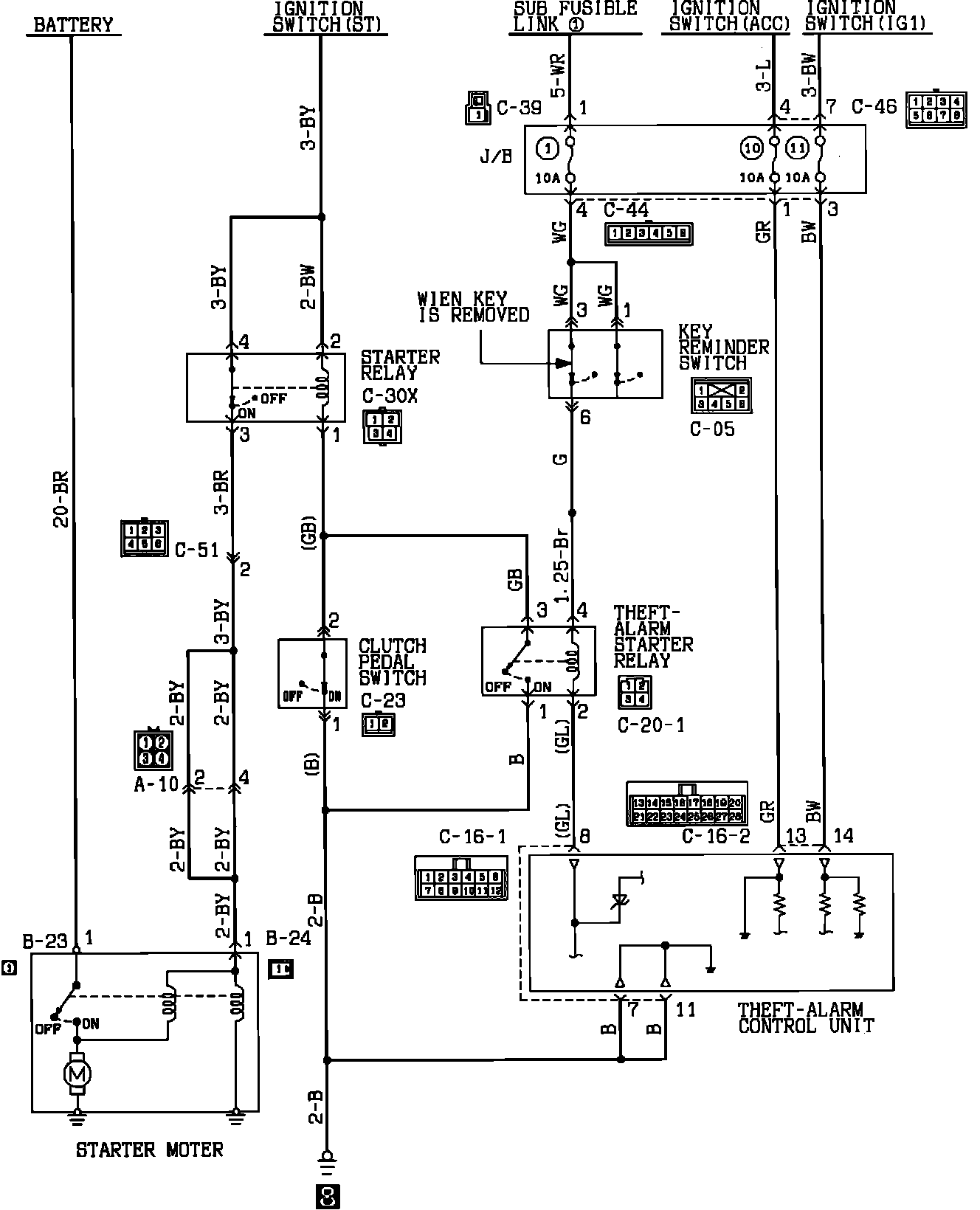

Starting System (With Theft Alarm):
