Mitsubishi
>>
1990
>>
Eclipse AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seat Belt Systems
>>
Part 2 of 2
Part 2 of 2

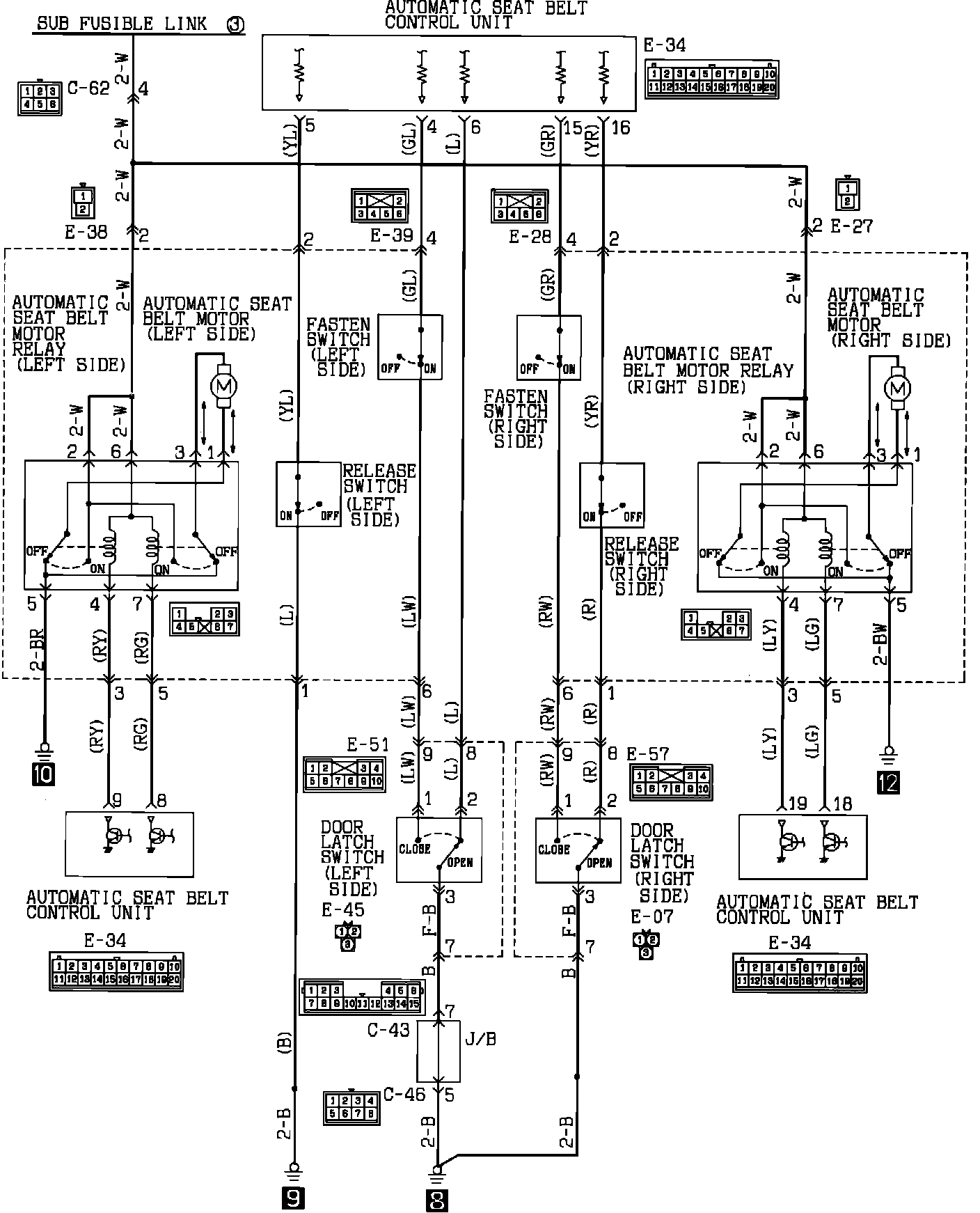

Automatic Seat Belt:
