Eclipse AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Computers and Control Systems
>>
Automatic Transaxle
Automatic Transaxle

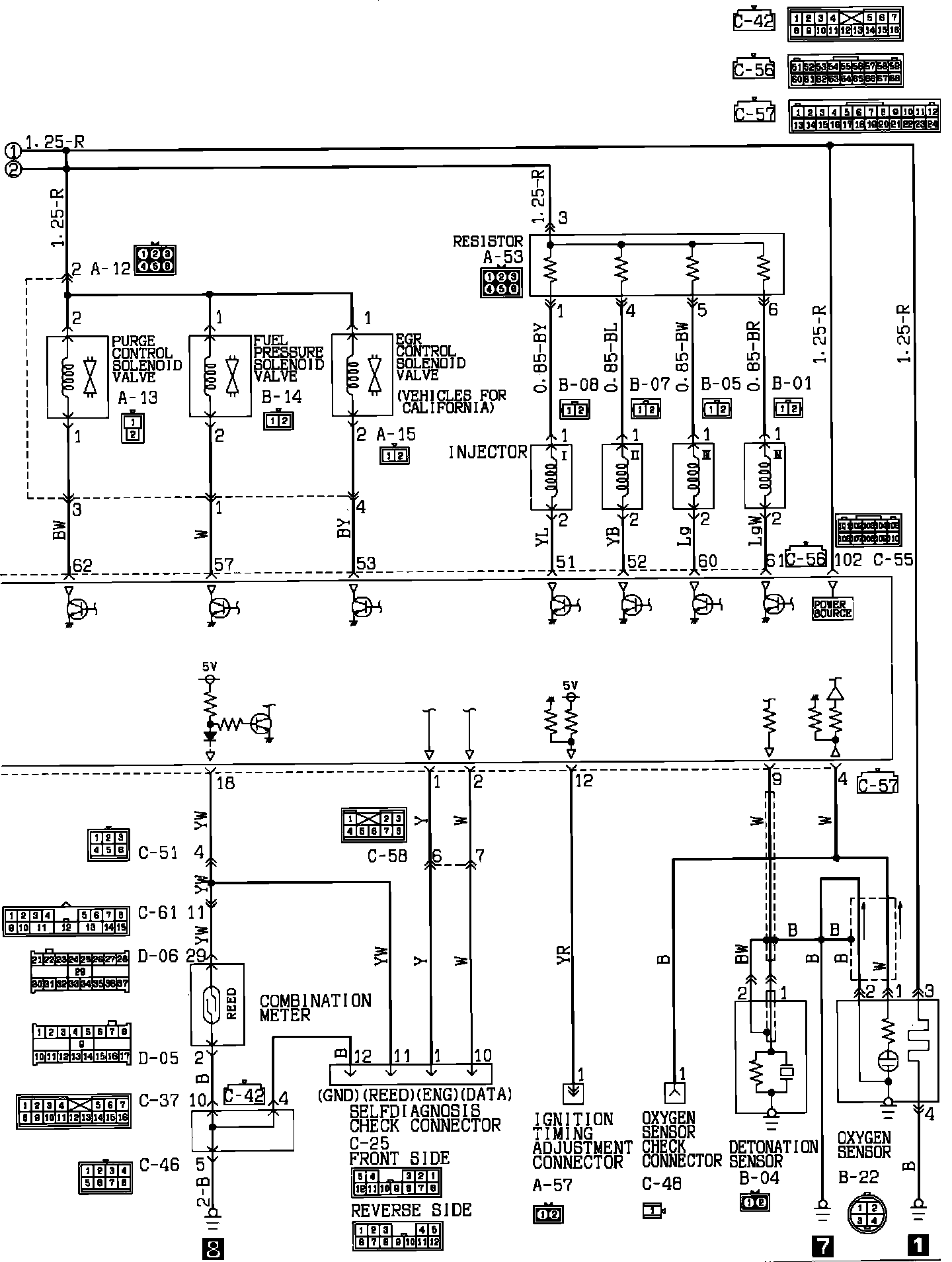

Fuel Injection (Engine With Turbo):
Fuel Injection (Engine With Turbo):
Fuel Injection (Engine With Turbo):
Fuel Injection (Engine With Turbo):
Fuel Injection (Engine With Turbo):
