Home
>>
Mitsubishi
>>
1990
>>
Eclipse AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
>>

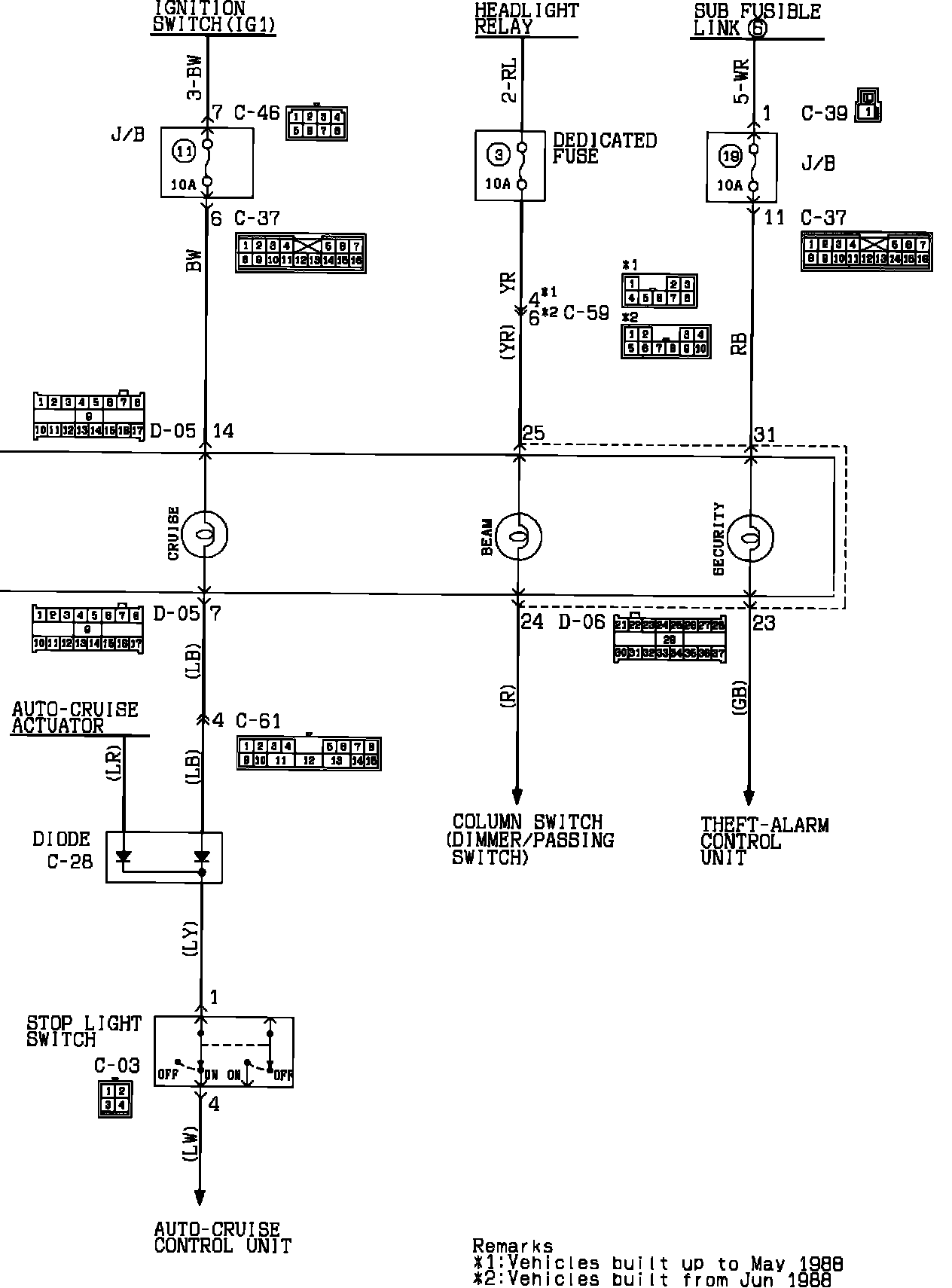

Security Lamp/Indicator
Security Lamp/Indicator
Instrument Panel, Indicator Lamps:
