Home
>>
Mitsubishi
>>
1990
>>
Eclipse AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
ABS Light
>>
Testing and Inspection
>>
Diagnostic Flow Chart C
Diagnostic Flow Chart C

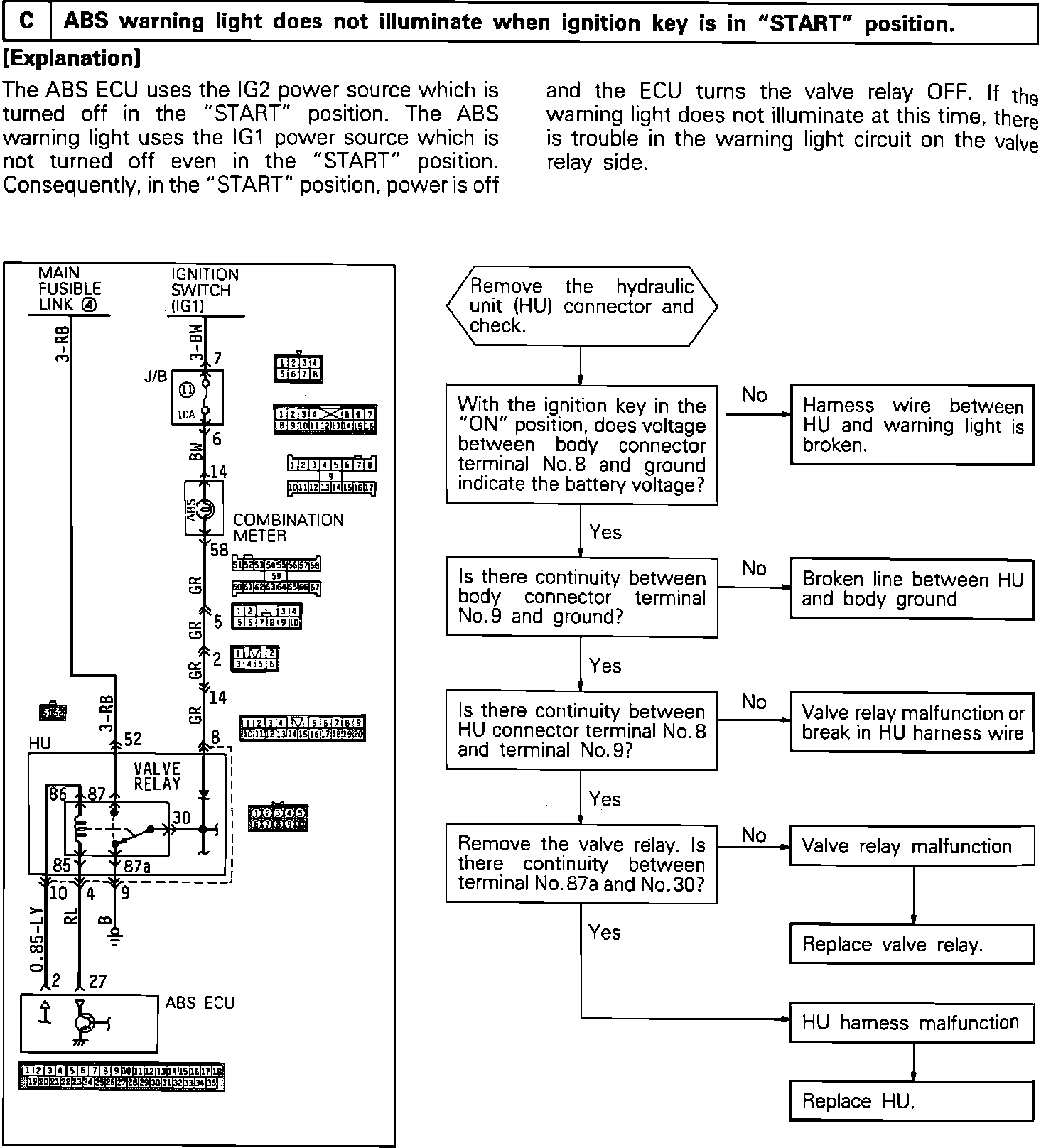

Fig. 26 Diagnostic Chart C:
