ECS Height Sensor Rod - Specification Change

89mitsubishi10

SUBJECT:
ECS HEIGHT SENSOR ROD

SPECIFICATION CHANGE
NO. TSB-89-33B-002

DATE November, 1989

MODEL 1988 Galant Sigma, 1989 Sigma V-6
TSB Revision 89-33B-002









PURPOSE

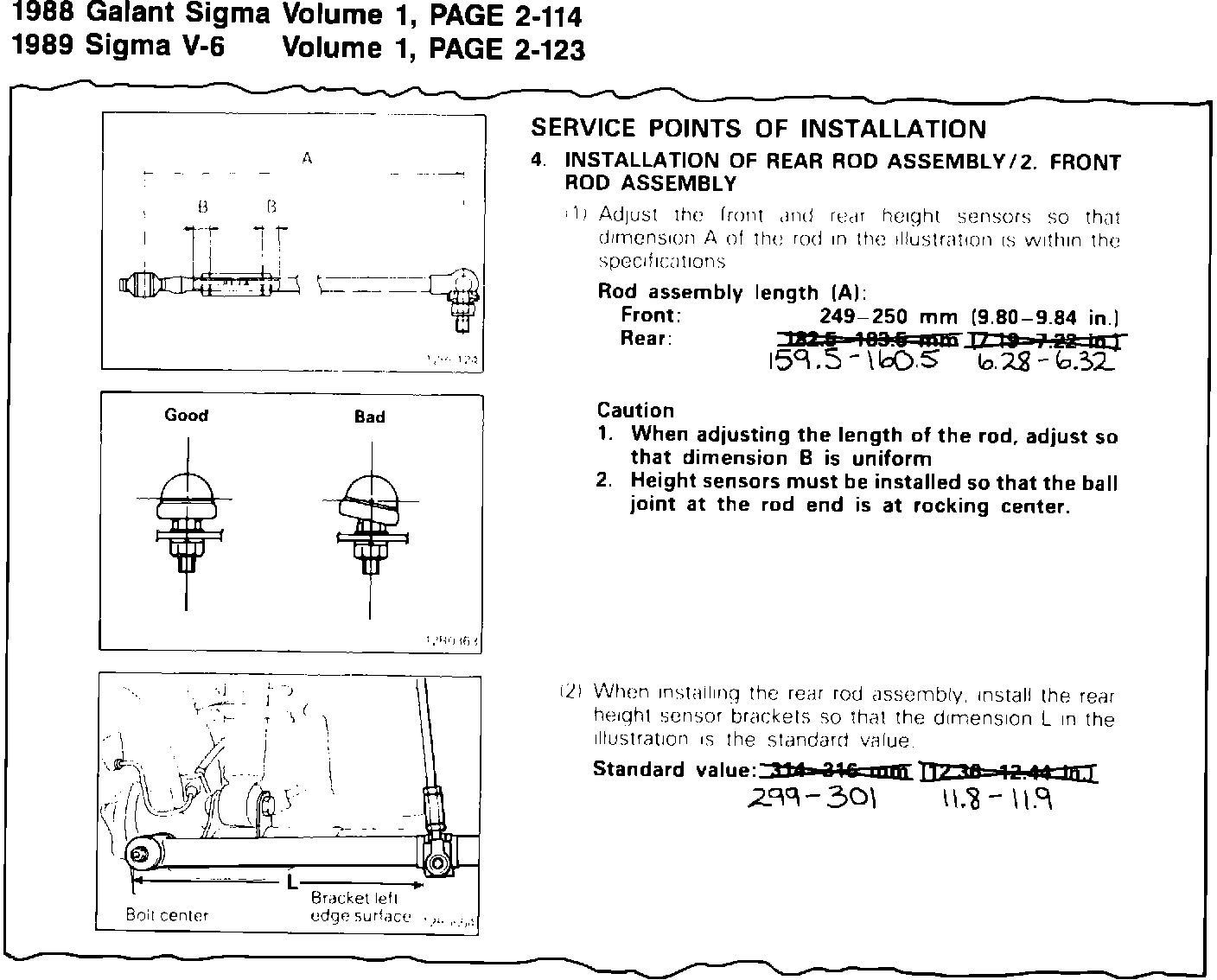

The rear height sensor rod installation dimension has been changed from 314-316 mm (12.36-12.44) to 299-301 mm (11.8-11.9) and the front sensor rod installation dimension from 182.5-183.5 mm (7.19-7.22) to 159.5 to 160.5 mm (6.28-6.32). This bulletin shows typical service manual updates. Please make the indicated service manual updates and write this Service Bulletin number in the TSB revision box.

AFFECTED MANUALS

MANUAL PAGES

1988 Galant Sigma Volume 1 2-38, 2-85, 2-114

1989 Sigma V-6 Volume 1 2-32, 2-96, 2-123
