M/T Technical Data

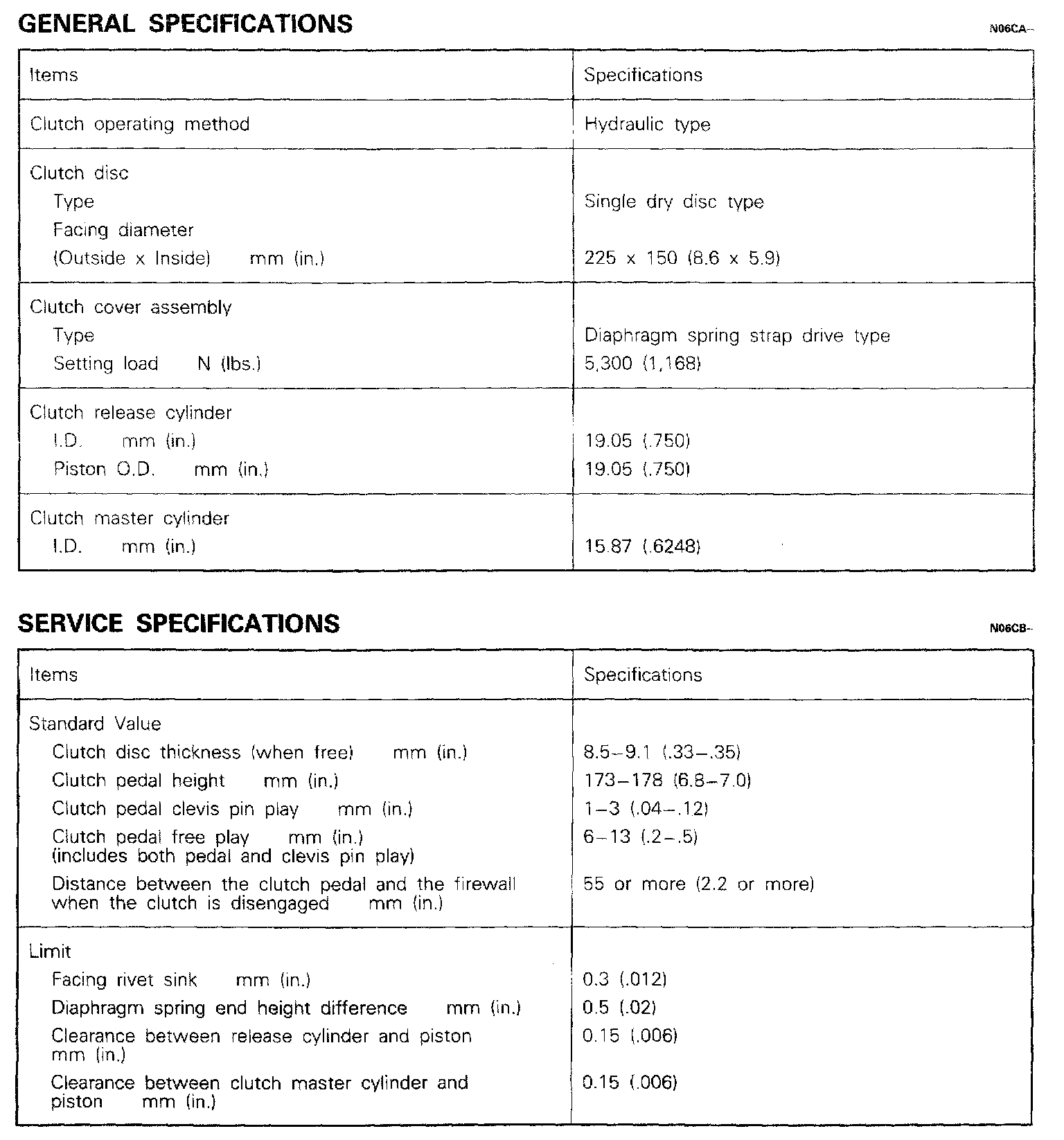

KM210 5-spd M/T, Clutch Dimensions:





KM210 5-spd M/T, Gear Ratios / Standard Values & Limit:

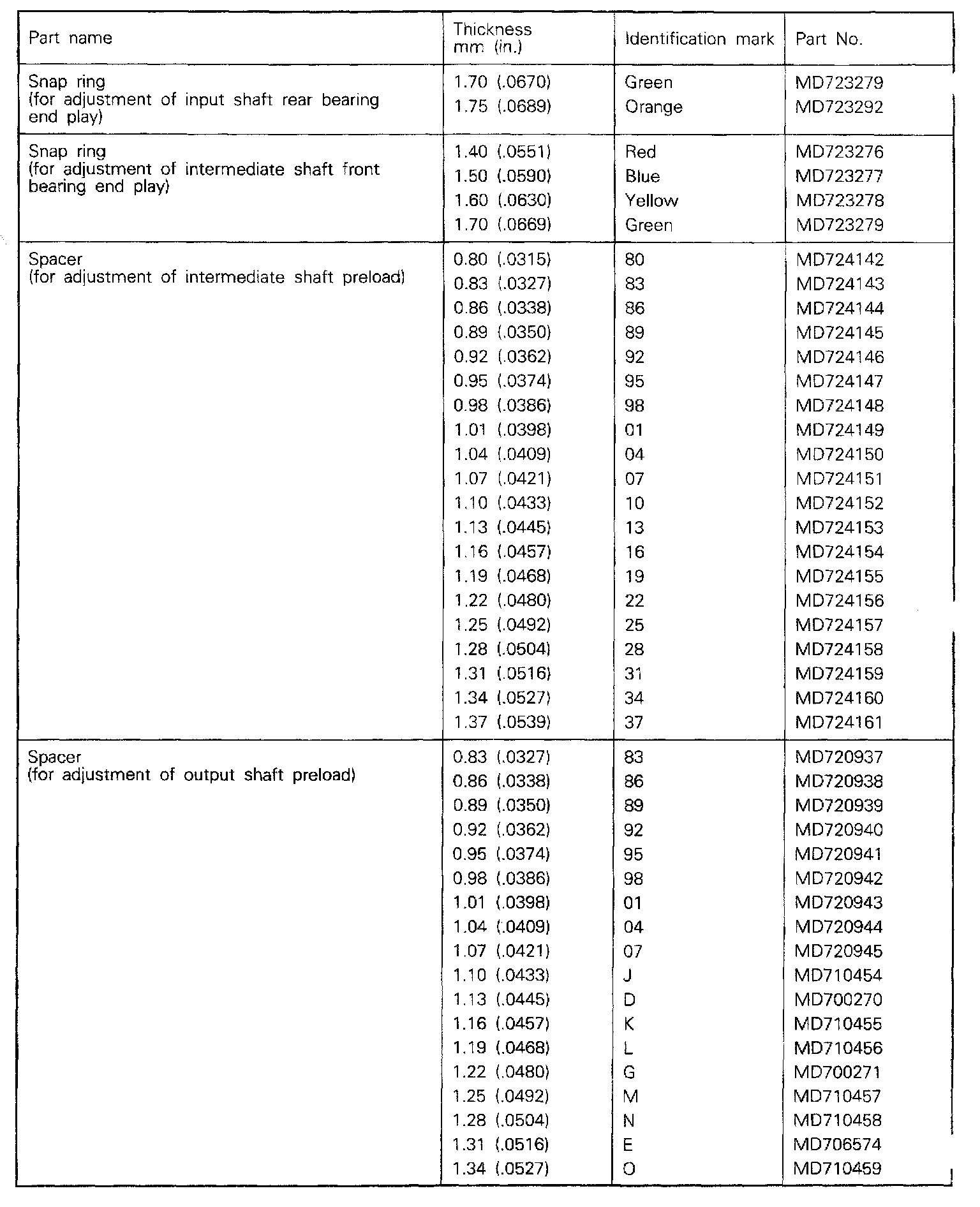

KM210 5-spd M/T, Input Shaft Front & Rear Bearing End Play:





KM210 5-spd M/T, Input, Intermediate & Output Shaft End Play/Preload:

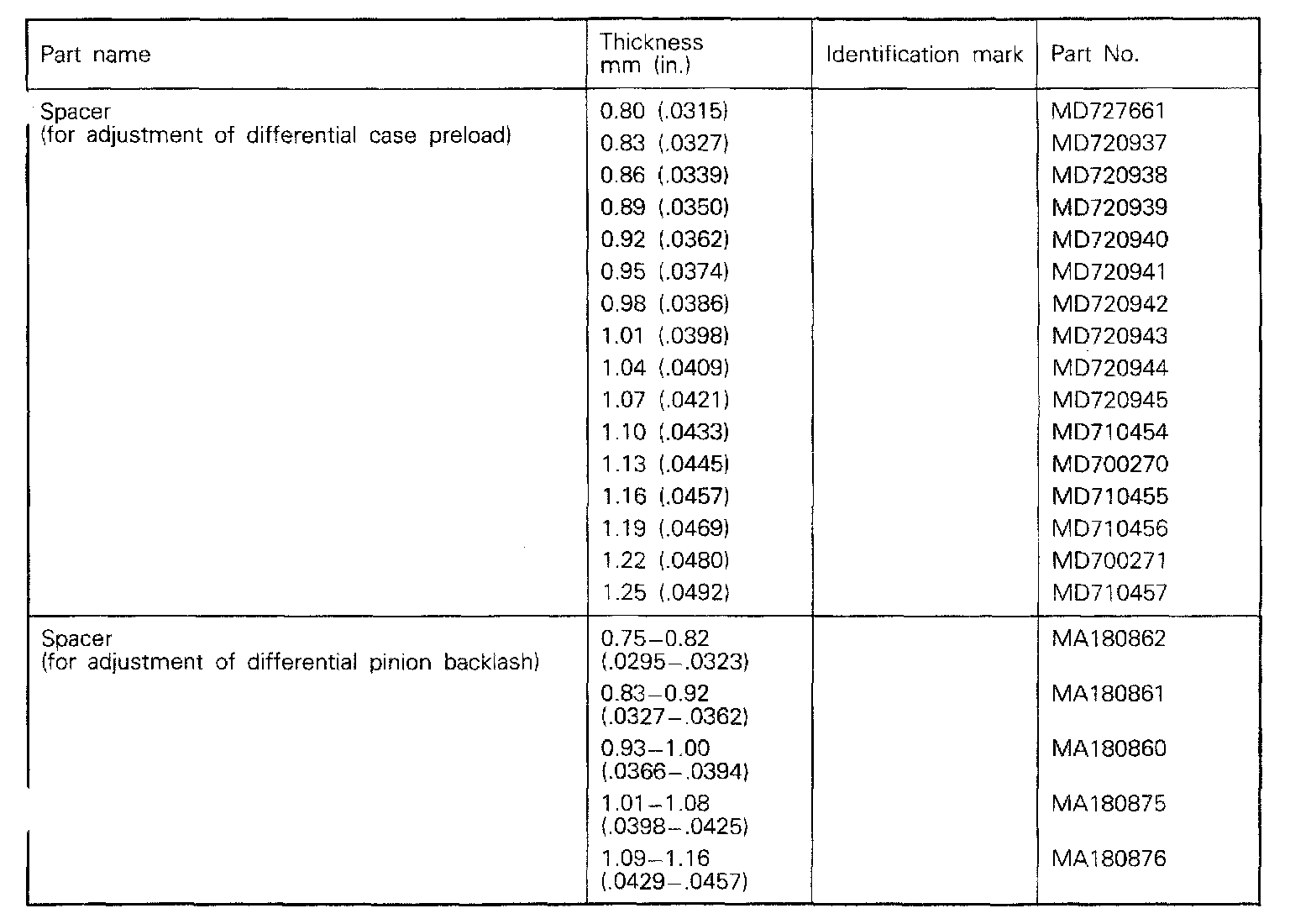

KM210 5-spd M/T, Differential Case & Pinion Backlash:
