A/T Technical Data

KM177 4-spd A/T, Gear Ratio:

KM177 4-spd A/T, Standard Value End Play & Spring Dimension:

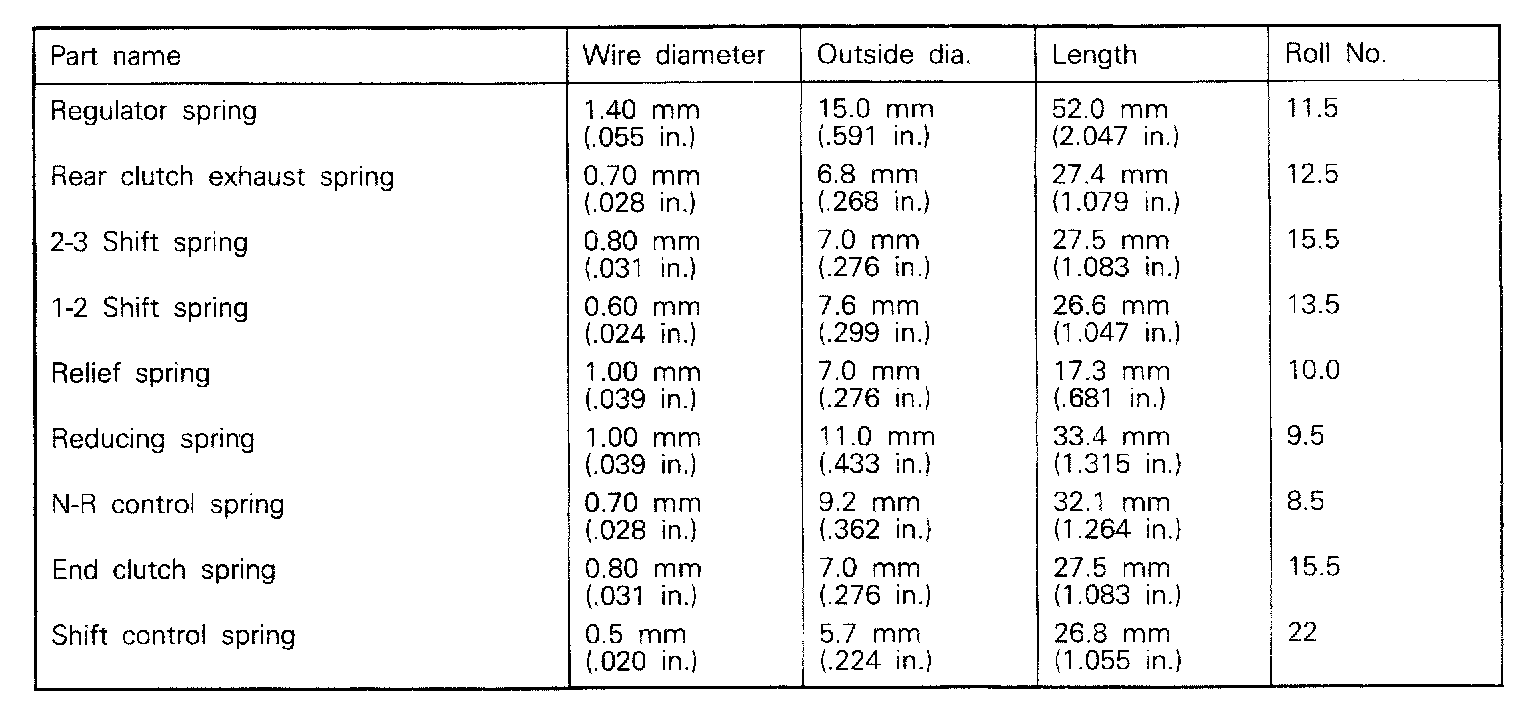

KM177 4-spd A/T, Spring Dimensions:

KM177 4-spd A/T, Input, Transfer Shafts End Play:

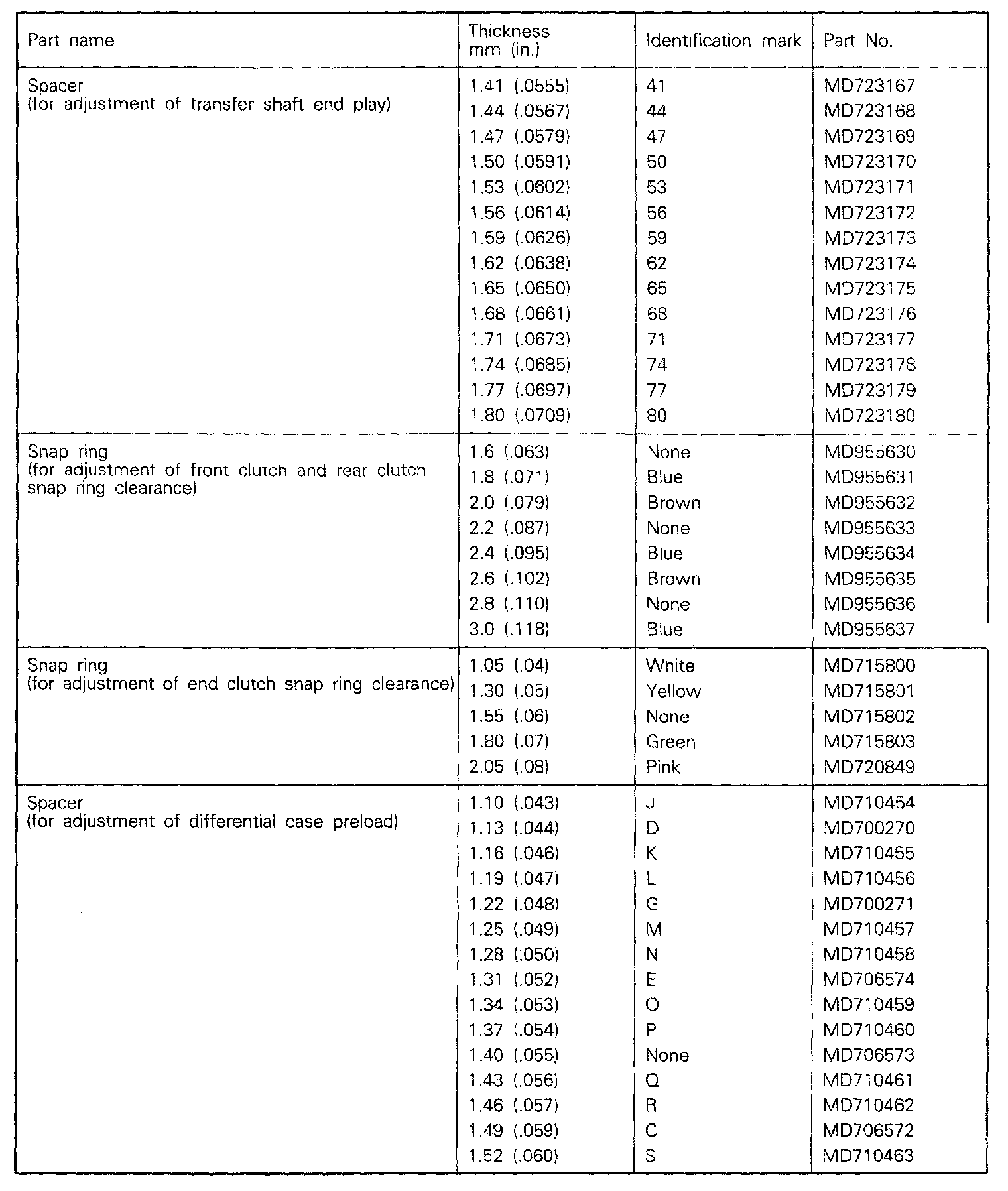

KM177 4-spd A/T, Transfer Shaft, Clutch Clearance & Differential Preload:

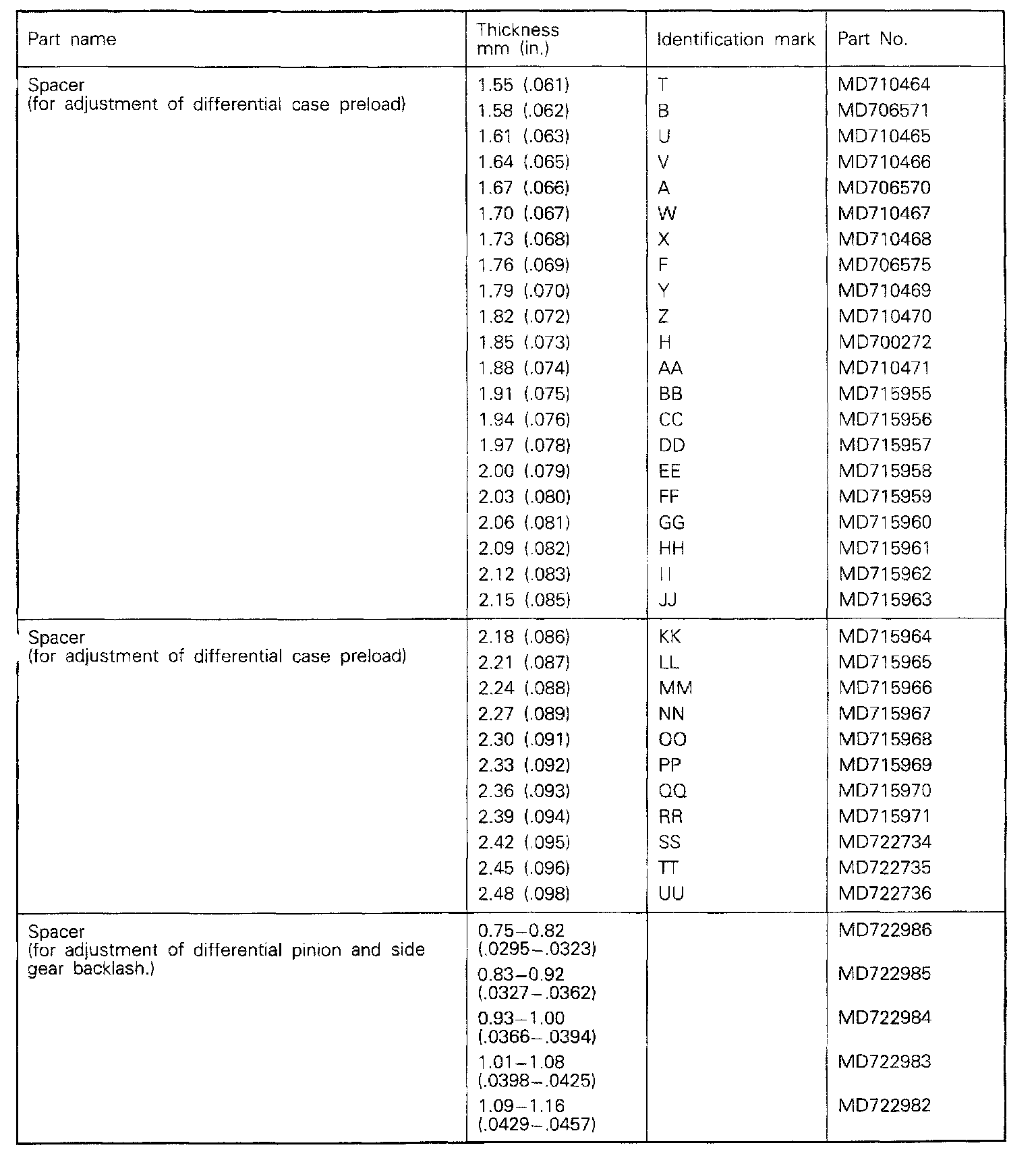

KM177 4-spd A/T, Different Case Preload & Pinion/Side Gear Backlash:
