Fuel Filter: Locations
ACCELERATOR CABLE ADJUSTMENTAccelerator Cable Adjustment:
ELECTRONIC CONTROL UNIT

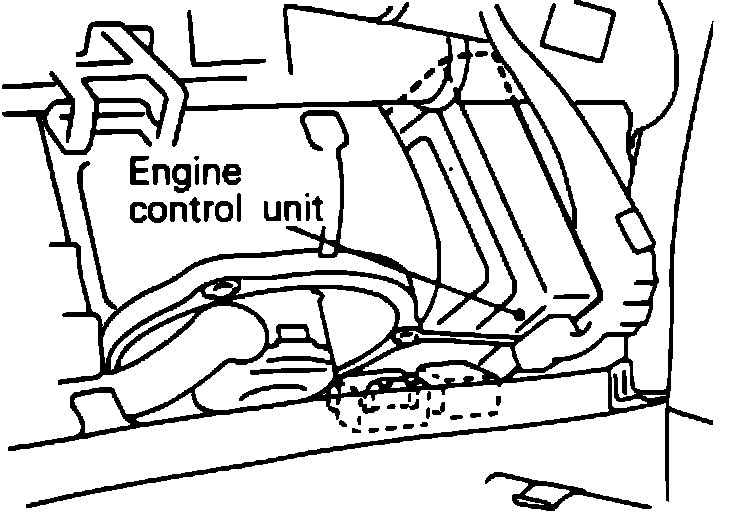

Control Unit Location:
The electronic (ECU) control unit is located RH of the vehicle, behind the dash bolster, next to the right kick panel.
EGR VACUUM SOURCE
EGR Control Vacuum Source:
The EGR vacuum source is located on the throttle body.
FUEL FILTER (IN-LINE)
In-line Fuel Filter Location:
The In-line fuel filter is located on the firewall.
FUEL PRESSURE REGULATOR

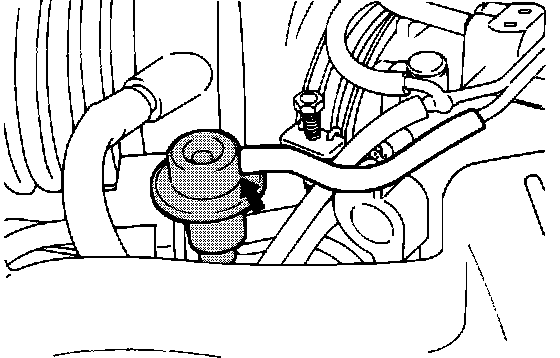

Fuel Pressure Regulator And Vacuum Control Line:
The Fuel pressure regulator is mounted on the fuel rail.
FUEL PUMP

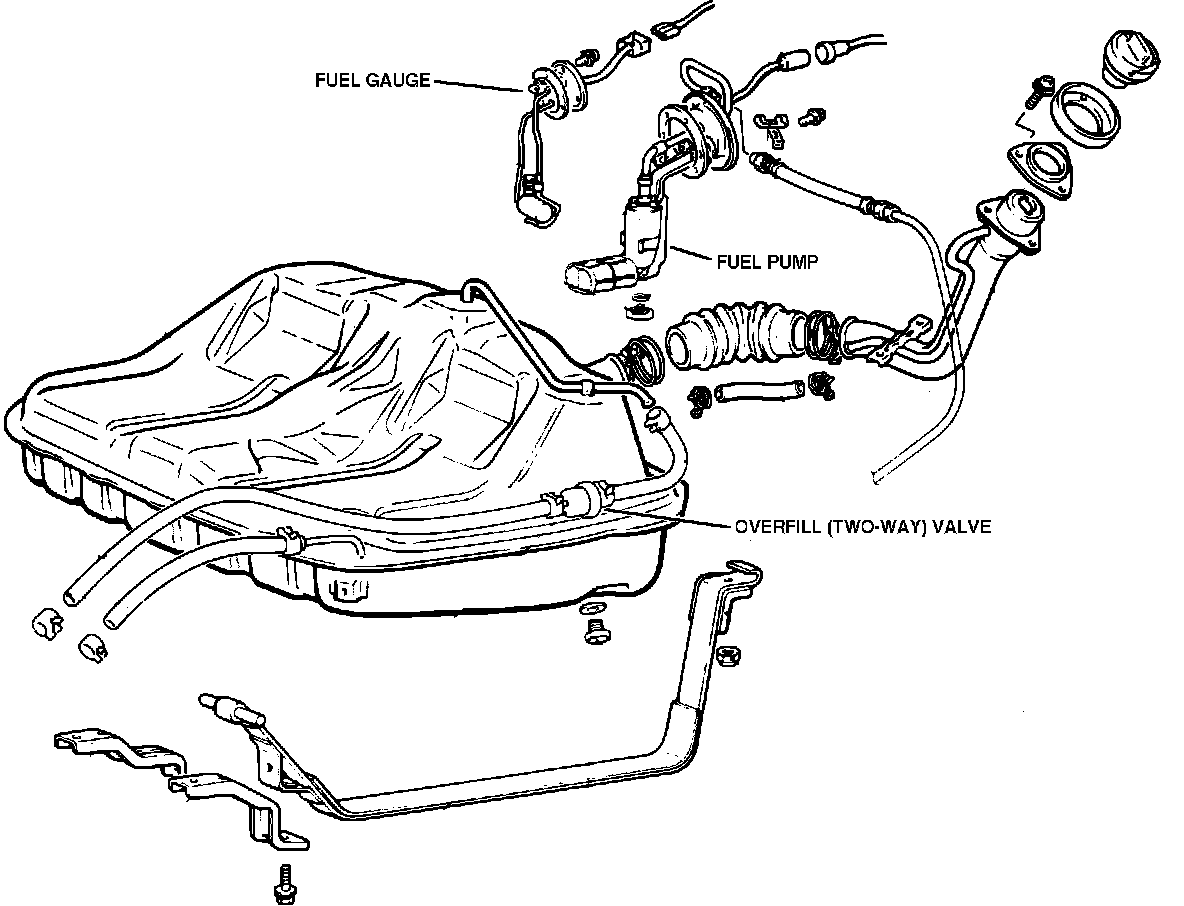

Fuel Tank And Components:
The fuel pump is located inside the fuel tank mounted on the back wall.
FUEL PUMP DRIVE TERMINAL
Fuel Pump Drive Connector Location:
The fuel pump drive terminal (shown hooked-up) is located in the left rear corner of the engine compartment, next to the windshield wiper motor.
FUEL RAIL

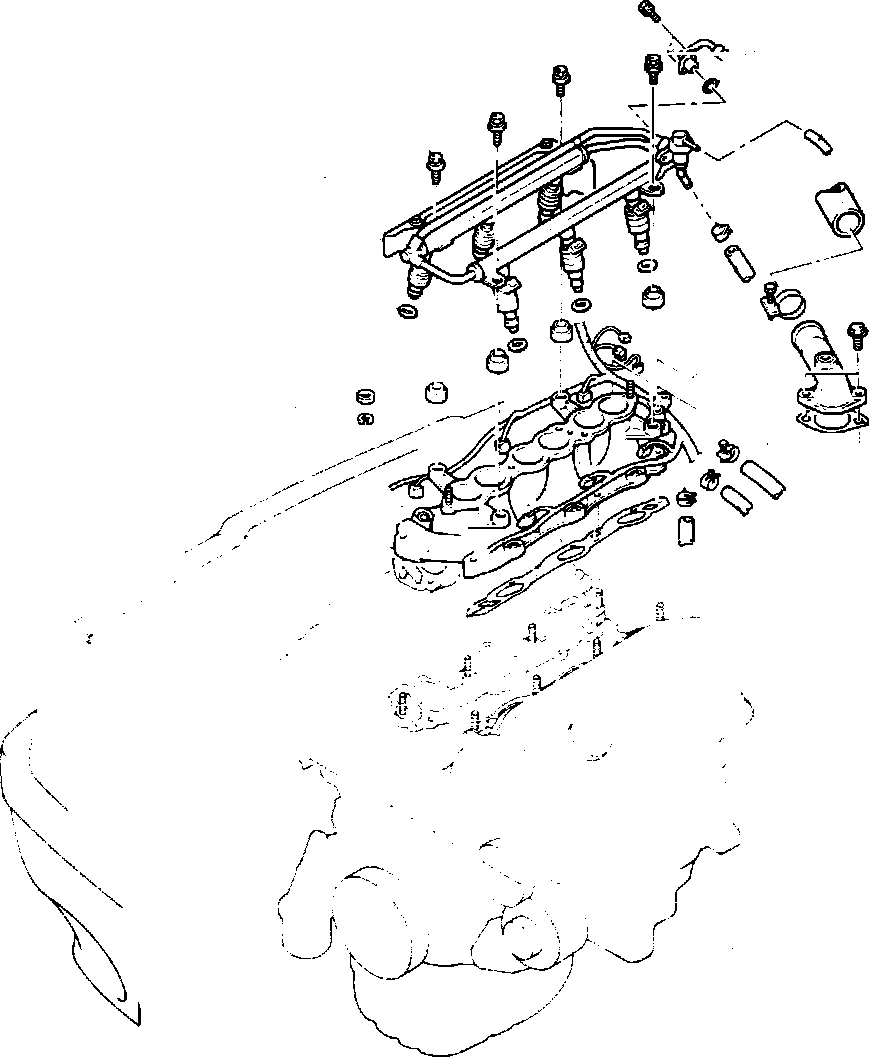

Injectors, fuel Rail And Components:
The fuel rail is mounted to the intake manifold.

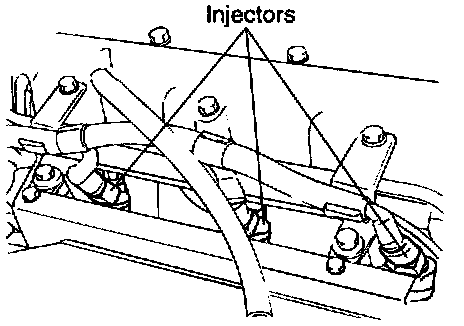

INJECTORS
The injectors are mounted between the fuel rail and the intake manifold.
OVERFILL LIMITER (TWO-WAY VALVE)
Overfill Limiter Removal:
The overfill limiter is mounted in-line, in the vapor line, on the LH side of the fuel tank.
PURGE HOSE VACUUM SOURCE
Purge Hose Vacuum Source:
The Purge hose vacuum source is located on the throttle body.
ROLLOVER (FUEL CHECK) VALVE

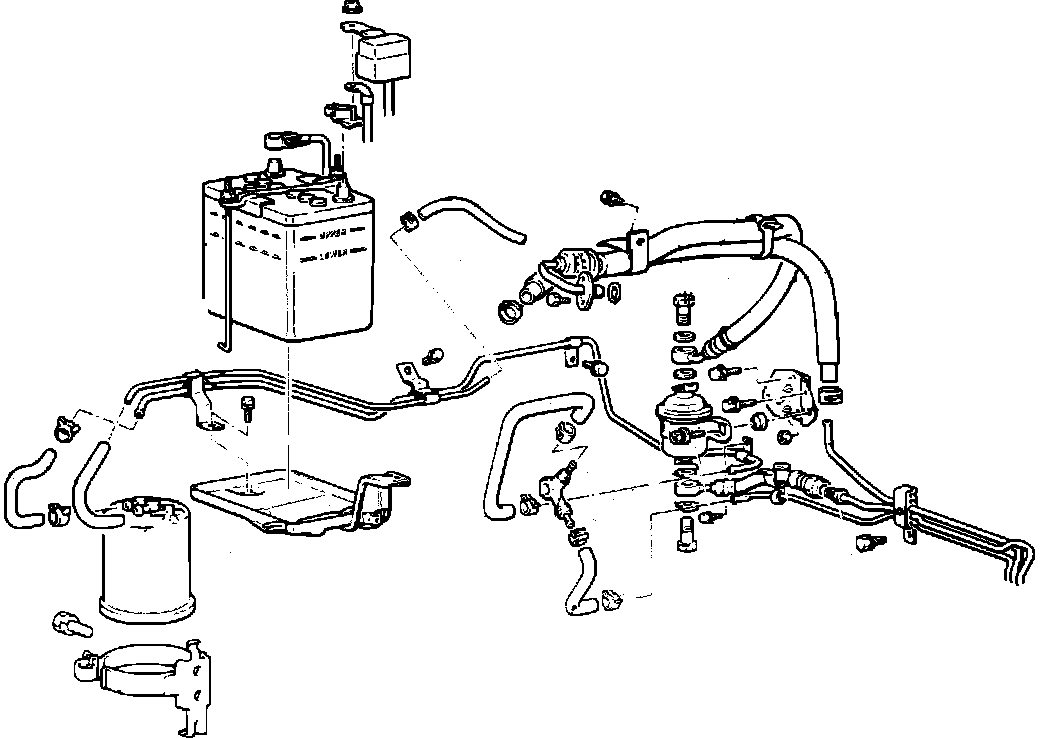

Fuel, Return And Vapor Line Components (Engine Compartment):
The rollover valve is mounted to the firewall next to the fuel filter.
THROTTLE POSITION SENSOR
Throttle Position Sensor (TPS) Location:
The throttle position sensor is mounted on the throttle body.
