Home >> Mitsubishi >> 1989 >> Sigma V6-2972cc 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Map Light >> Part 2 of 2

Part 2 of 2

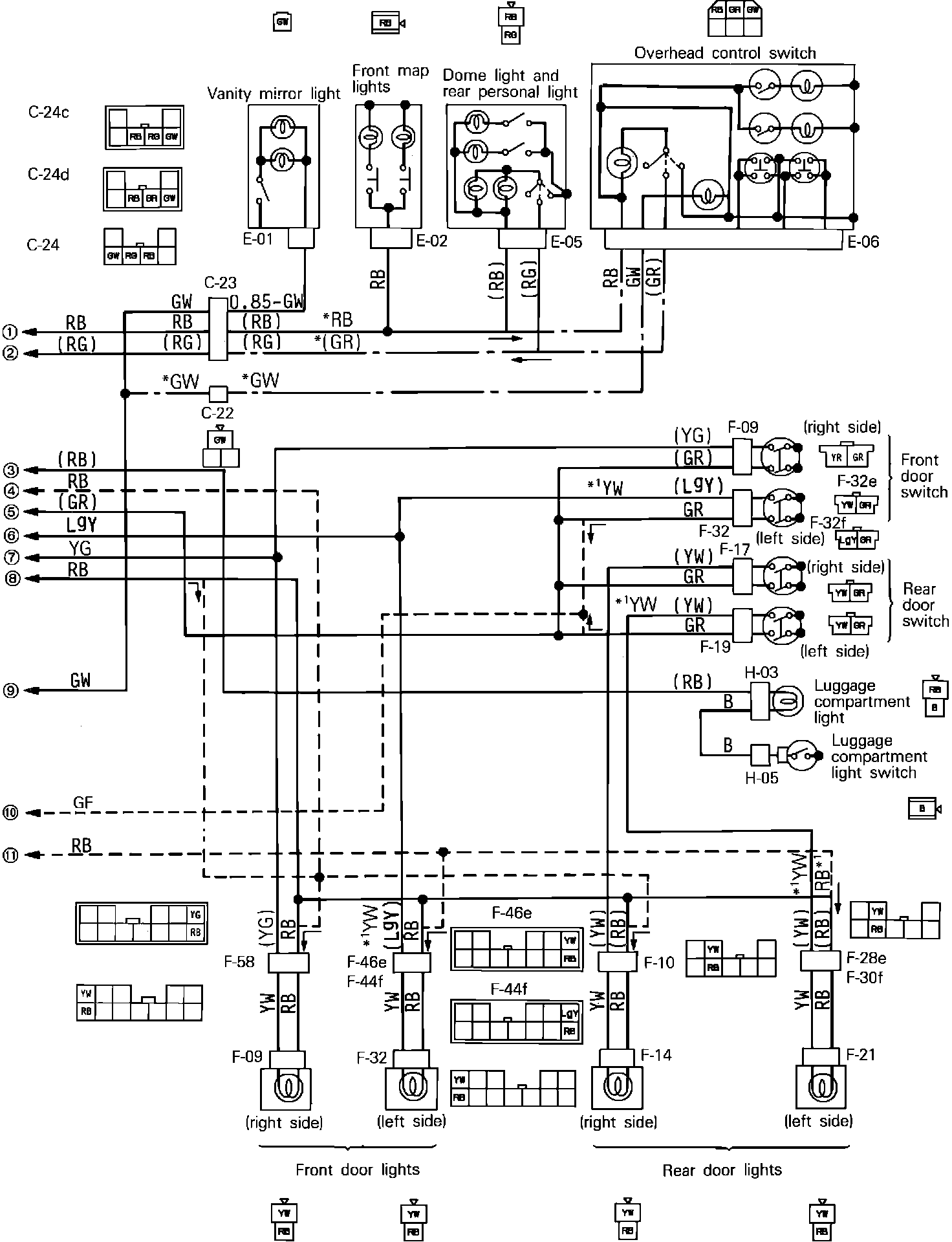

Dome, Front Map, Luggage Compartment & Vanity Mirror Lamps:
