Clutch - Manual Update

9221mitsubishi01

NO.: TSB-89-21-001

DATE: September, 1989

MODEL: 1989 Mirage


SUBJECT:
1989 MIRAGE CLUTCH ASSEMBLY
UPDATE


APPLICABLE SERVICE MANUAL

1989 Mirage Volume 1 MSSP-006B-89 (1/2) Pages 6-16, 6-17, 6-18.

PURPOSE

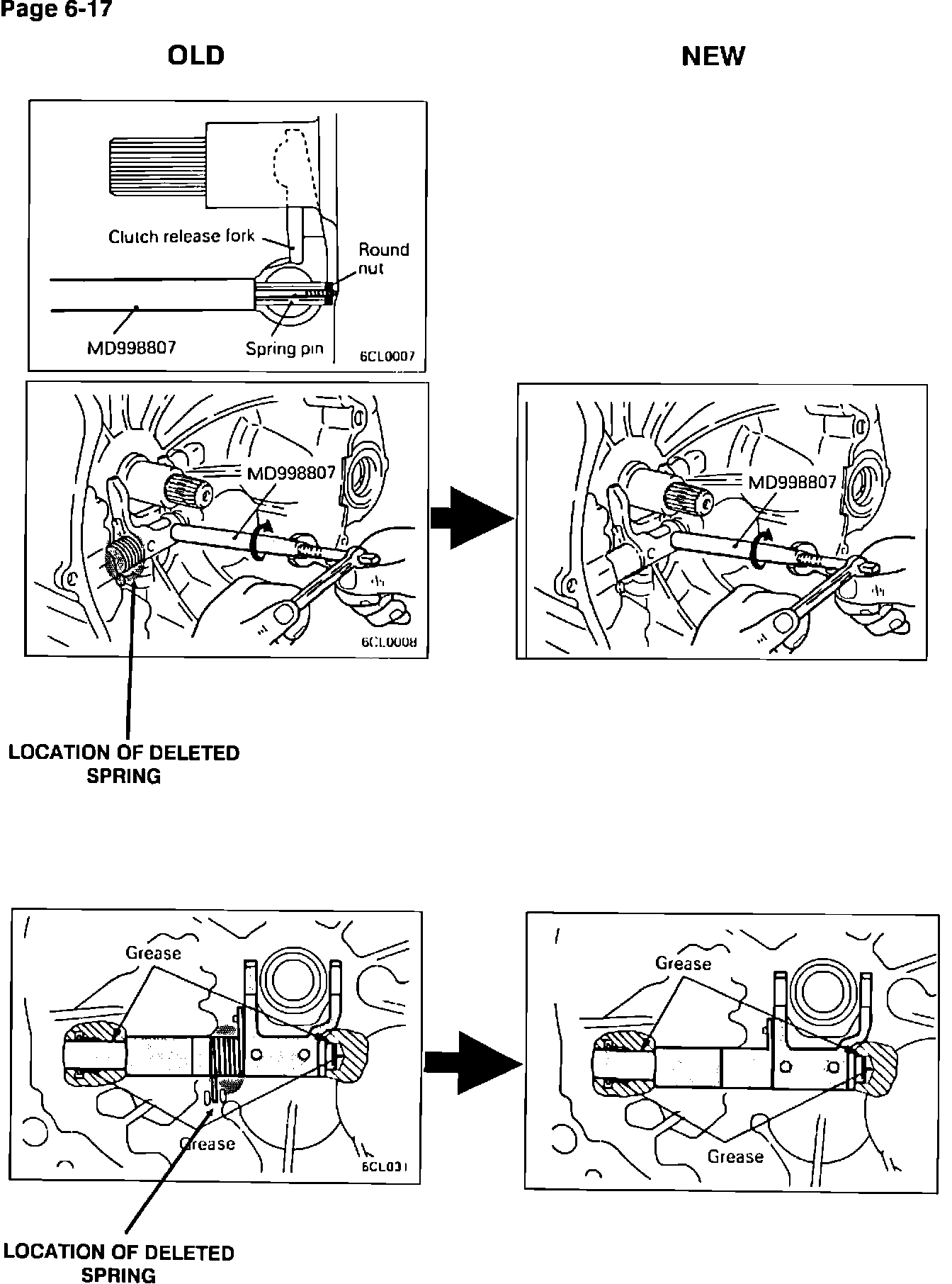

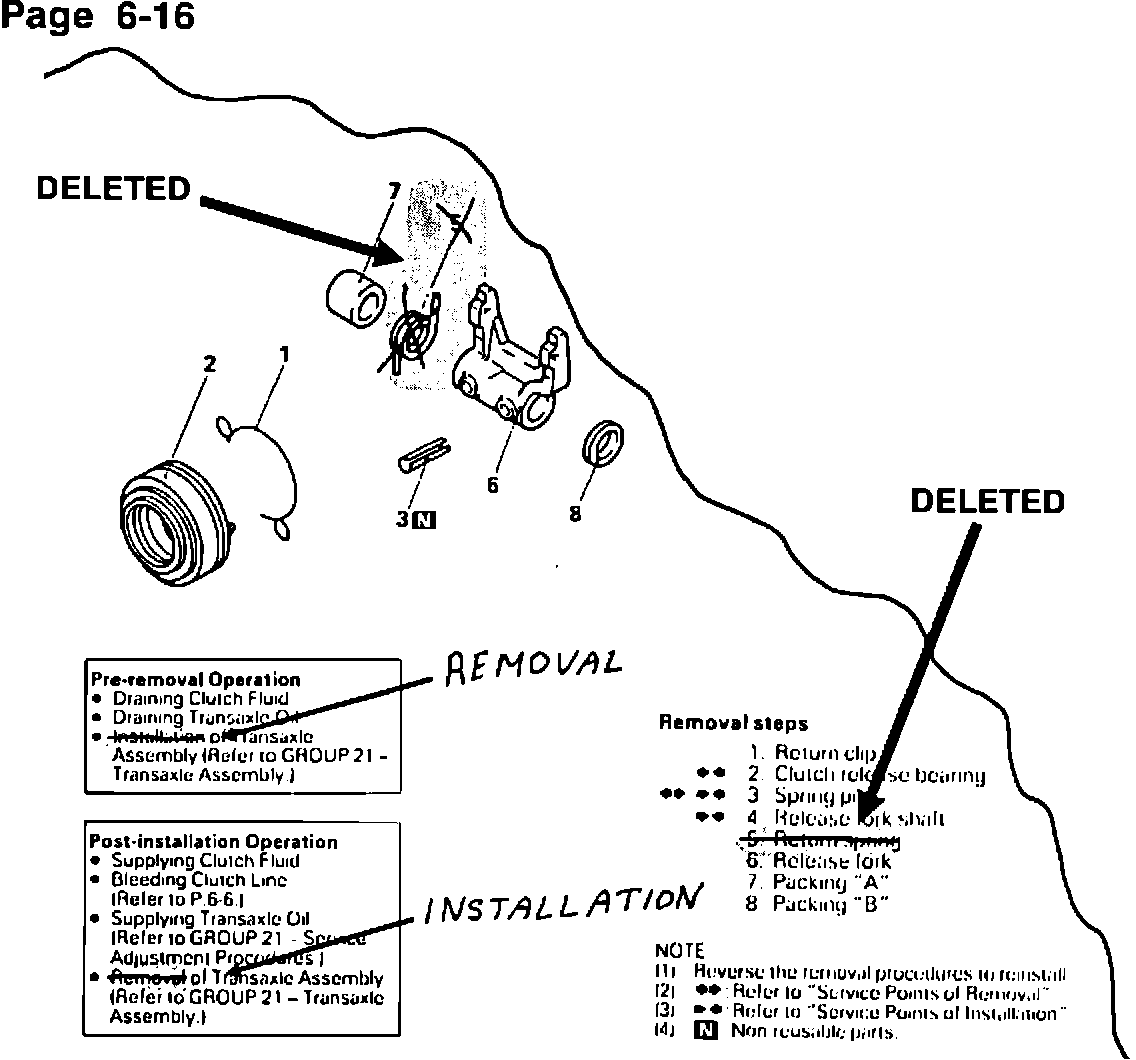

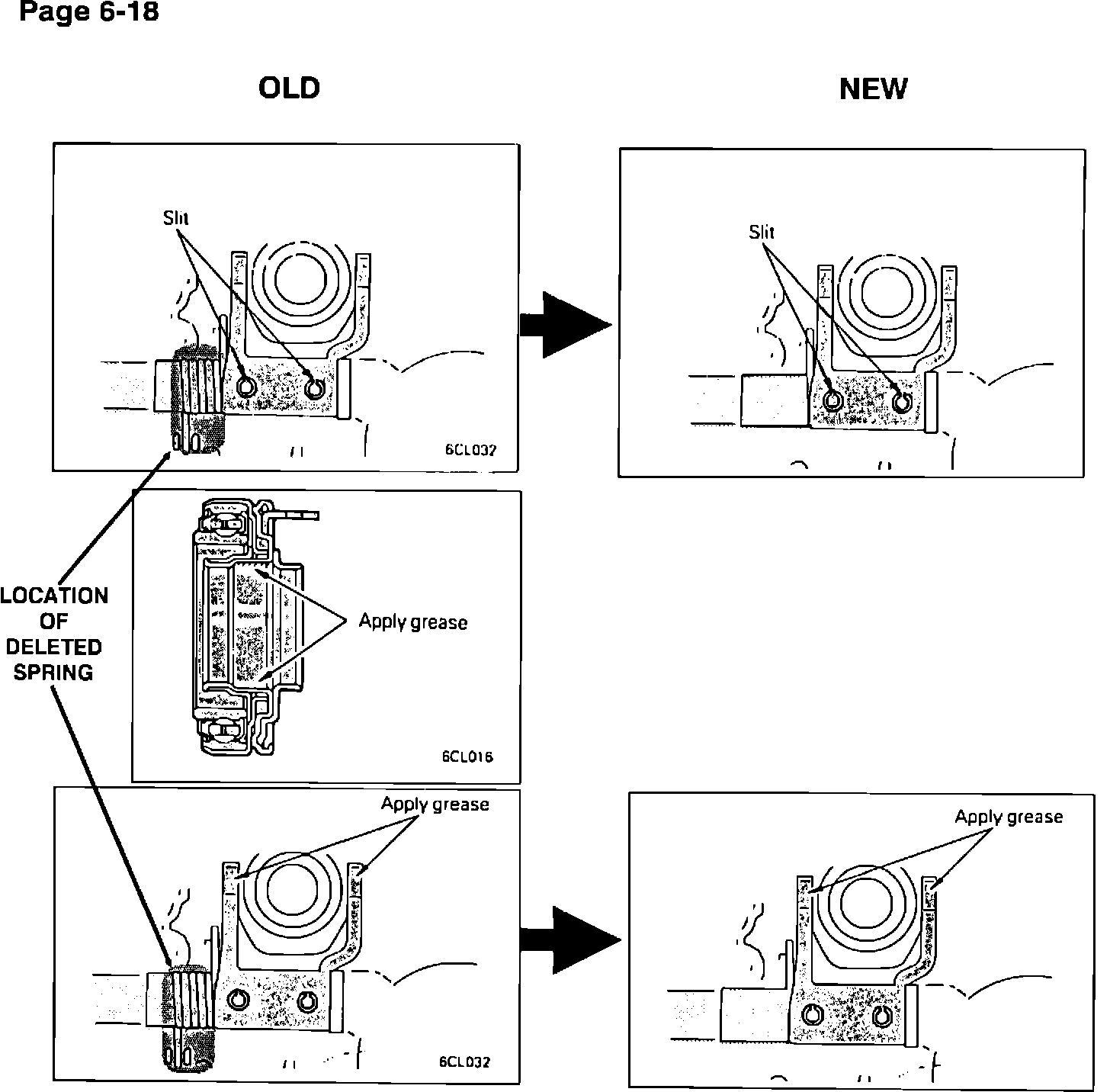

This bulletin is issued to correct the illustration on the above stated pages of the 1989 Mirage Service Manual Volume 1. A Clutch Throwout Bearing Return Spring is incorrectly shown the description and pictures. Also, on page 6-16 the removal and installation operation references have been corrected. As reference to this bulletin, please write the TSB number in the revision boxes on the pages listed and update the information in the manuals.
