Home
>>
Mitsubishi
>>
1989
>>
Mirage L4-1597cc 1.6L DOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
>>

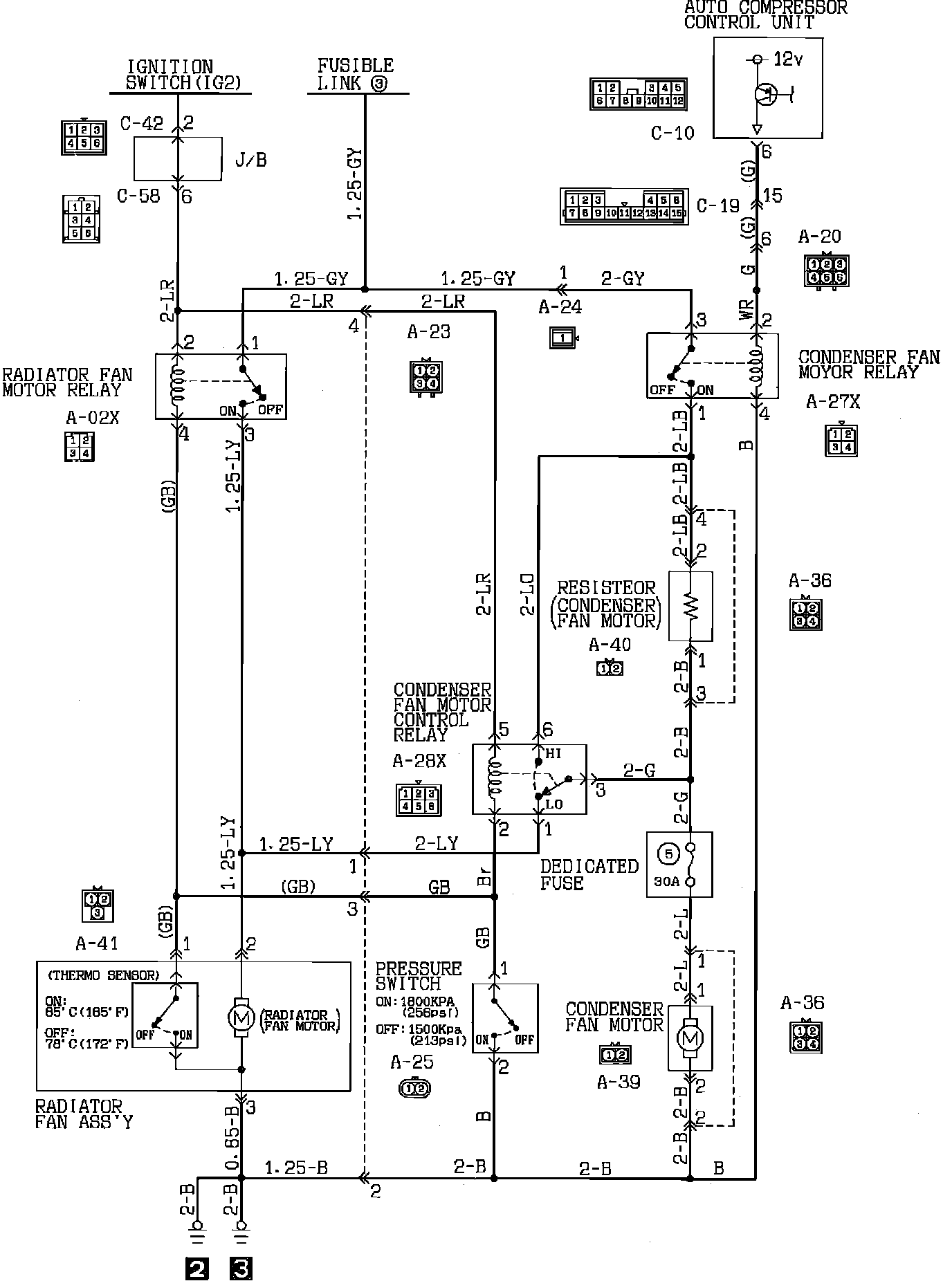

System Diagram
System Diagram
Cooling System:
Cooling System:
