Overhaul

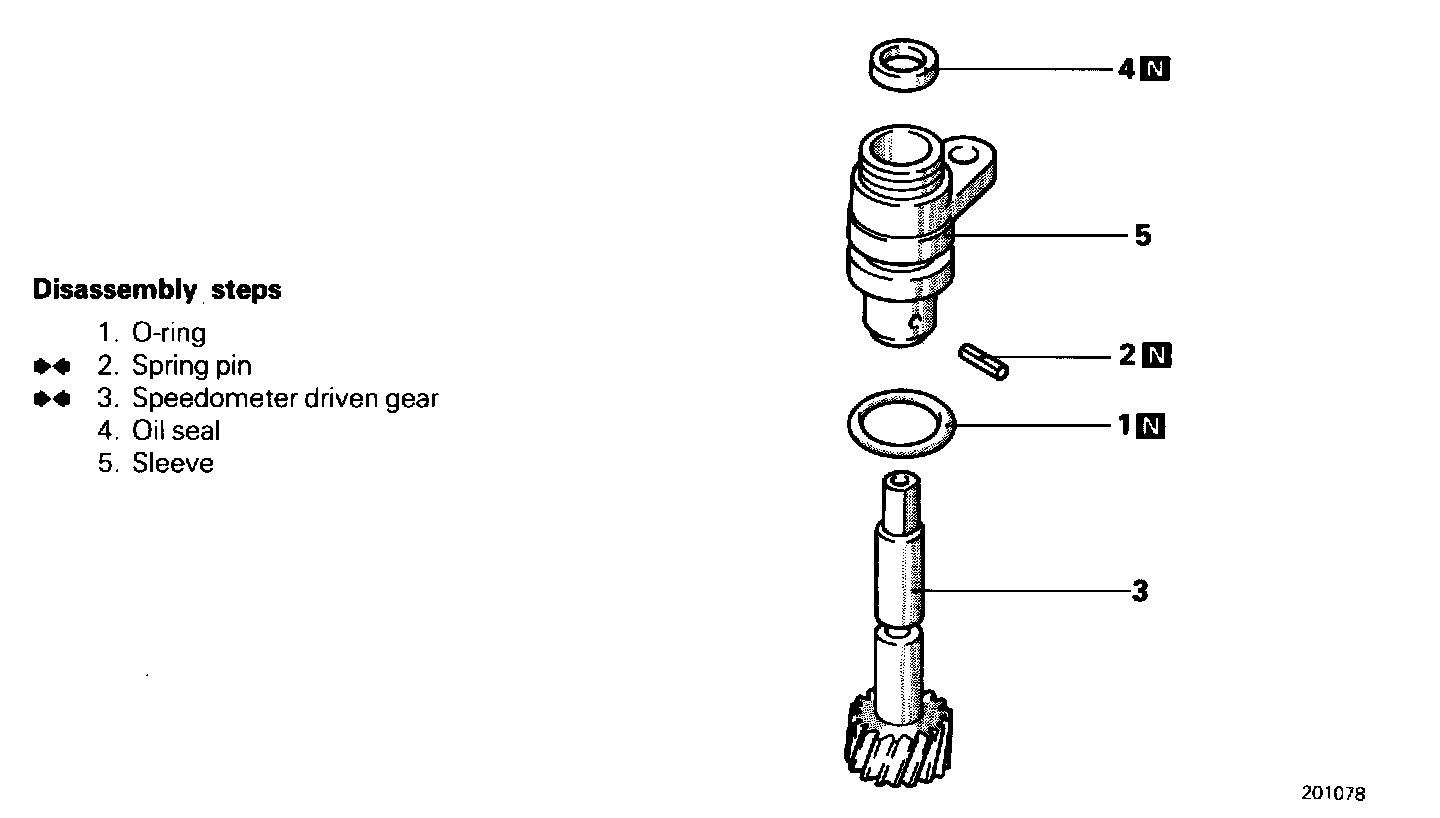

DISASSEMBLY AND REASSEMBLY

SERVICE POINTS OF REASSEMBLY
3. INSTALLATION OF SPEEDOMETER DRIVEN GEAR
Apply gear oil sparingly to the speedometer driven gear shaft and insert the shaft.

2. INSTALLATION OF SPRING PIN




Install the spring pin in such a way that its slit does not face the gear shaft.
