Output Shaft: Service and Repair

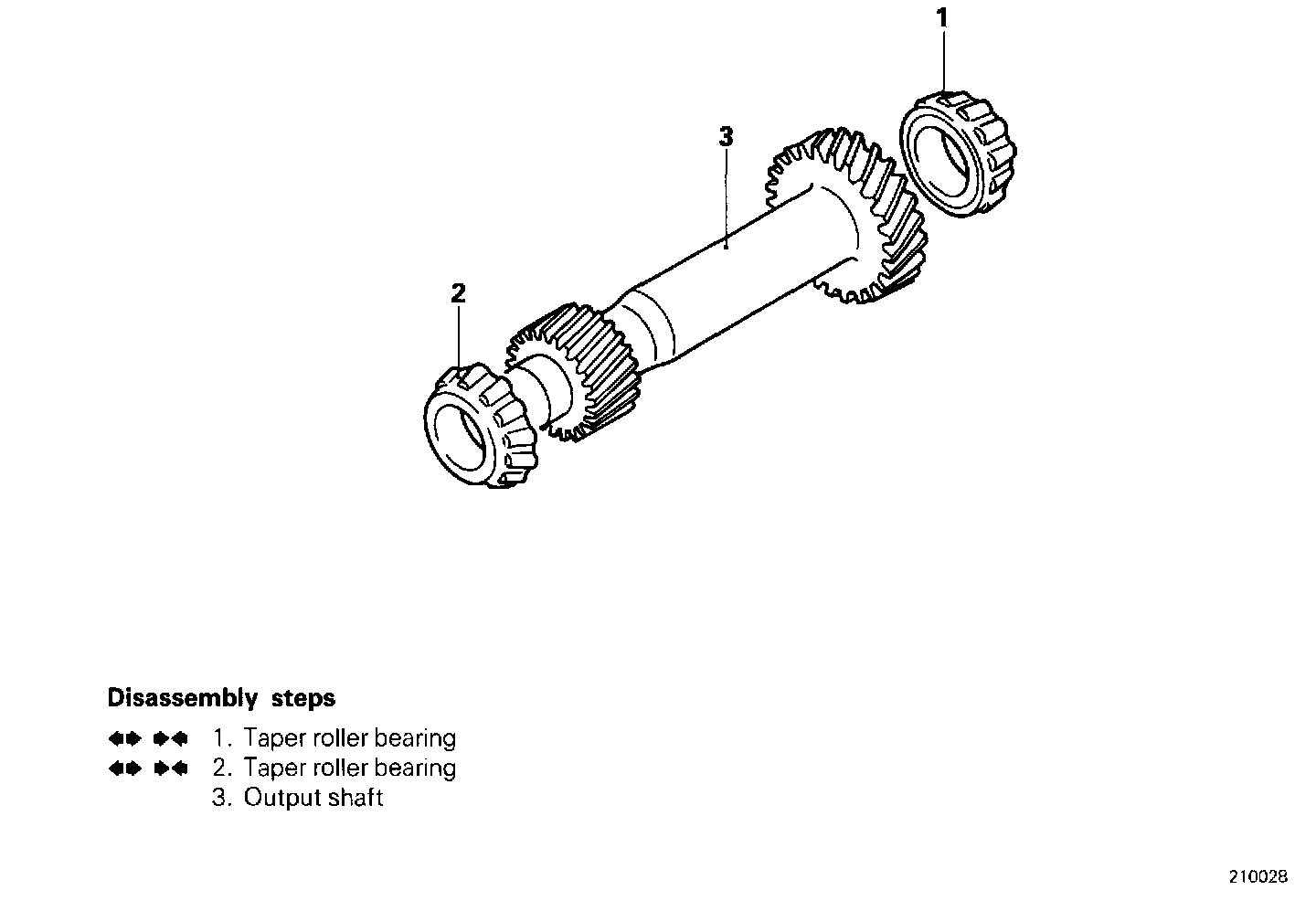

DISASSEMBLY AND REASSEMBLY

SERVICE POINTS OF DISASSEMBLY
1./2. REMOVAL OF TAPER ROLLER BEARINGS




Remove the taper roller bearing using the special tool as illustrated.

CAUTION:
1. Do not reuse the bearings removed from the shaft.
2. Replace the inner and outer races of the taper roller bearing as a set.

SERVICE POINTS OF REASSEMBLY
1./2. INSTALLATION OF TAPER ROLLER BEARINGS




Install the taper roller bearing using the special tool as illustrated.

CAUTION: When installing the bearing, push the inner race only.
