Paint - Exterior Color Codes and Applications

9221mitsubishi01

NO.: TSB-89-23-006

DATE: March, 1989

MODEL: All


SUBJECT:
1989 EXTERIOR COLOR CODES AND APPLICATIONS


NOTE:
THIS BULLETIN SUPERSEDES THE FOLLOWING TSBs:

TSB-88-23-008 July, 1988
TSB-89-23-001 January, 1989

PLEASE DISCARD THE BULLETINS LISTED ABOVE. THIS BULLETIN IS ISSUED TO REPLACE THEM.


PURPOSE
The exterior color codes, vehicle applications and paint manufacturers' exterior color codes for 1989 model Mitsubishi vehicles are listed in the three tables shown in this bulletin. Use these tables when ordering refinishing materials from your local automotive paint dealer.


1989 EXTERIOR COLORS
There are twenty-four exterior colors for 1989. Sixteen are carried over from 1988, and eight are new. In Table I, the new colors are identified by asterisks (*).

In Table II, are manufacturers' stock numbers which correspond with the Mitsubishi Color Codes shown in Table I.

Table III shows the two-tone color combinations for 1989 Mitsubishi models.

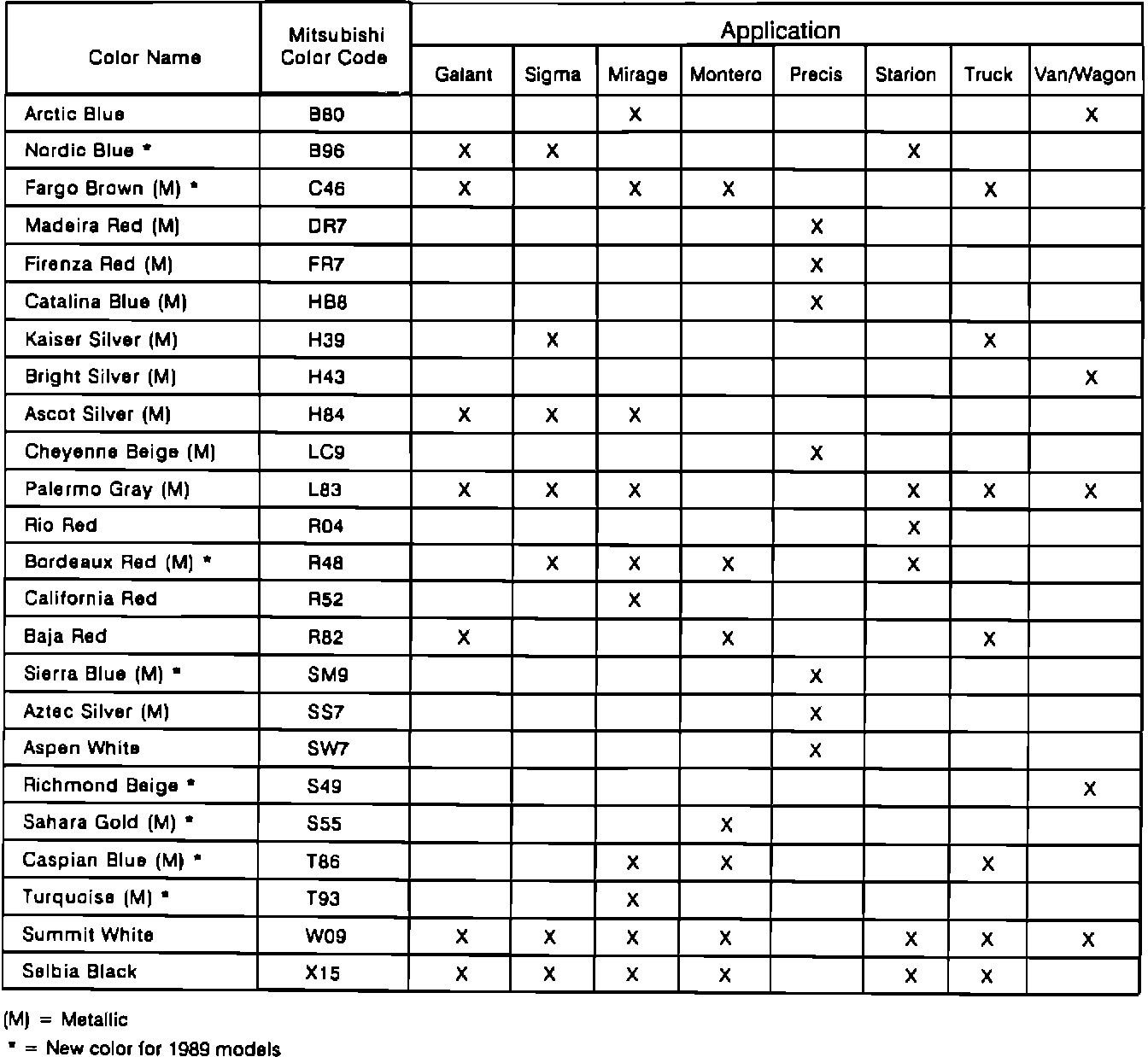

TABLE I: 1989 MITSUBISHI EXTERIOR COLOR CODES AND APPLICATIONS

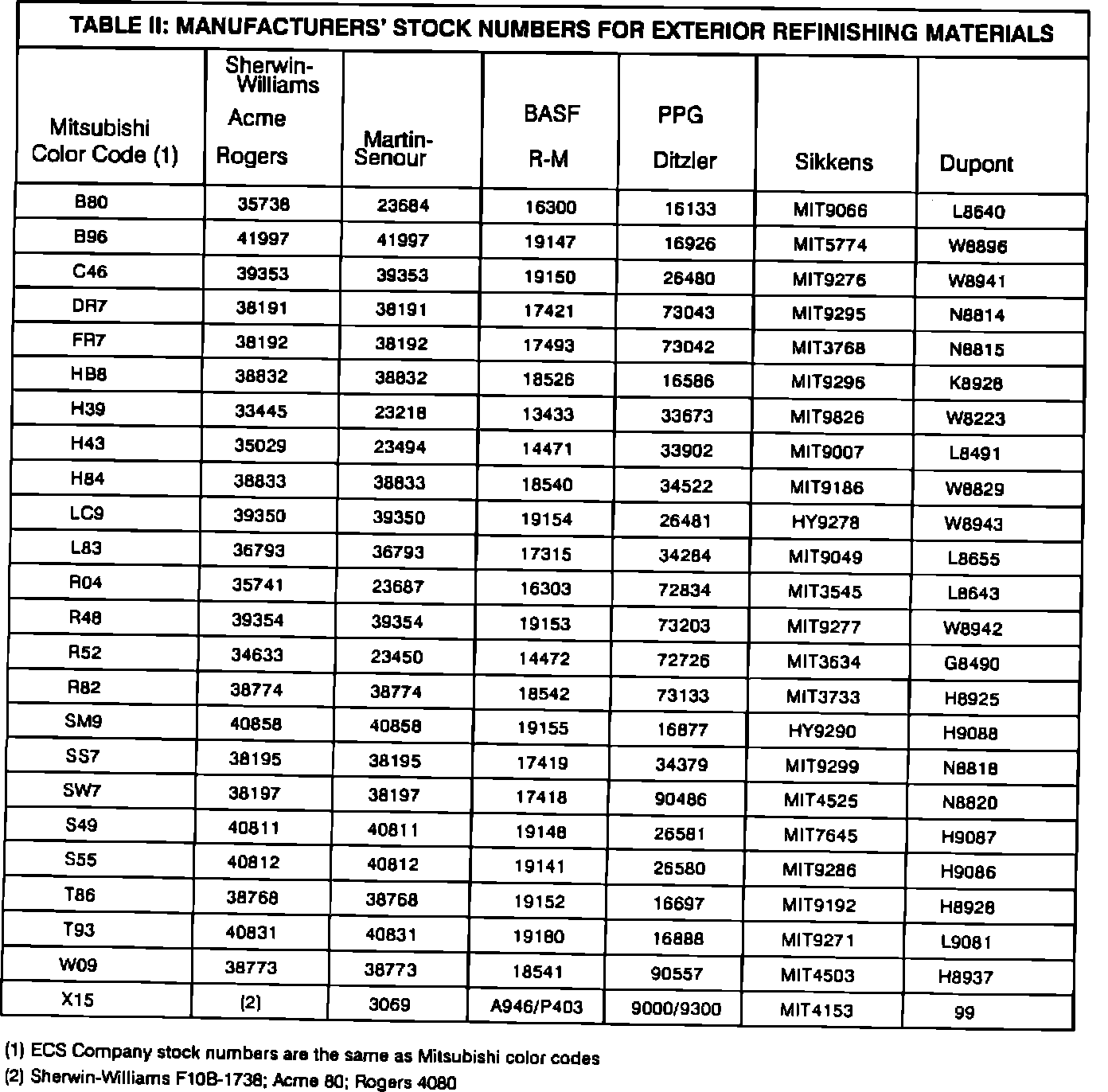

TABLE II: MANUFACTURERS' STOCK NUMBERS FOR EXTERIOR REFINISHING MATERIALS

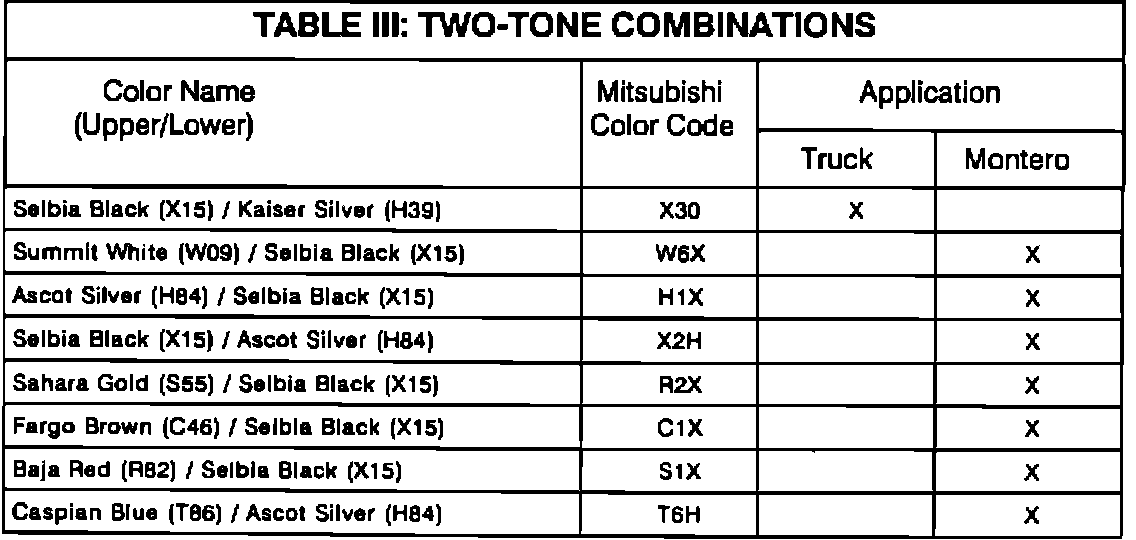

TABLE III: TWO-TONE COMBINATIONS
