Evaporative Emission Control Canister: Locations

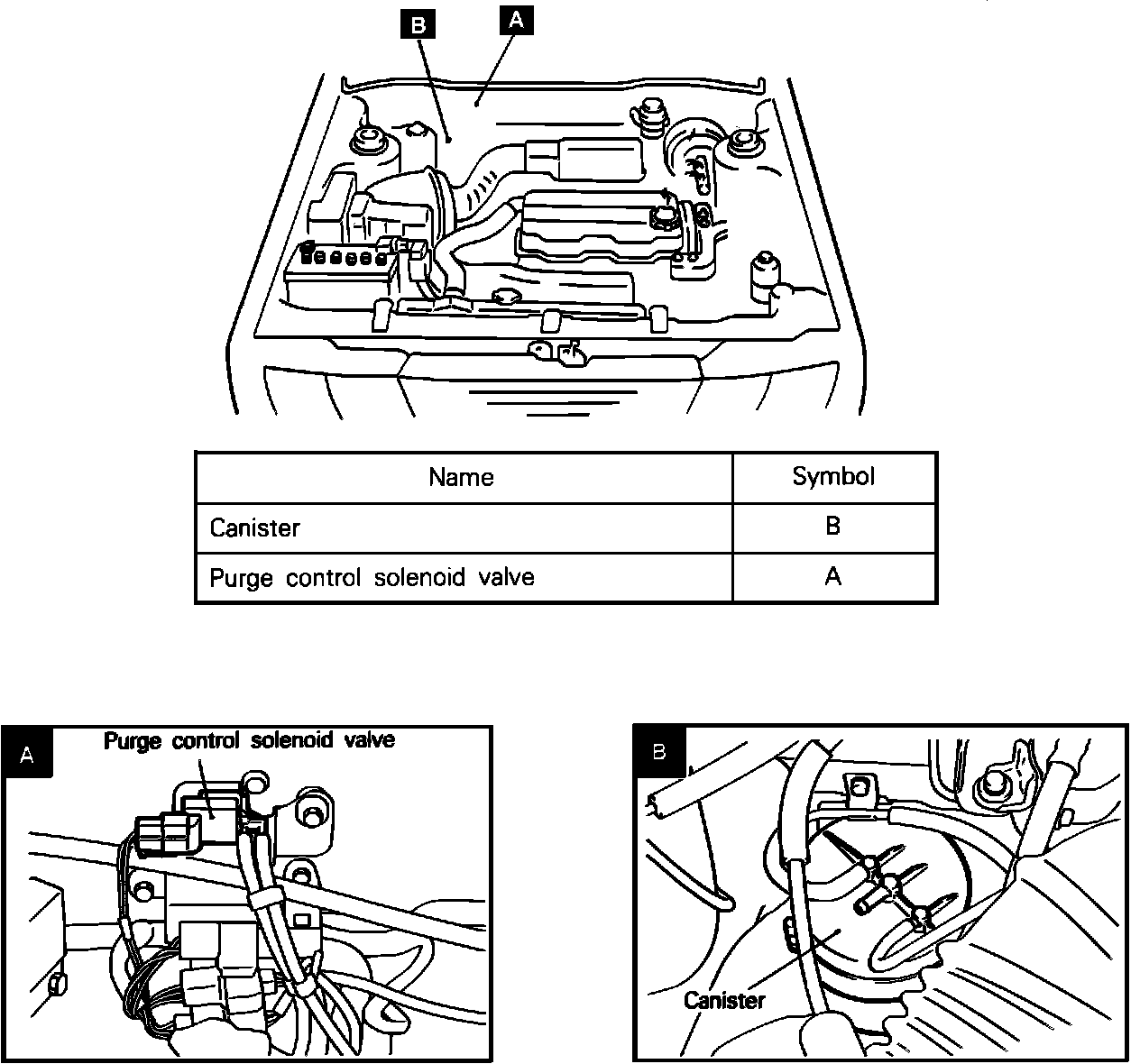

Fig. 9 Component Locations (Evaporative Emission Control System):

Charcoal Canister: Rear, RH side of engine compartment
Purge Control Solenoid Valve: Rear of engine compartment
Purge Port: On throttle valve housing
