Cooling System
>>

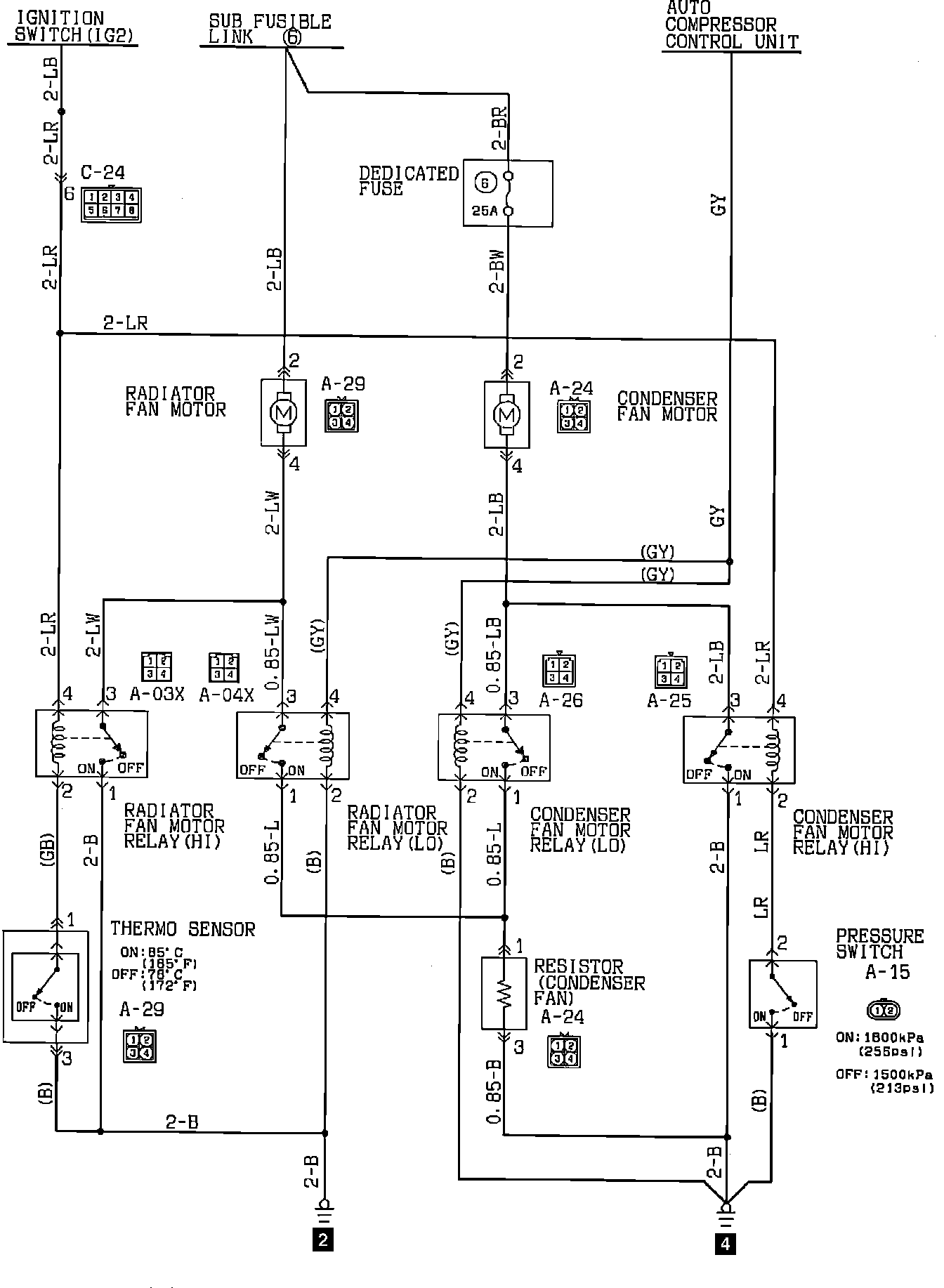

System Diagram
System Diagram
Fuse Block Details: Junction Block (A/T):
Cooling System: Manual Transmission:
