With AWD

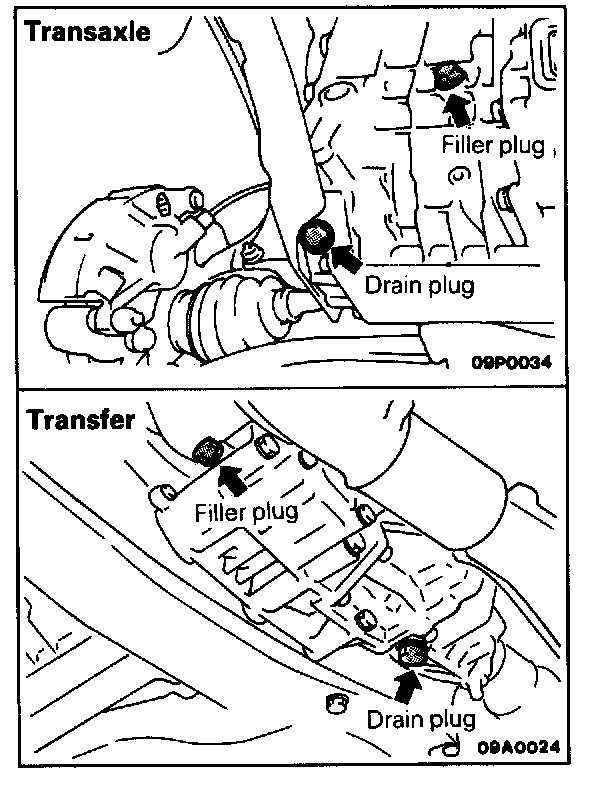

1. Position vehicle on a flat level and remove filler and drain plugs to drain transaxle oil.
2. Pour in fresh transaxle oil through filler port until it reaches the bottom of filler port.

Transaxle oil: Hypoid gear oil SAE 75W-85W conforming to API classification GL-4 or higher
Transaxle: 2.3 liters (2.4 qts.)
Transfer: 0.6 liter (.6 qt.)
