Mitsubishi
>>
1989
>>
Galant L4-1997cc 2.0L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Federal Models
Federal Models

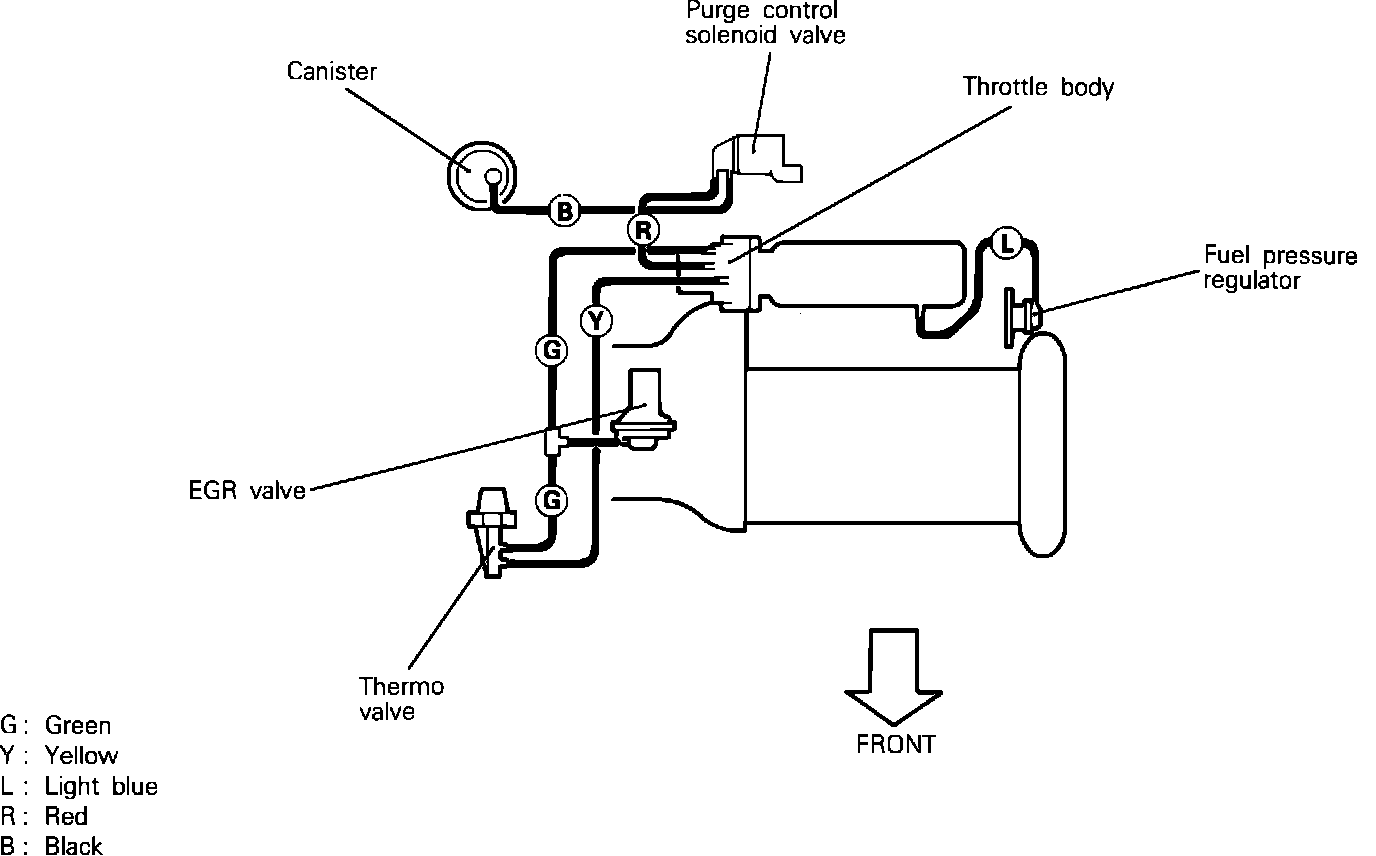

Fig. 3 Vacuum Hose Routing (Federal):
