Pick-Up Coil: Testing and Inspection

Pick-Up Coil Testing:

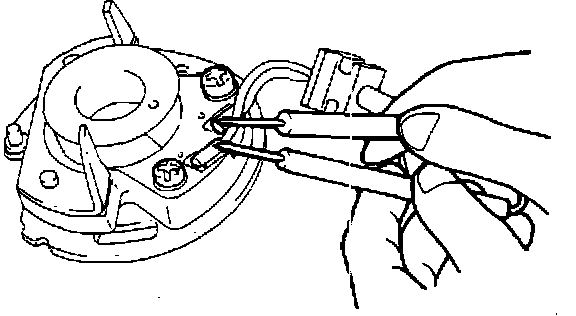

1. Measure resistance at terminals as shown.
2. Replace pick-up if resistance is not as specified.

RESISTANCE
920 - 1120 ohms
