Disassembly

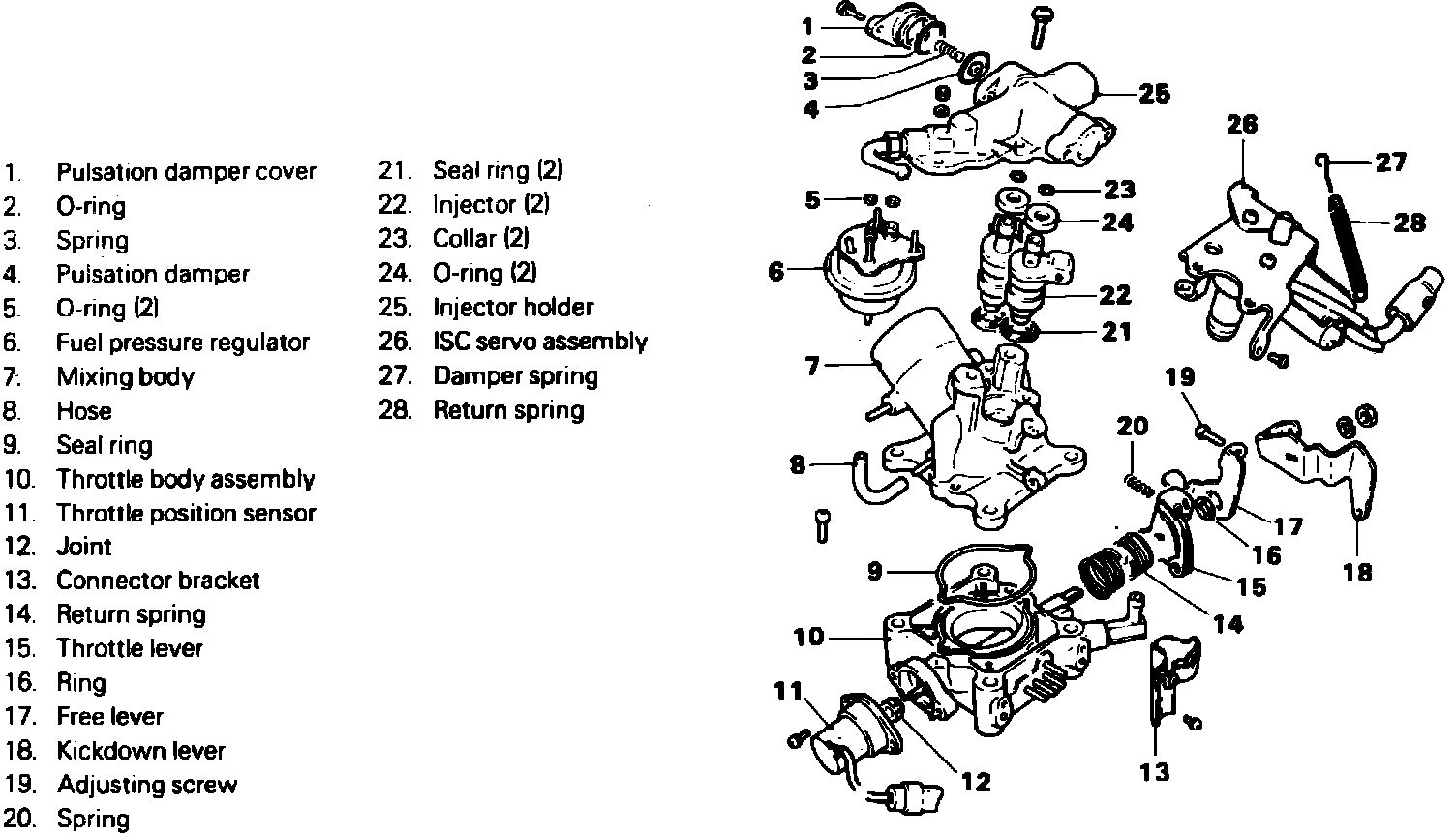

Fig. 47 Exploded view of injection mixer.:

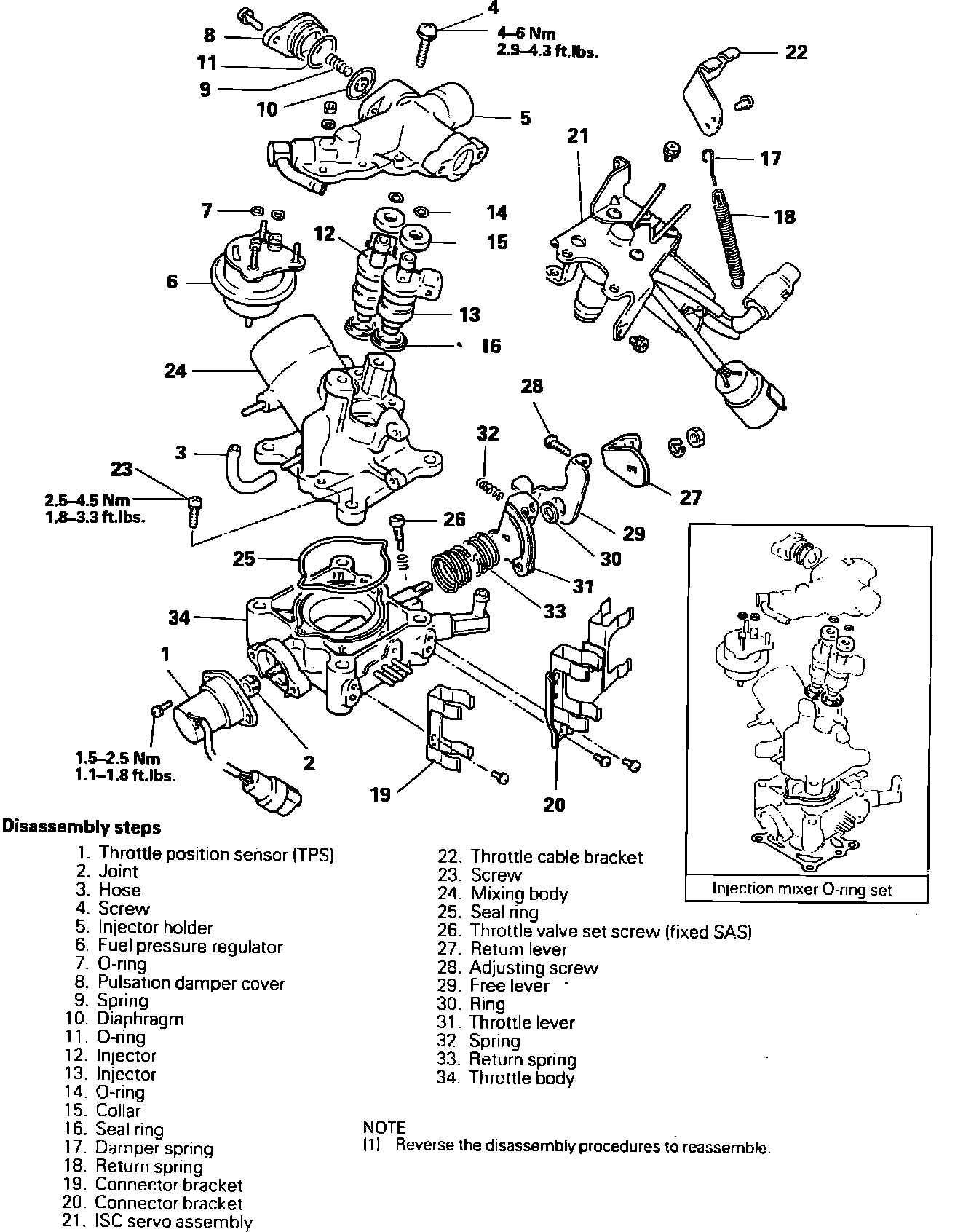

Fig. 48 Exploded view of injector mixer.:

Fig. 49 Injector holder removal.:

Fig. 50 Pulsation damper removal.:

Fig. 51 Injector removal.:

Fig. 52 ISC servo removal.:

Exc. 1985 Galant
1. Place injection mixer in a suitable soft jawed vise, then remove throttle position sensor.
2. Disconnect fuel pressure regulator hose from regulator and mixer body, Figs. 47 and 48.

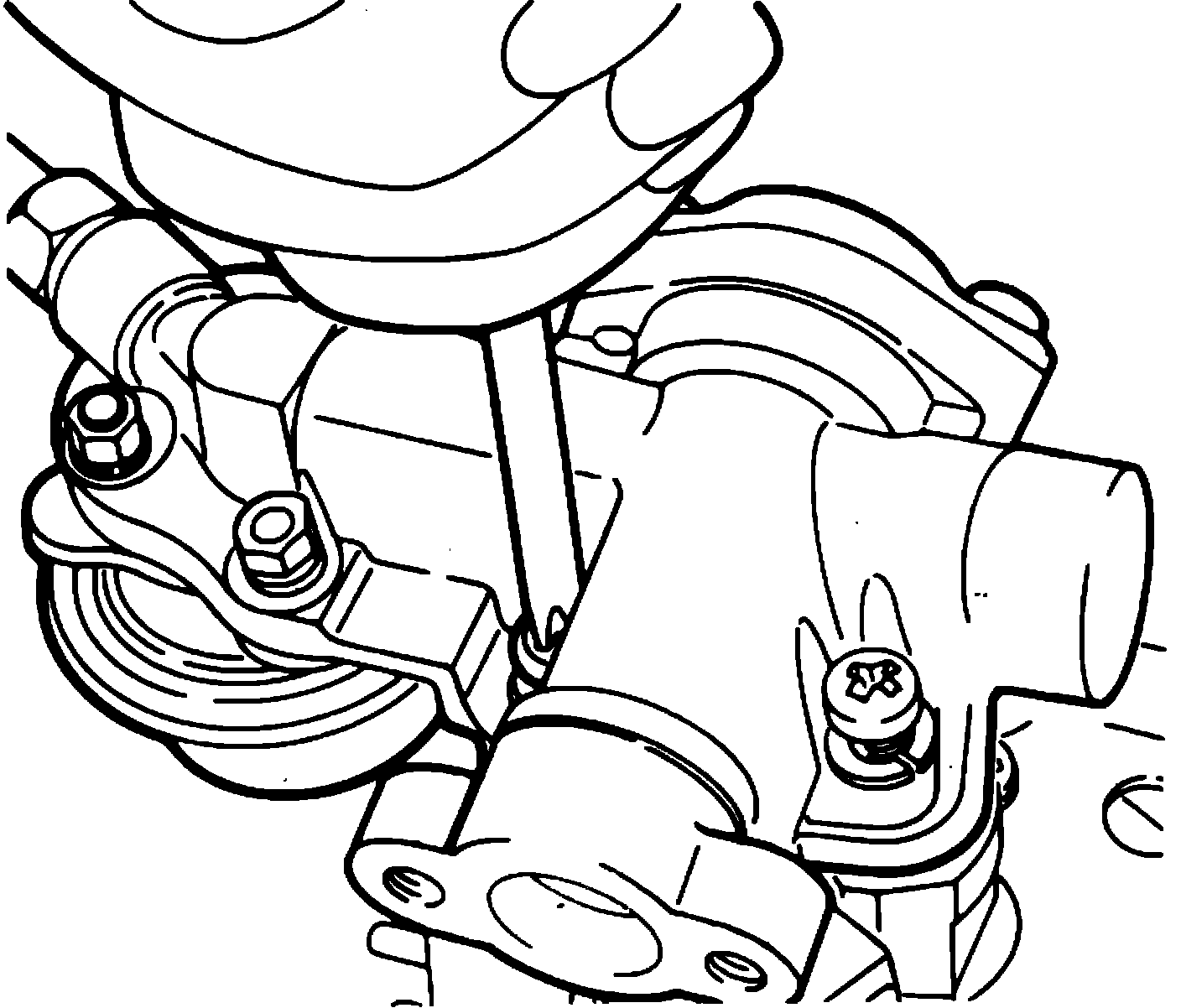

3. Remove injector holder attaching screws, then the injector holder, Fig. 49.

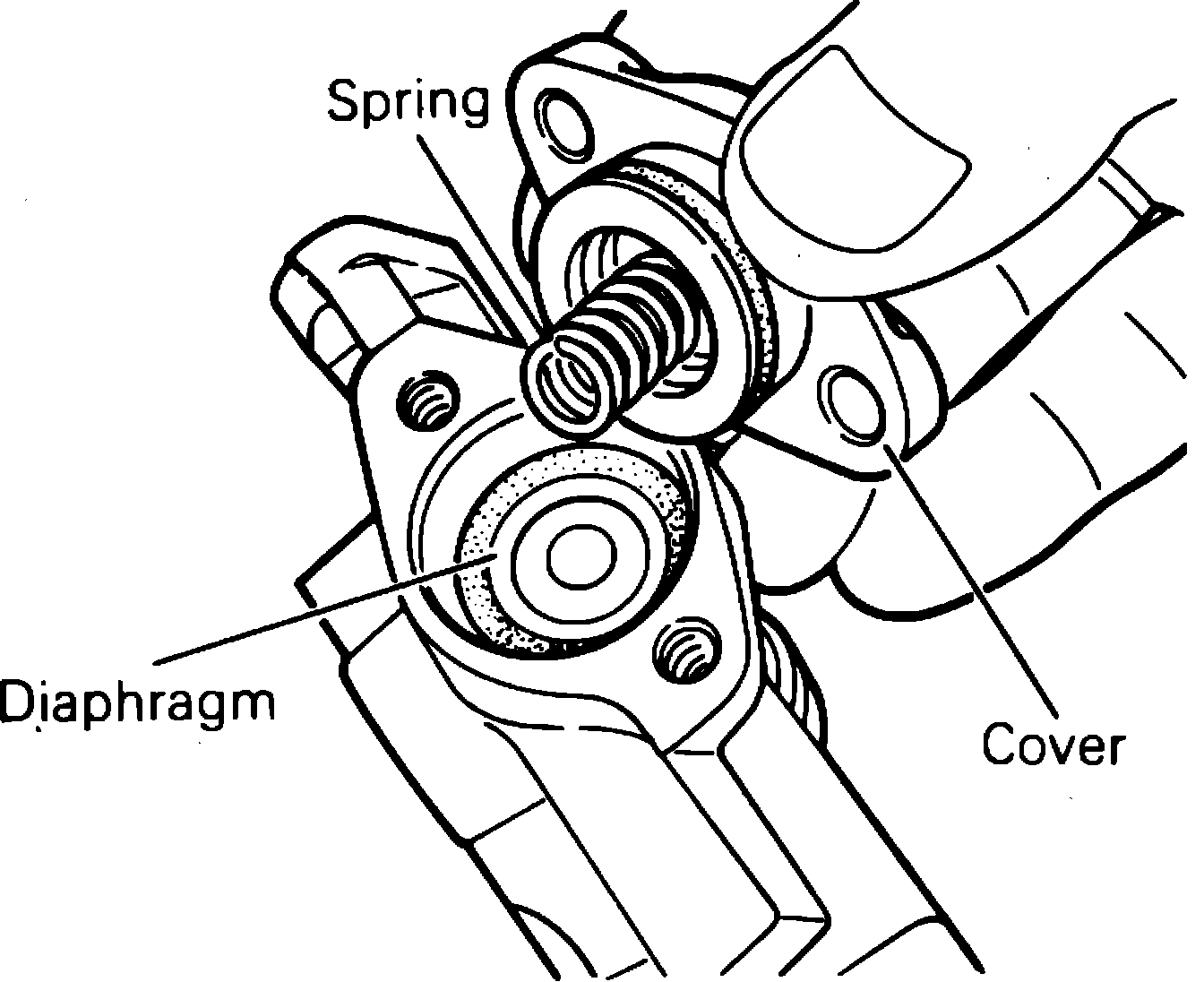

4. Remove fuel pressure regulator and pulsation damper cover from retainer, then the spring and diaphragm, Fig. 50.

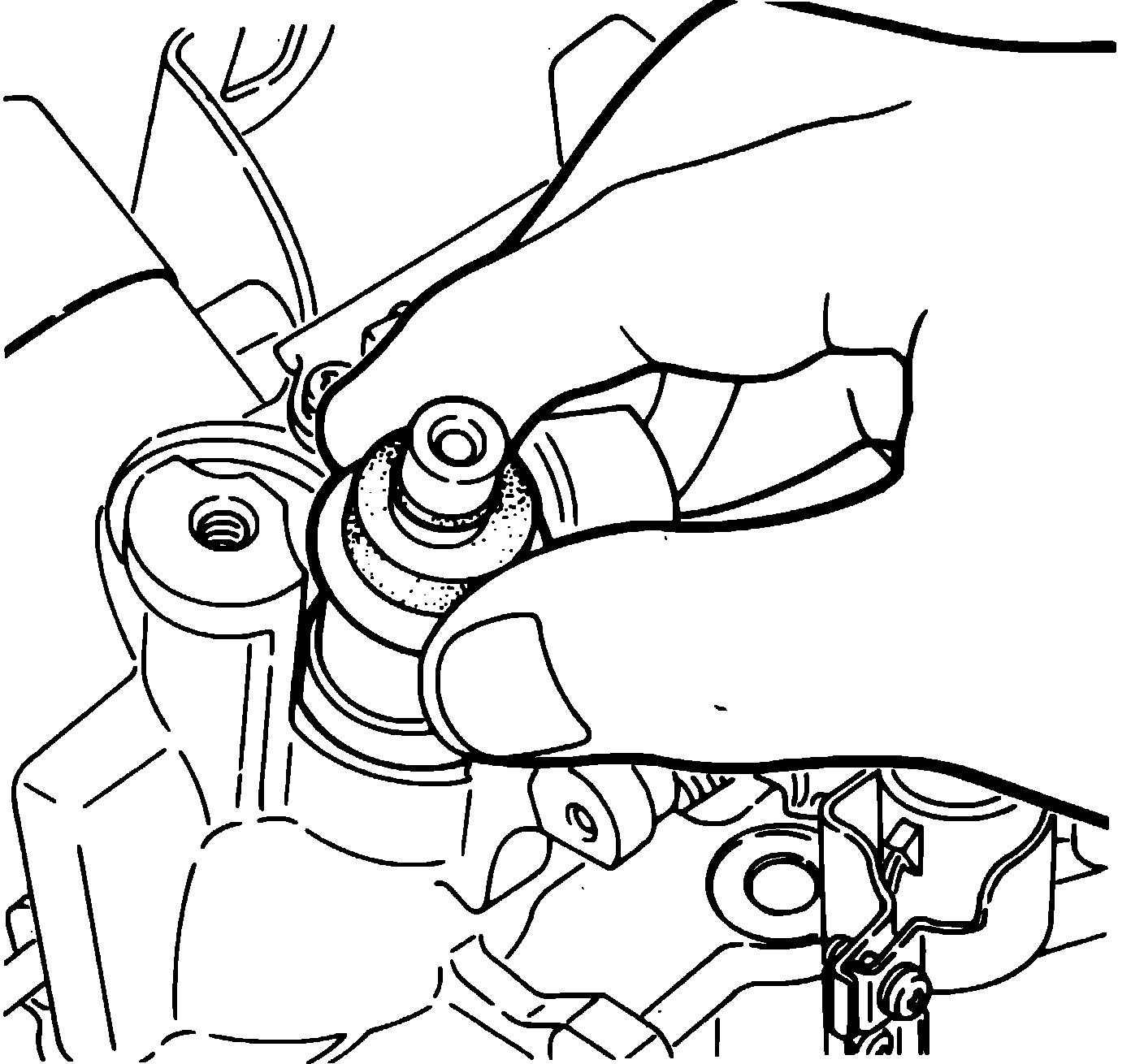

5. Manually remove injectors from mixing body, then the gaskets, Fig. 51.
6. Remove throttle return and damper spring, then the connector bracket.

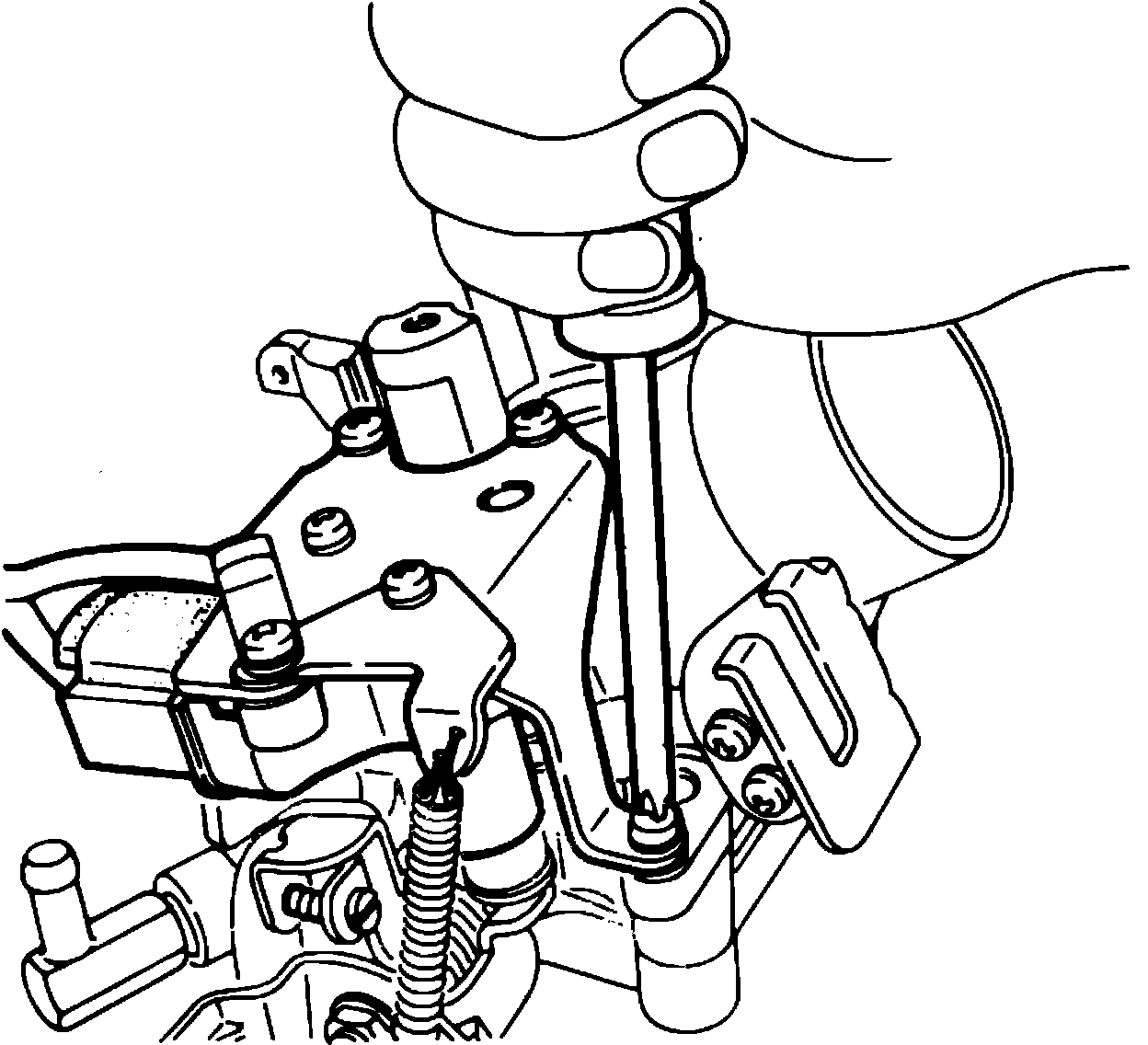

7. Remove ISC servo bracket attaching bolts, then the servo and bracket, if replacement is required, Fig. 52.
8. Remove mixing body attaching screws, then the mixing body and seal ring.
