Assembly

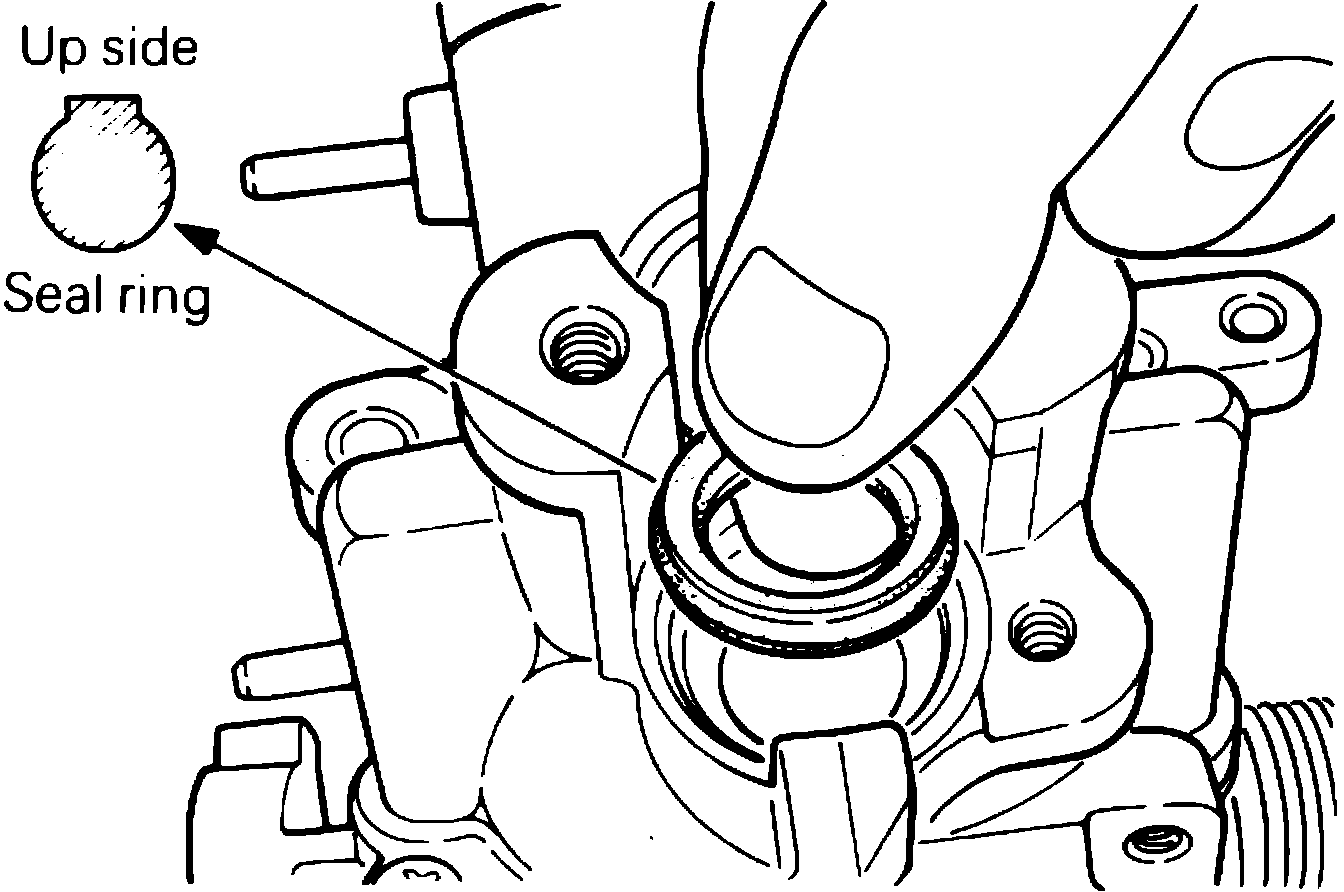

Fig. 55 Mixing body seal ring installation.:

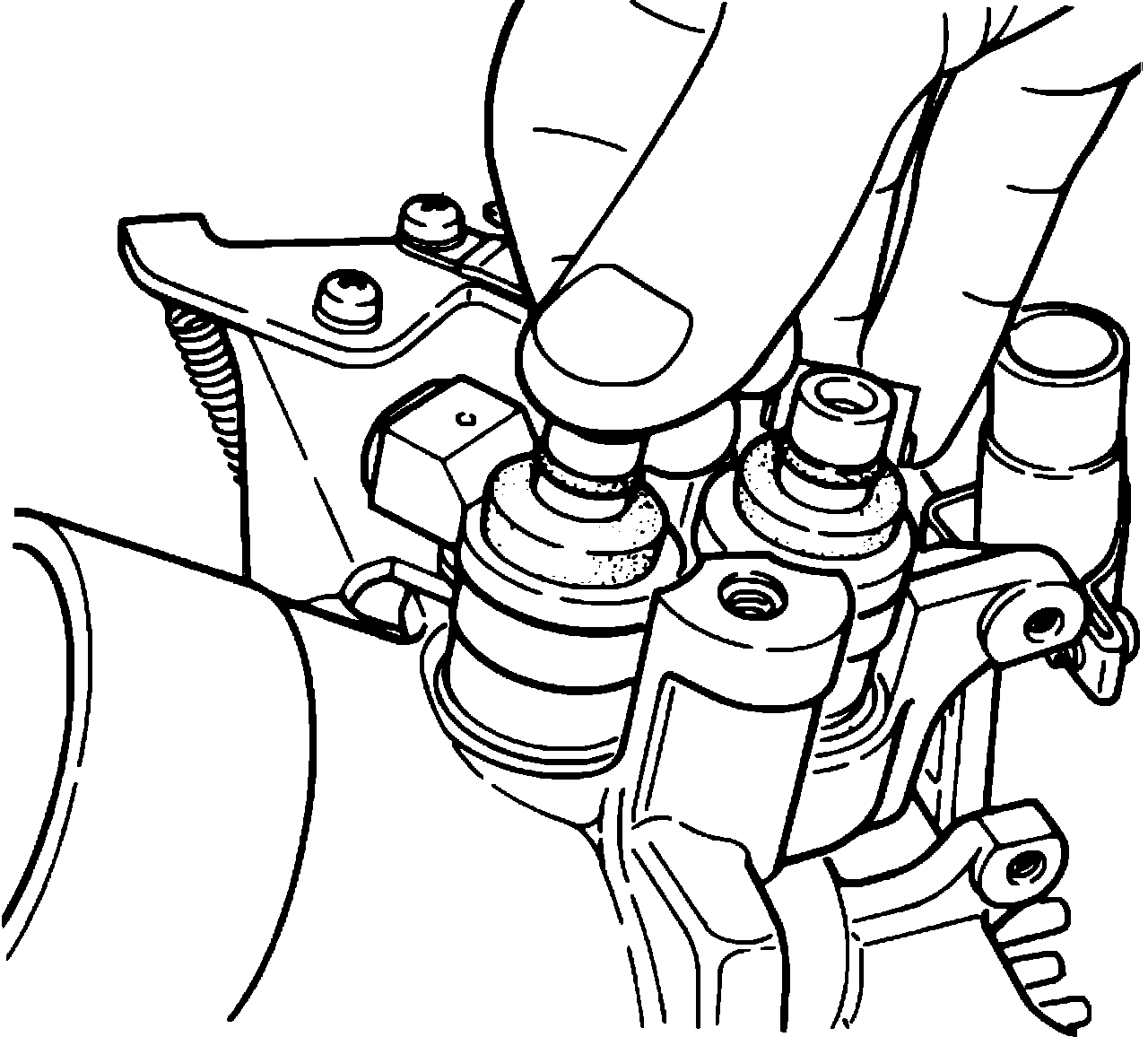

Fig. 56 Injector installation.:

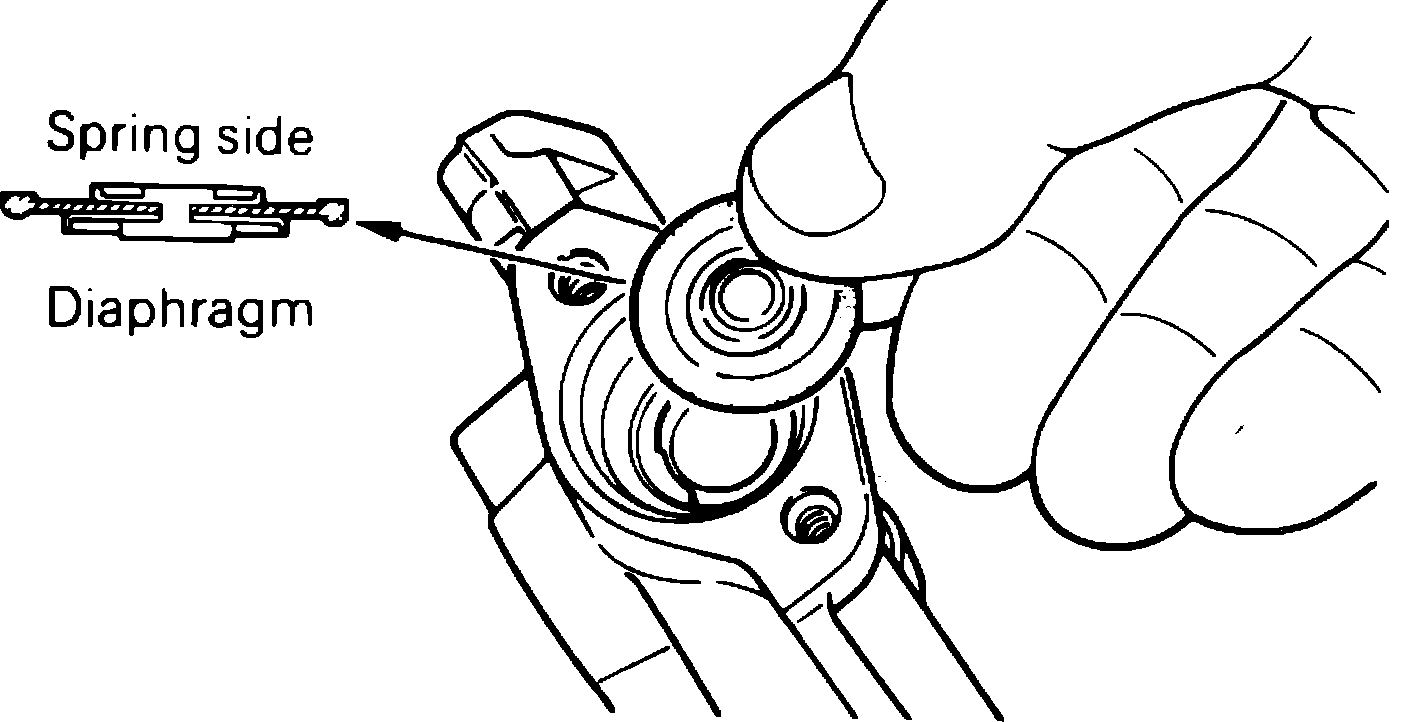

Fig. 57 Pulsation damper diaphragm installation.:

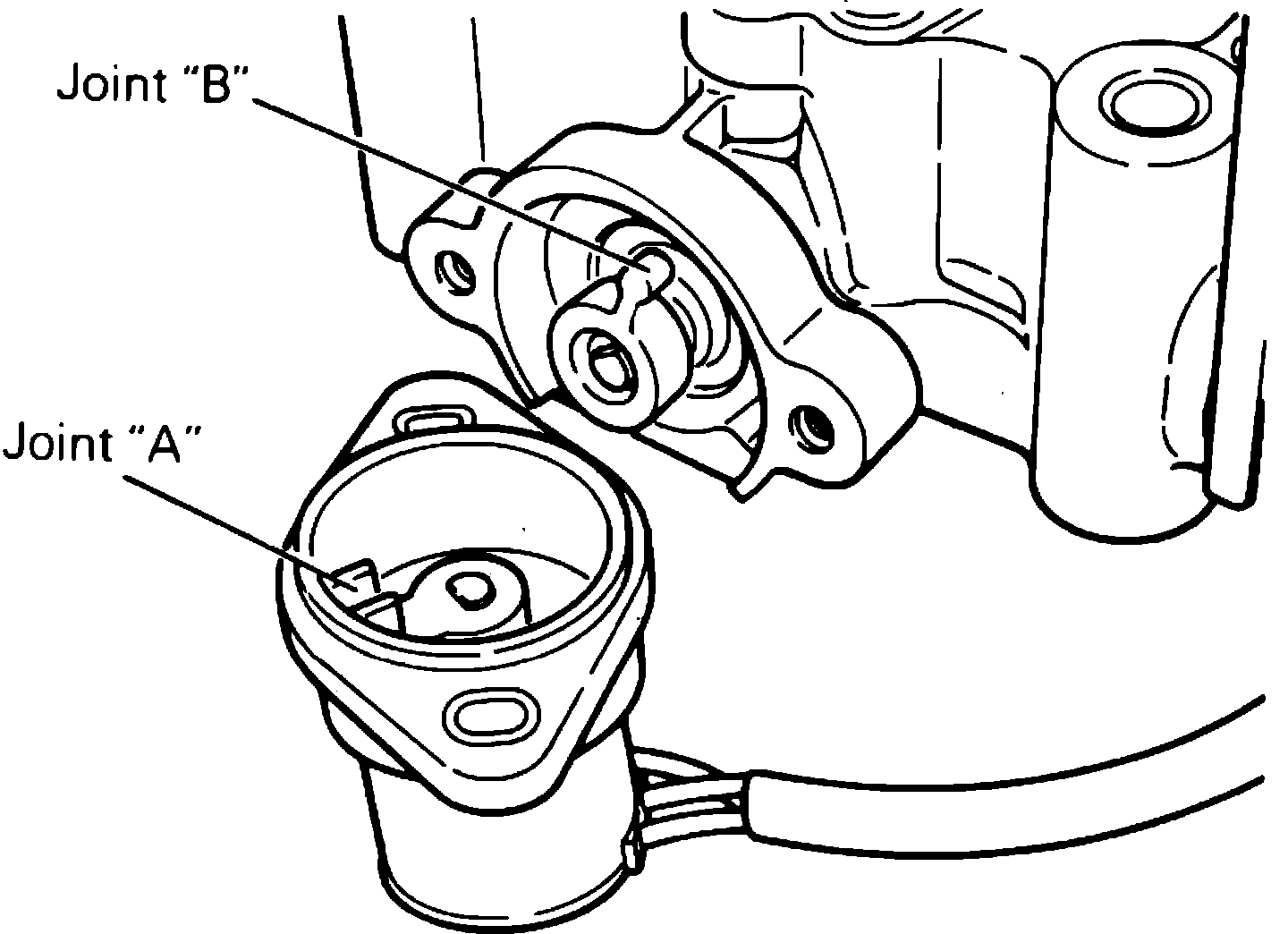

Fig. 58 Throttle position sensor installation.:

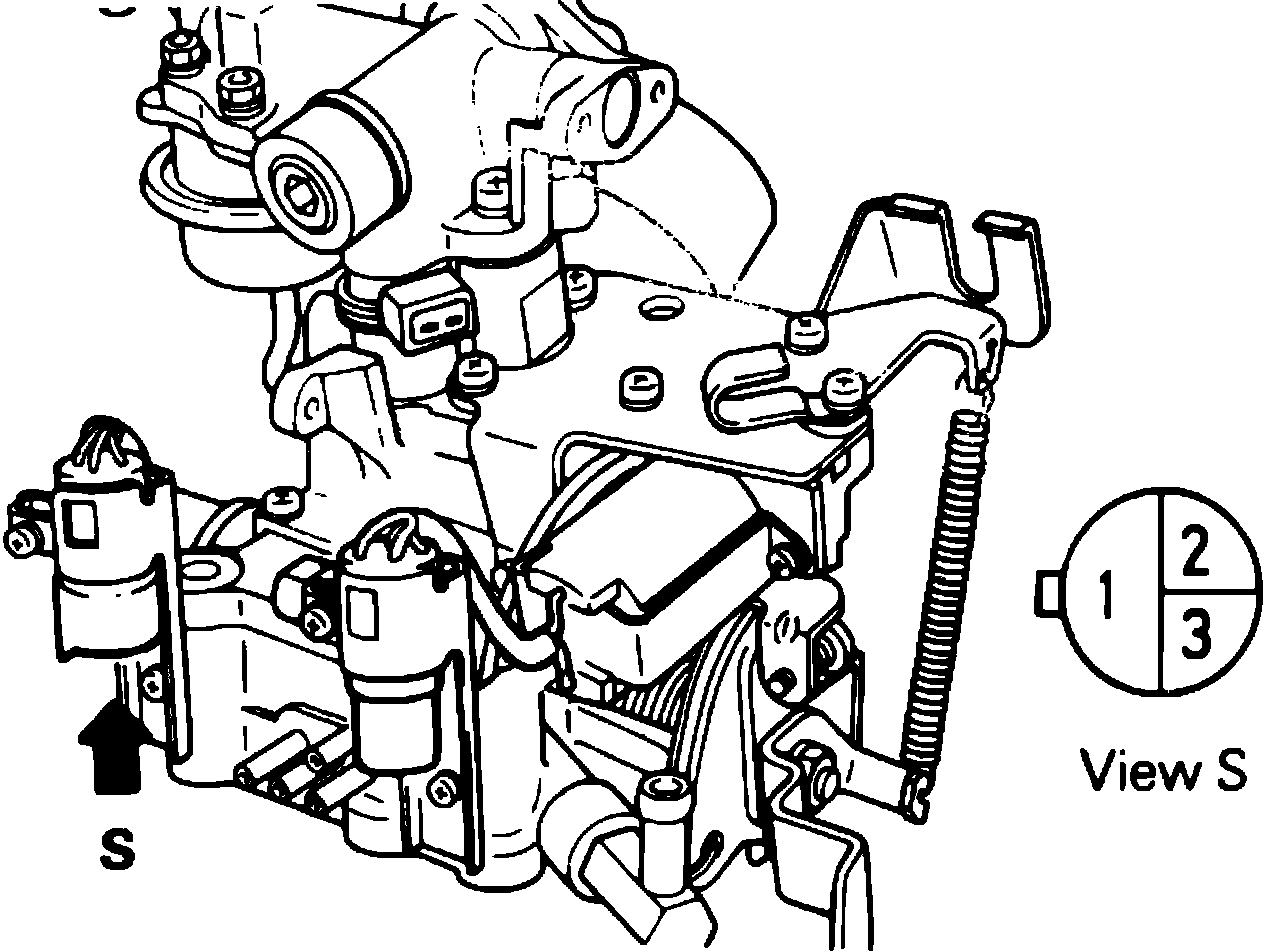

Fig. 59 Adjusting throttle position sensor..:

1. Ensure all parts are clean and fuel passages are free of foreign material.
2. Install new seal ring into throttle body groove, then assemble mixer body to throttle body and securely tighten attaching screws.
3. If removed, install ISC servo and bracket, then securely tighten attaching screws.
4. Install throttle body connector bracket, then clamp ISC connector to bracket.
5. Insert throttle return and damper spring, then install new seal rings into mixing body, flat side up, Fig. 55.
6. Install injectors into mixing body with new O-rings, then push injectors downward firmly as shown, Fig. 56.
7. Insert pulsation damper diaphragm into injector retainer, Fig. 57, then install spring and cover and tighten screws.
8. Install fuel pressure regulator into retainer with new O-rings, then check retainer filters for obstructions and replace as necessary.
9. Install injector retainer, then insert retaining bolts. Firmly tighten attaching bolts alternately.
10. Insert throttle position sensor joint ``A'' into joint ``B,'' Fig. 58, then temporarily tighten attaching screws. After installing injection mixer assembly to engine, adjust throttle position sensor as follows:
a. Clamp connector onto bracket.
b. Measure resistance values between terminals 1 and 2 or 2 and 3 while opening and closing throttle lever, Fig. 59. Sensor is properly installed if resistance values change as throttle lever is moved.
