Starion L4-2555cc 2.6L SOHC Turbo VIN N FI
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Manual Transmission/Transaxle
>>
M/T Technical Data
M/T Technical Data

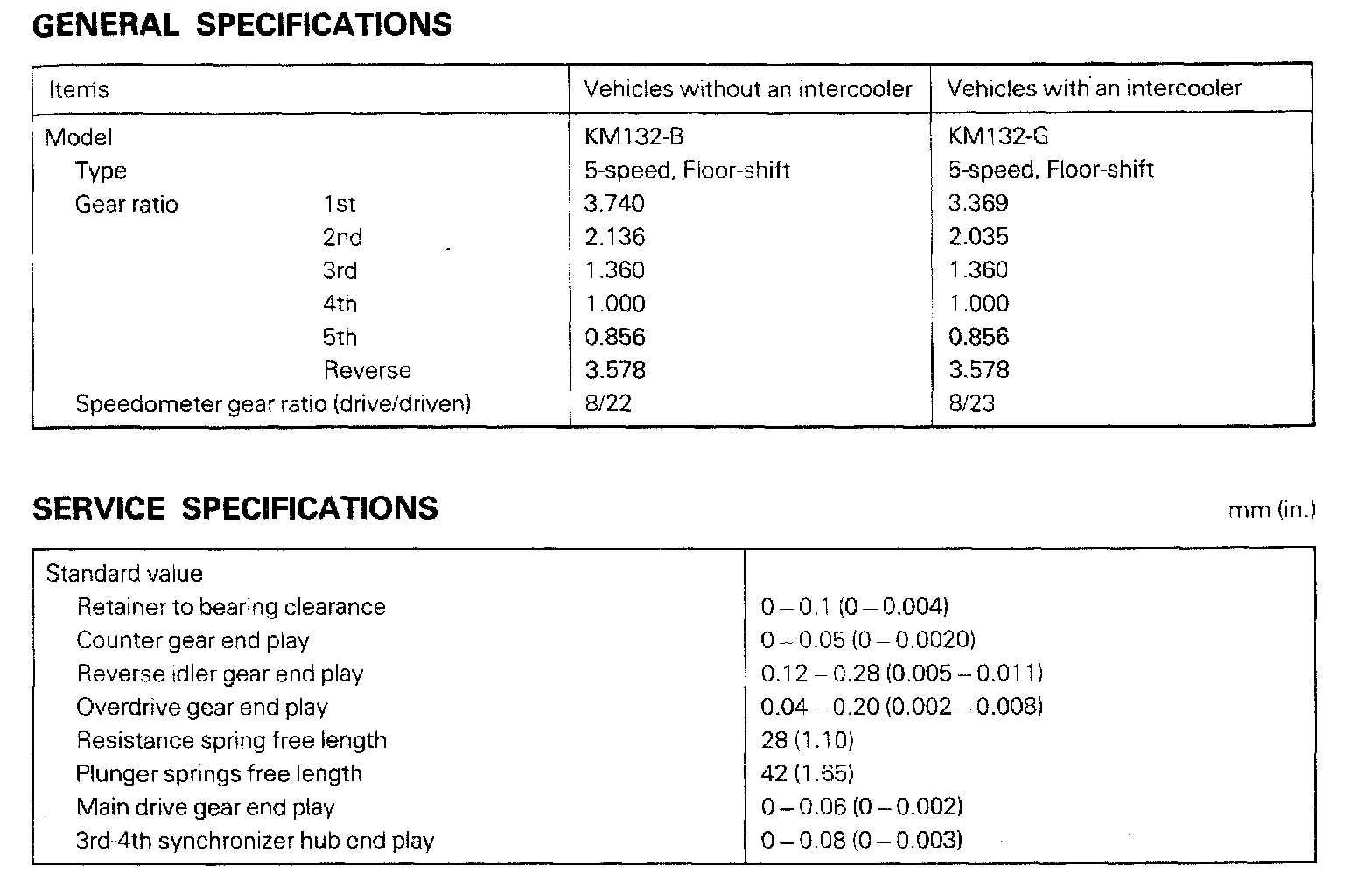

KM132 5-spd M/T, Gear Ratios & Standard Values:

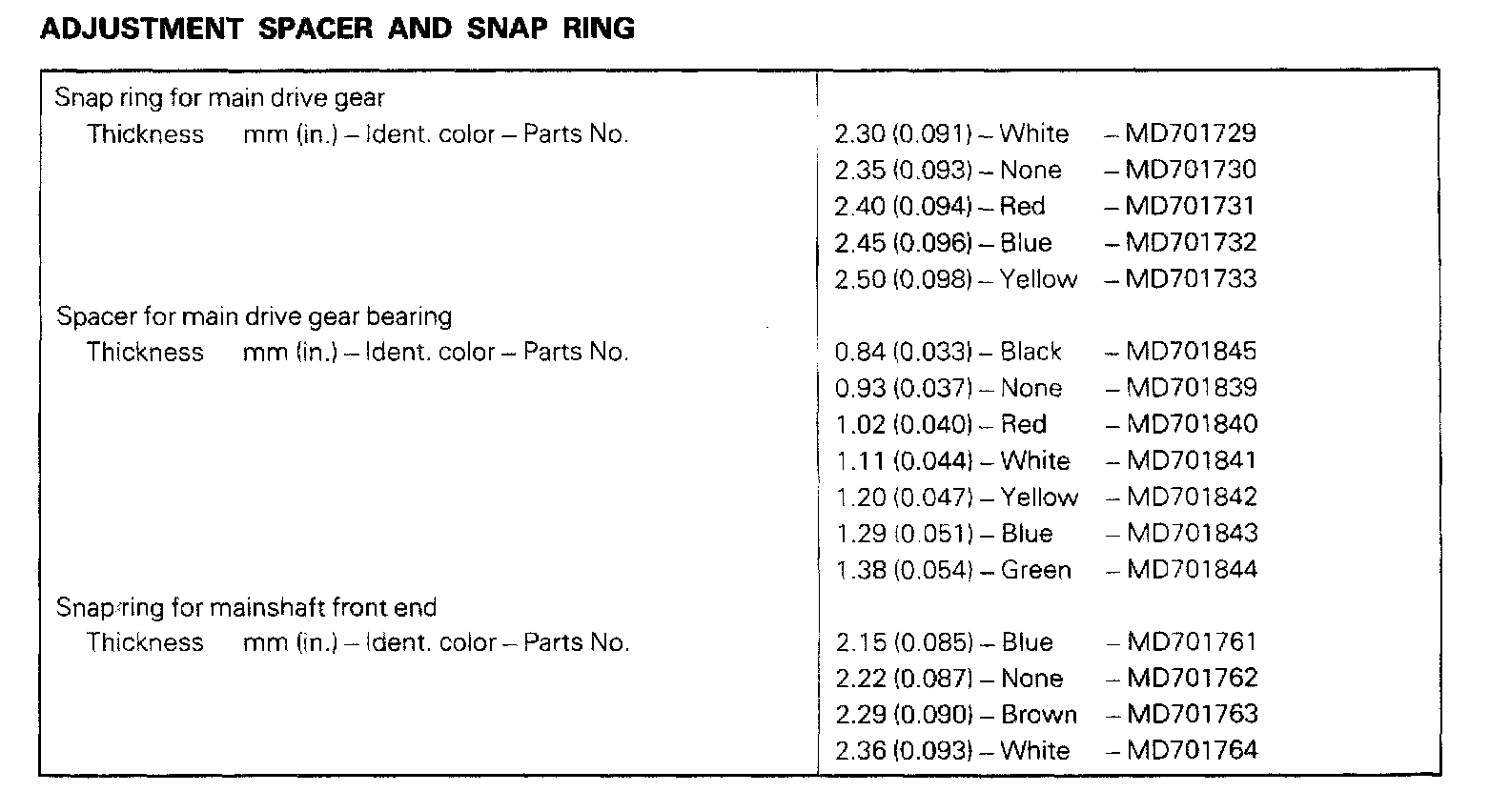

KM132 5-spd M/T, Main Drive Gear & Shaft Thickness:

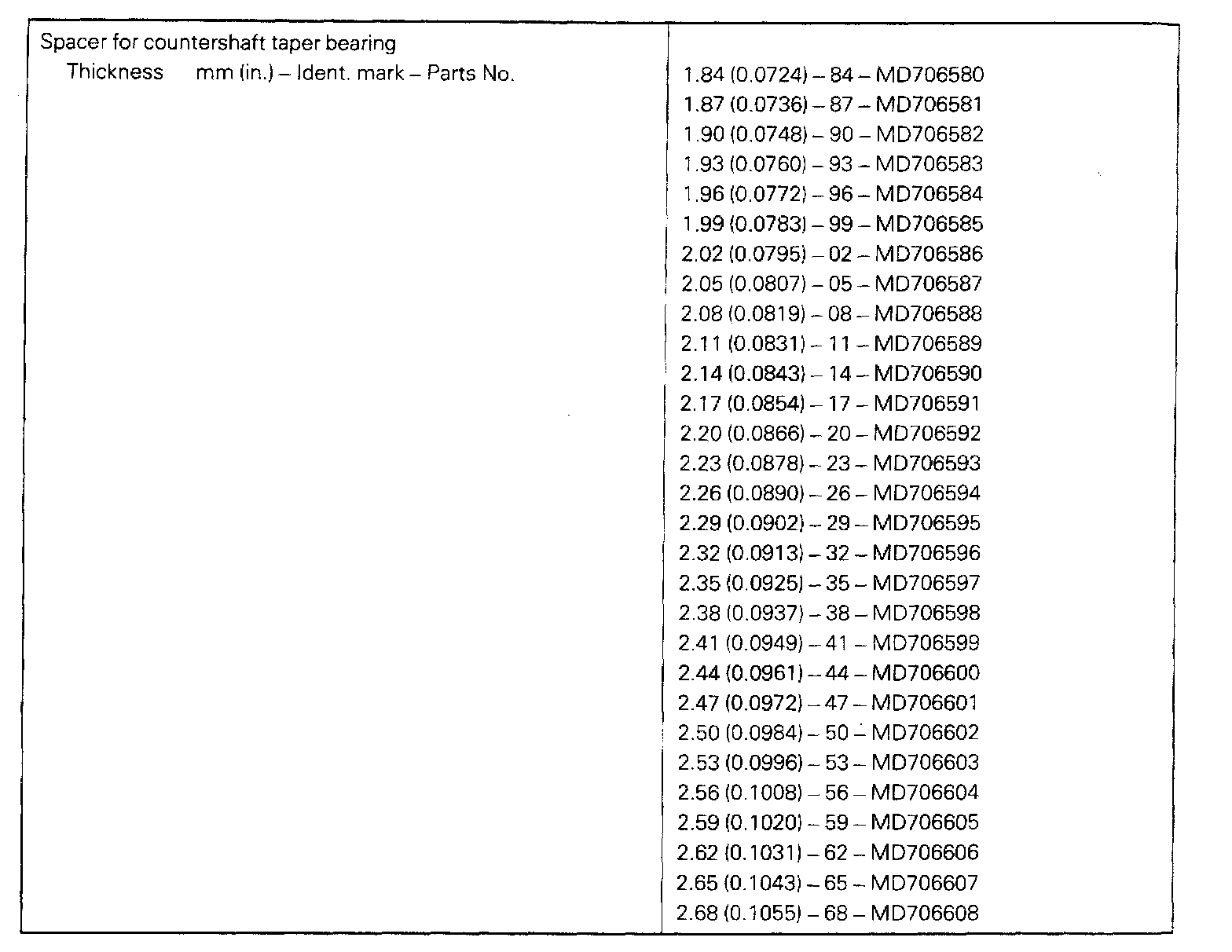

KM132 5-spd M/T, Countershaft Bearing Thickness:
