Mitsubishi
>>
1987
>>
Starion L4-2555cc 2.6L SOHC Turbo VIN N FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Engine Control Module
>>
Testing and Inspection
>>
ECM System Diagnostic Charts
>>
Green Connectors
>>
Part 2 of 2
Part 2 of 2

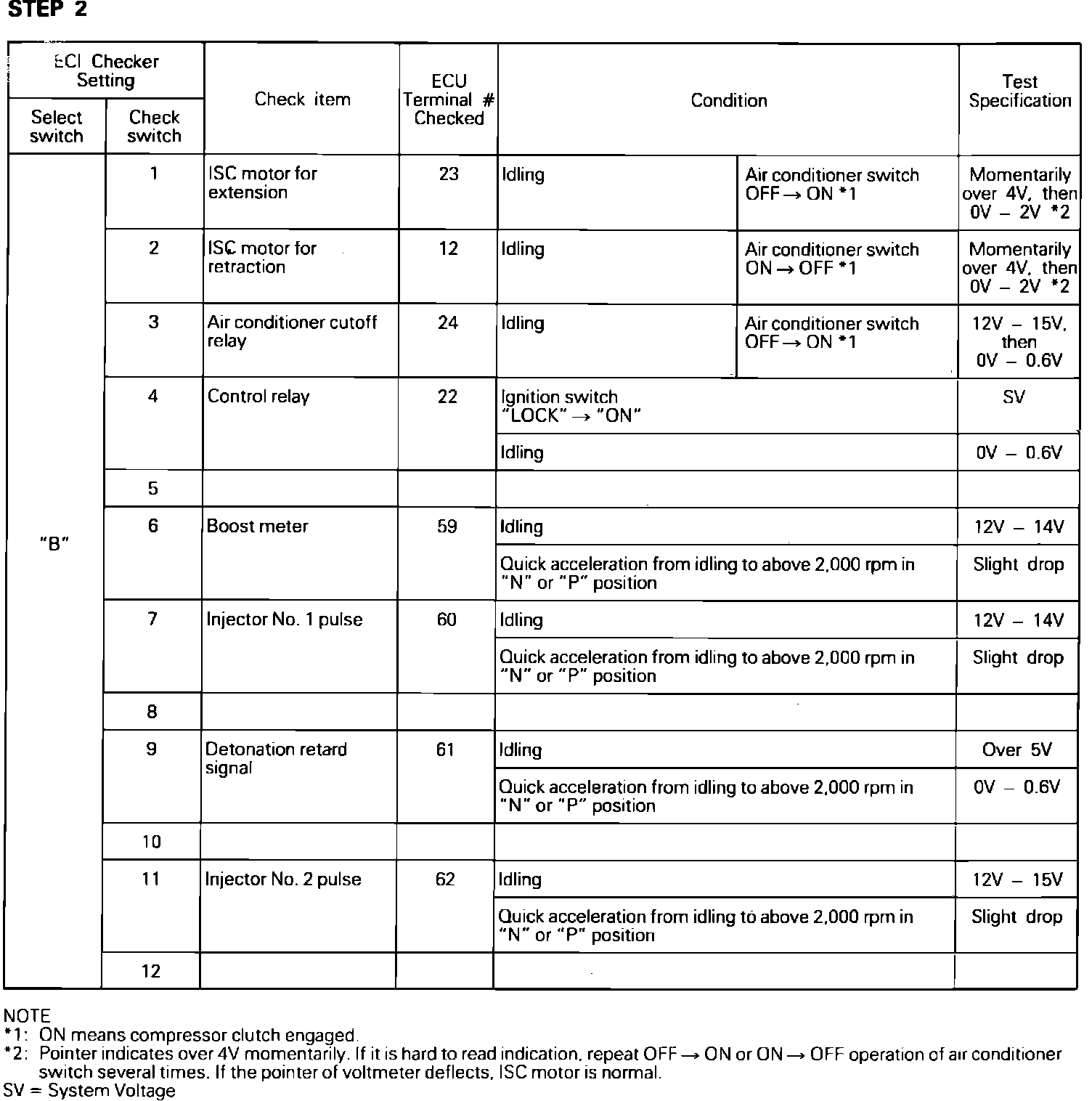

Fig. 24d ECI system diagnostic chart (green connectors).:
