Rear Toe-In, Adjust

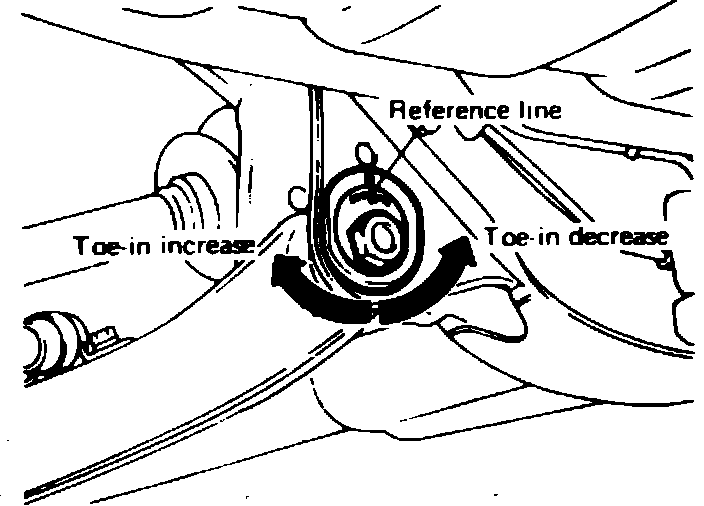

Fig. 5 Setting rear toe-in.:

1. Loosen lower control arm to crossmember locknut while holding attaching bolt.
2. Turn attaching bolt until toe-in is within specifications, Fig. 5. Rotate left and right attaching bolts equally. Movement of one division on the scale per side will change total toe-in approximately .08 inch.
3. Torque locknut to 94-108 ft. lbs.
