Wiper Switch: Service and Repair

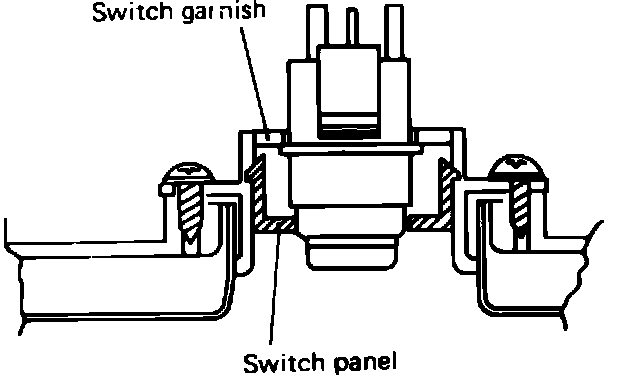

Fig. 20 Rear wiper switch.:

1. Disconnect battery ground cable.
2. Remove switch panel from instrument panel.
3. Remove rear wiper and washer switch from switch garnish, Fig. 20.
4. Reverse procedure to install.
