Engine - Thrust Plate Modification

87mitsubishi02

SUBJECT:

STARION THRUST PLATE MODIFICATION
NO. STB-87-09-004

DATE August, 1987

MODEL Starion
PURPOSE

This bulletin gives details regarding a modification made to the silent shaft thrust plate of Starion engines.

AFFECTED ENGINE NUMBER

From engine number EY7981



DETAILS

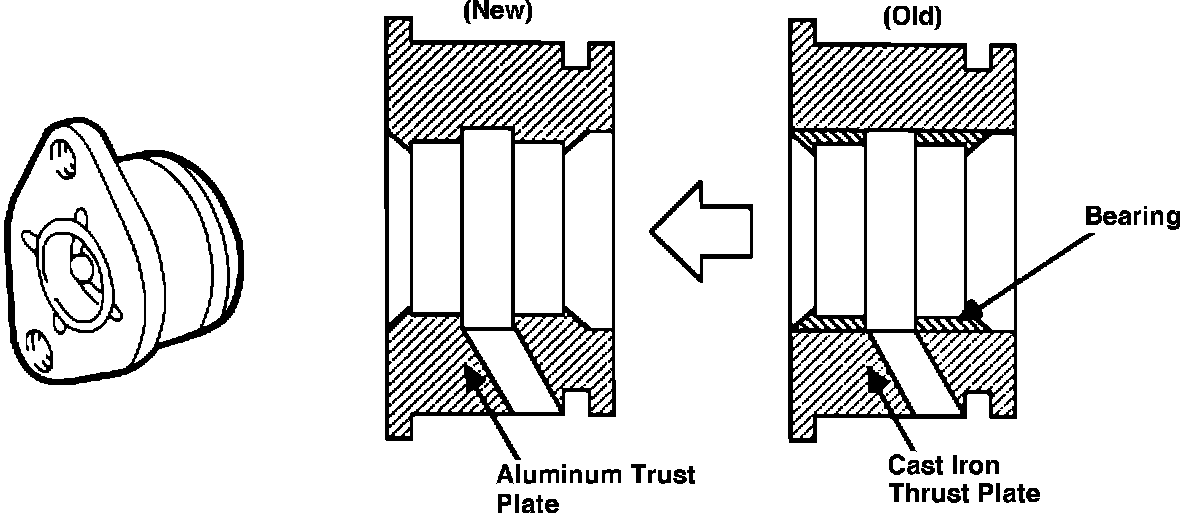

Beginning with the Affected Engine Number above, the thrust plate was changed from a cast iron type with a bearing to an aluminum type with no bearing. When installing the new type thrust plate, no bearing is necessary.
PARTS INFORMATION


PART NUMBER
PART NAME

NEW OLD

Thrust Plate MD094360 MD020897

Parts Interchangeability

Yes, new replaces old for Starion vehicles only.
