Brake Modulator - Repair Kit

87mitsubishi01

SUBJECT:

STARION BRAKE MODULATOR REPAIR KIT

NO. STB-87-05-003

DATE October, 1987

MODEL Starion




PURPOSE

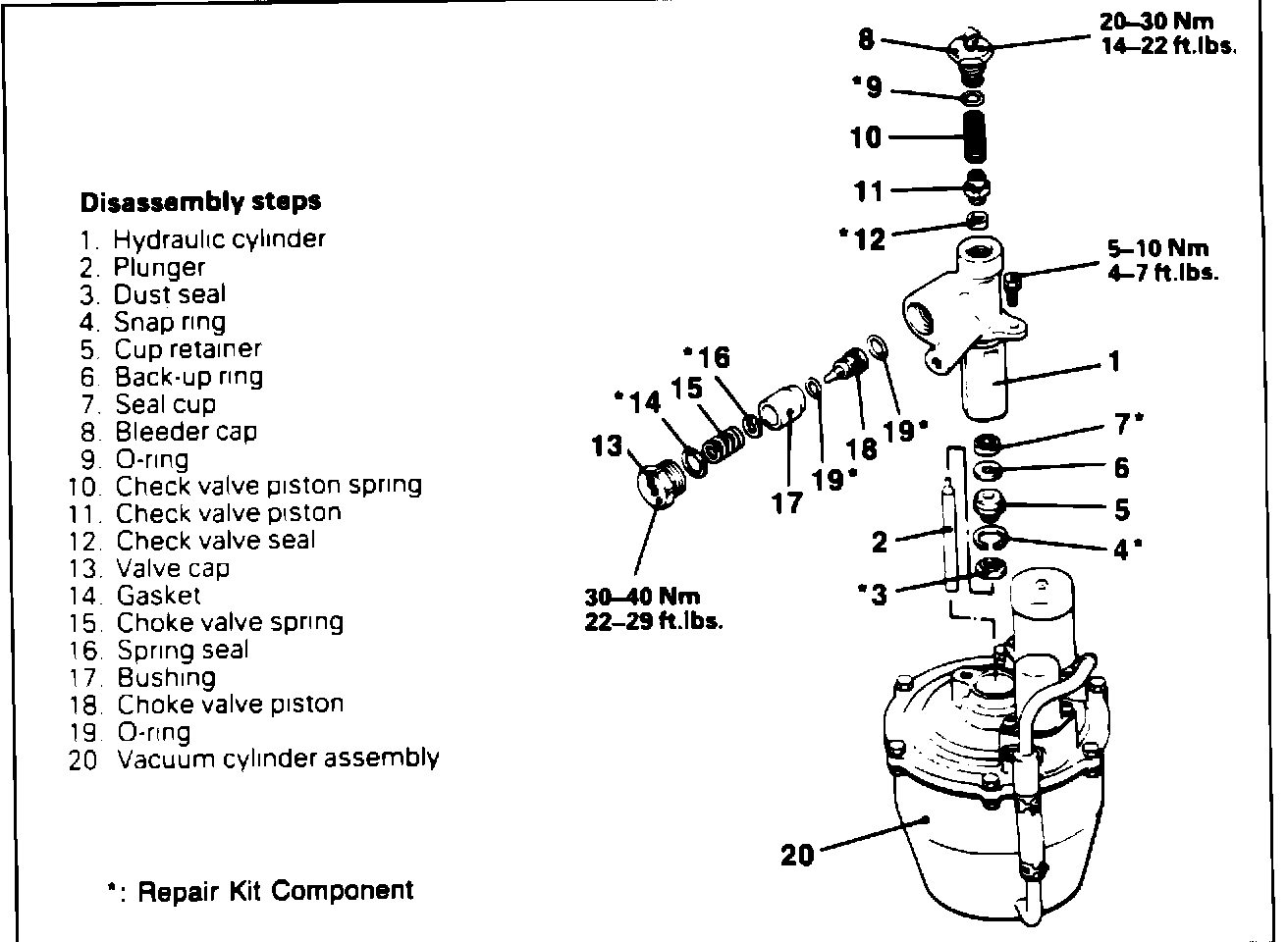

A new brake modulator repair kit (P/N MB587018) is available to reduce potential brake fluid leakage into the brake modulator assembly. One of the first symptoms of fluid leakage is a low fluid level in the master cylinder and the brake warning light on the instrument panel comes on. If fluid leakage into the modulator is evident, the new repair kit should be installed using the procedures shown on pages 5-61 through 5-65 of the 1987 Starion Service Manual, Vol. 1.

PARTS INFORMATION

PART NAME PART NUMBER

Repair Kit, Modulator MB587018
