Neutral Safety Switch: Testing and Inspection

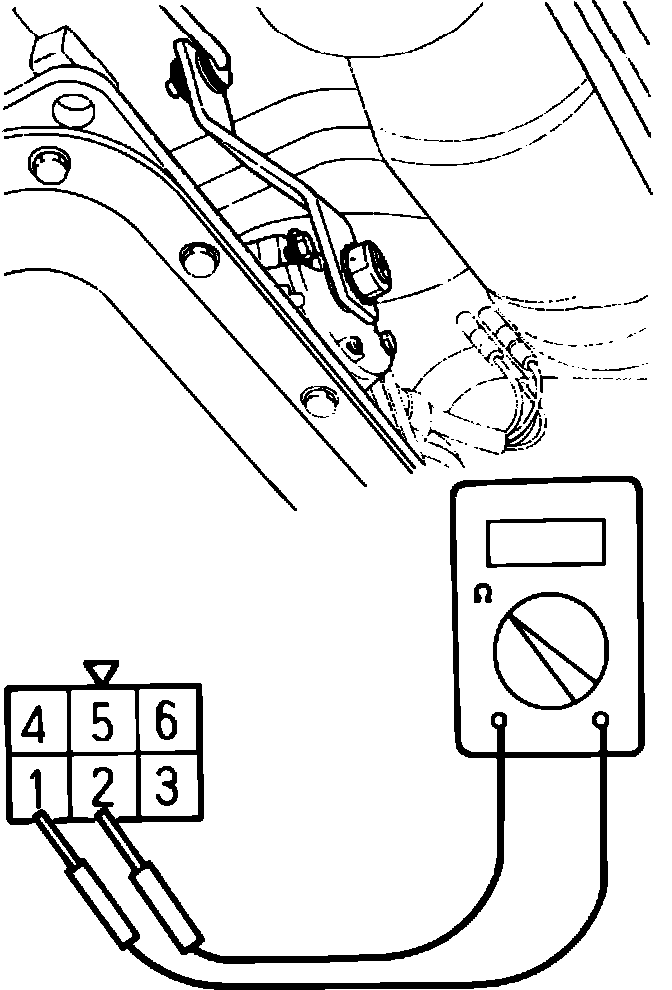

Fig. 46 Testing inhibitor switch.:

1987 - 88 Mirage & Starion
1. Disconnect inhibitor switch connector.
2. Operate selector lever and check continuity between terminals 1 and 2 of inhibitor switch side connector, Fig. 46.
3. Continuity should exist with selector lever in P and N position, but should not exist with selector lever in R position.
