Lighting Relay Box - Service Manual Update
87mitsubishi03SUBJECT:
1987 STARION LIGHTING RELAY BOX - SERVICE MANUAL UPDATE
NO. STB-87-08-006
DATE March, 1987
MODEL 1987 Starion
STB Revision STB-87-08-006
PURPOSE
In the 1987 Starion Service Manual, Vol. 2, Page 84, the callouts for the headlight relay and the taillight relay in the illustration were inadvertently transposed. As reference to this bulletin, please write the STB number in the revision box on Page 8A and make a notation on the illustration to correct the callouts.
REVISION

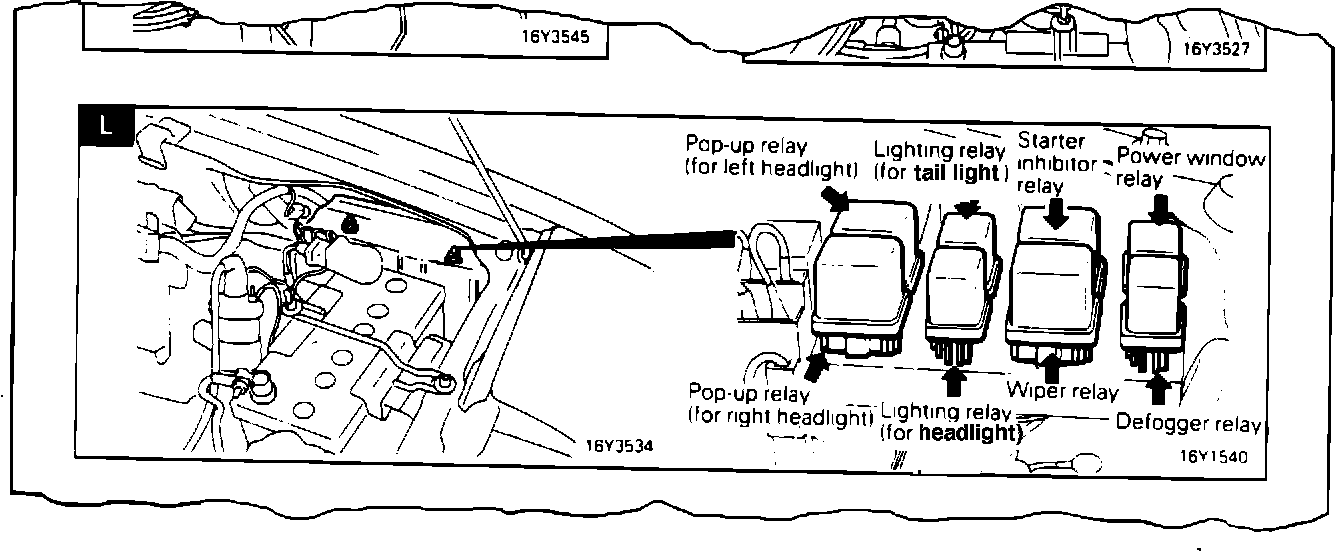

In the illustration, change the locations of the callouts for "Lighting Relay (For Headlight)" and "Lighting Relay (For Taillight)" as illustrated below.
