Electronic Brake Control Module: Locations

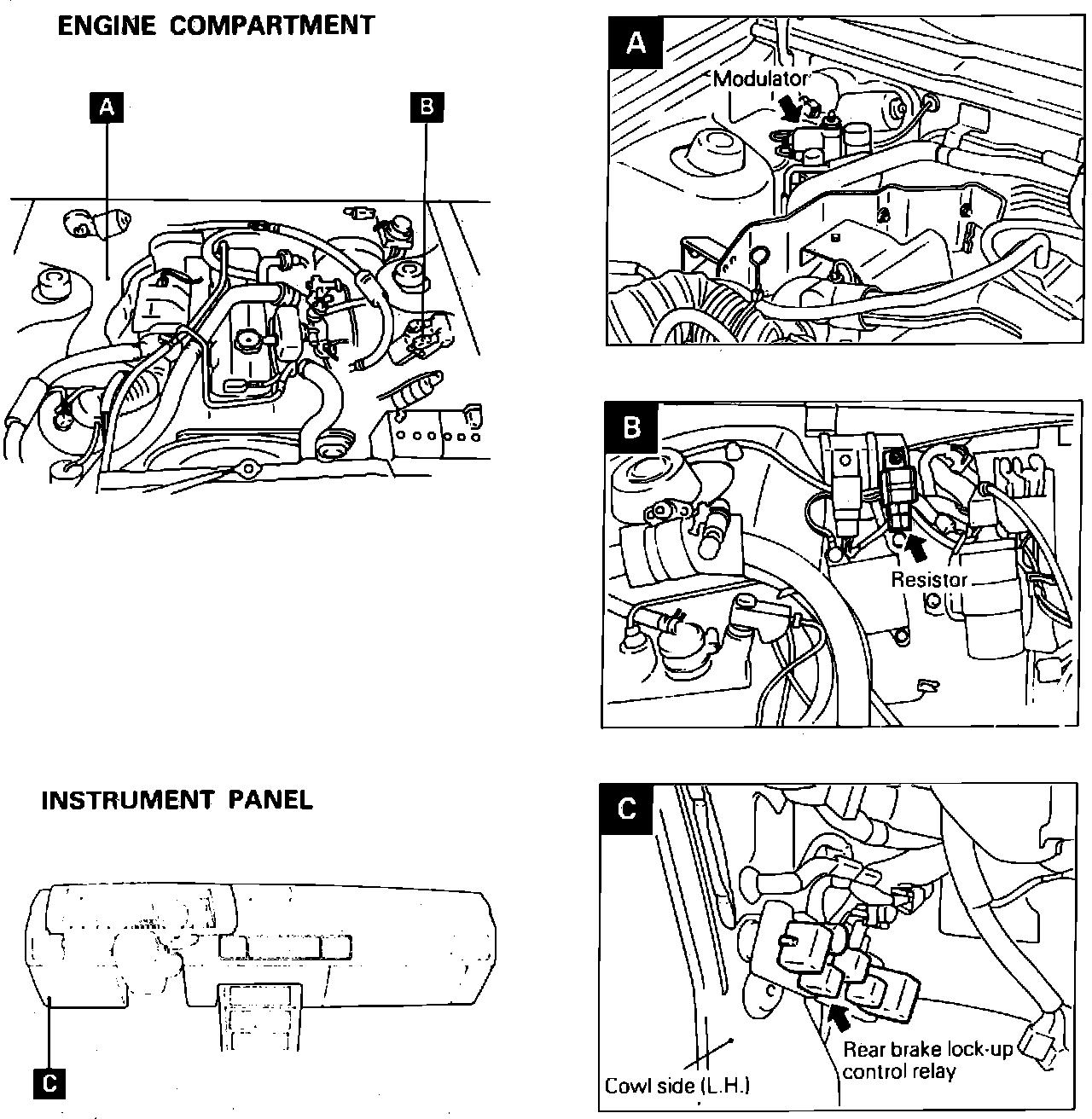

Rear Brake Lock-Up Control Component Locations (Part 1 Of 2).:




Rear Brake Lock-Up Control Component Locations (Part 1 Of 2).:




RH Inner Quarter Panel

Applicable to: Starion
