Ignition Ballast Resistor: Locations

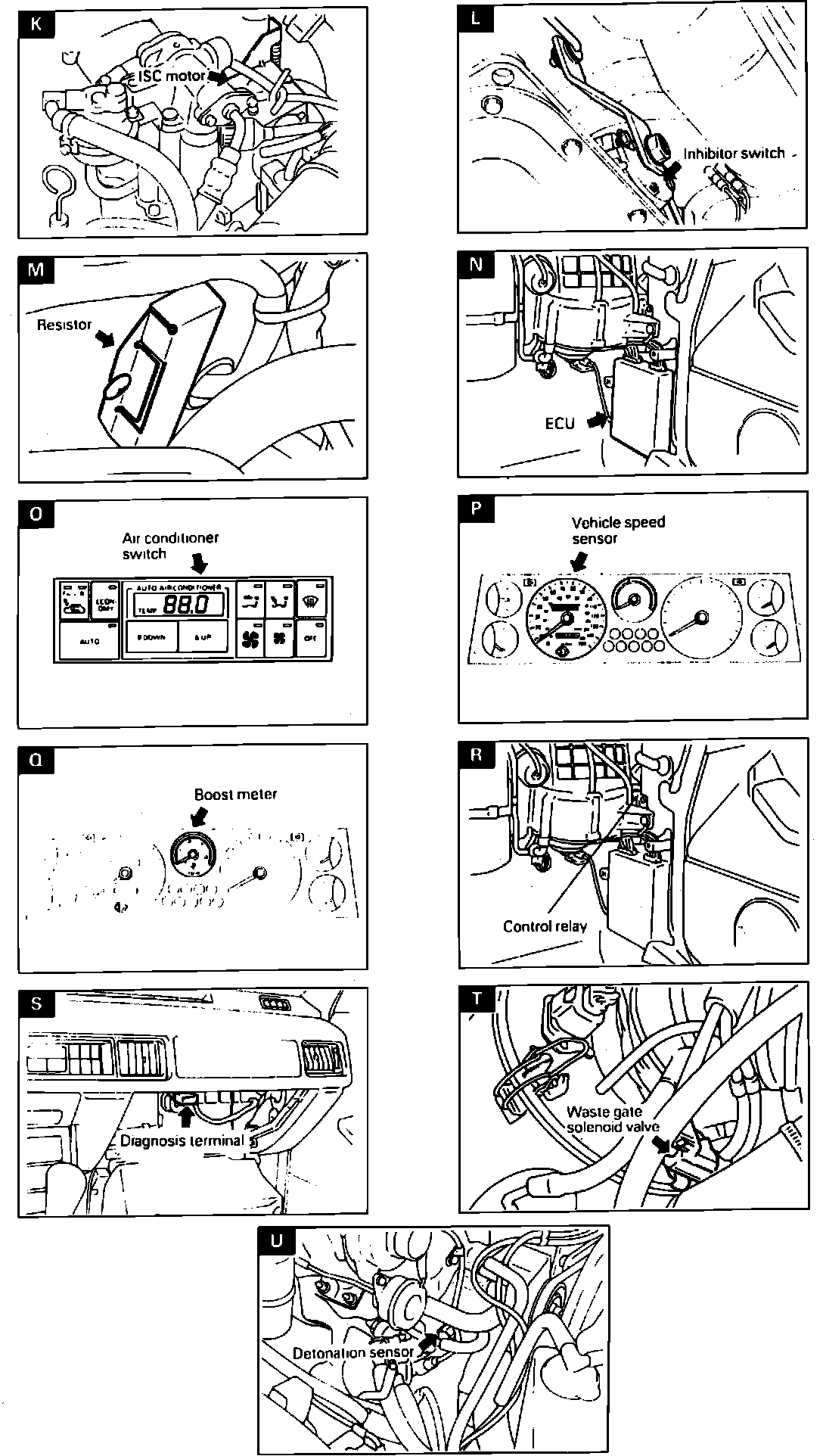

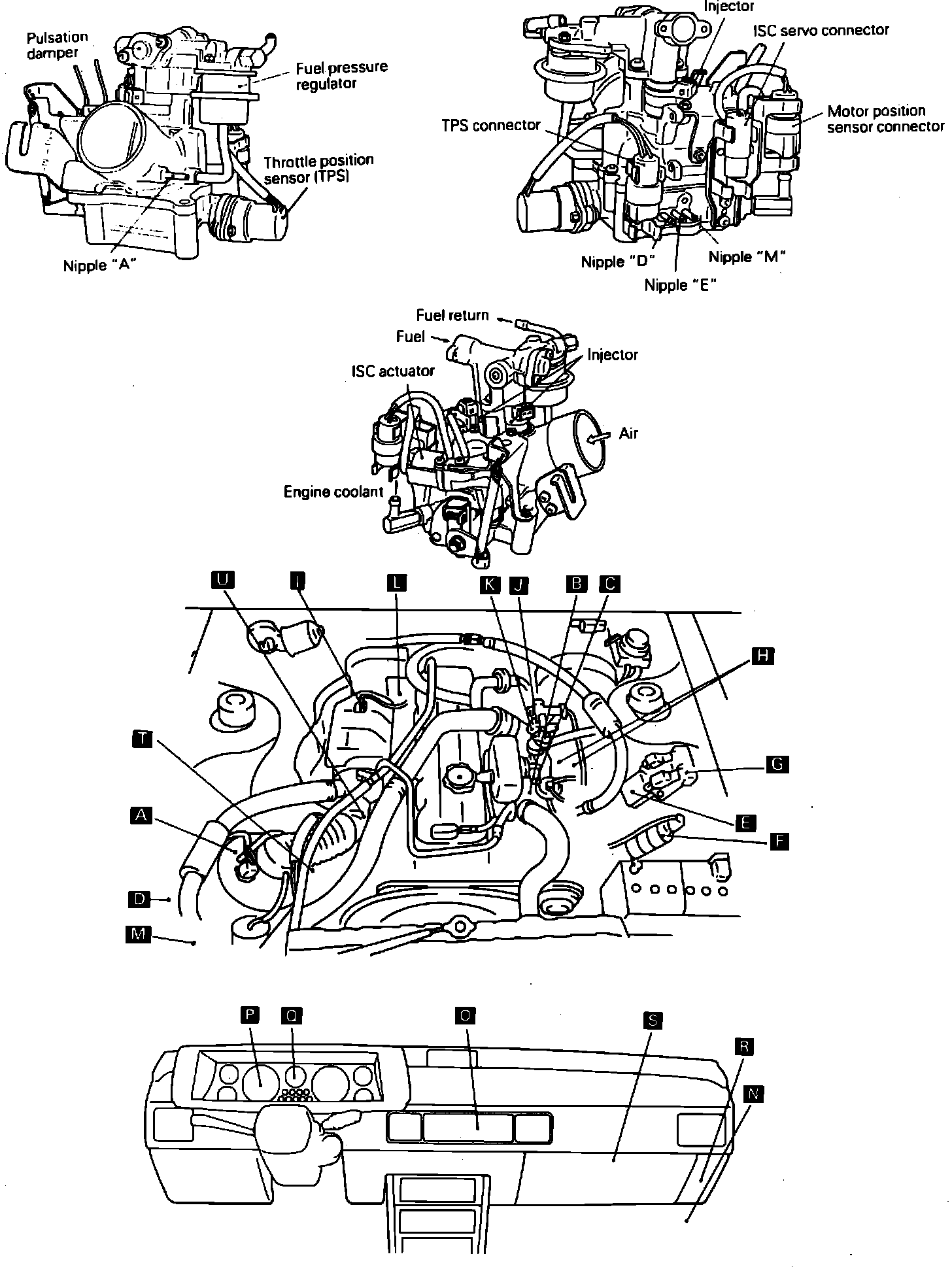

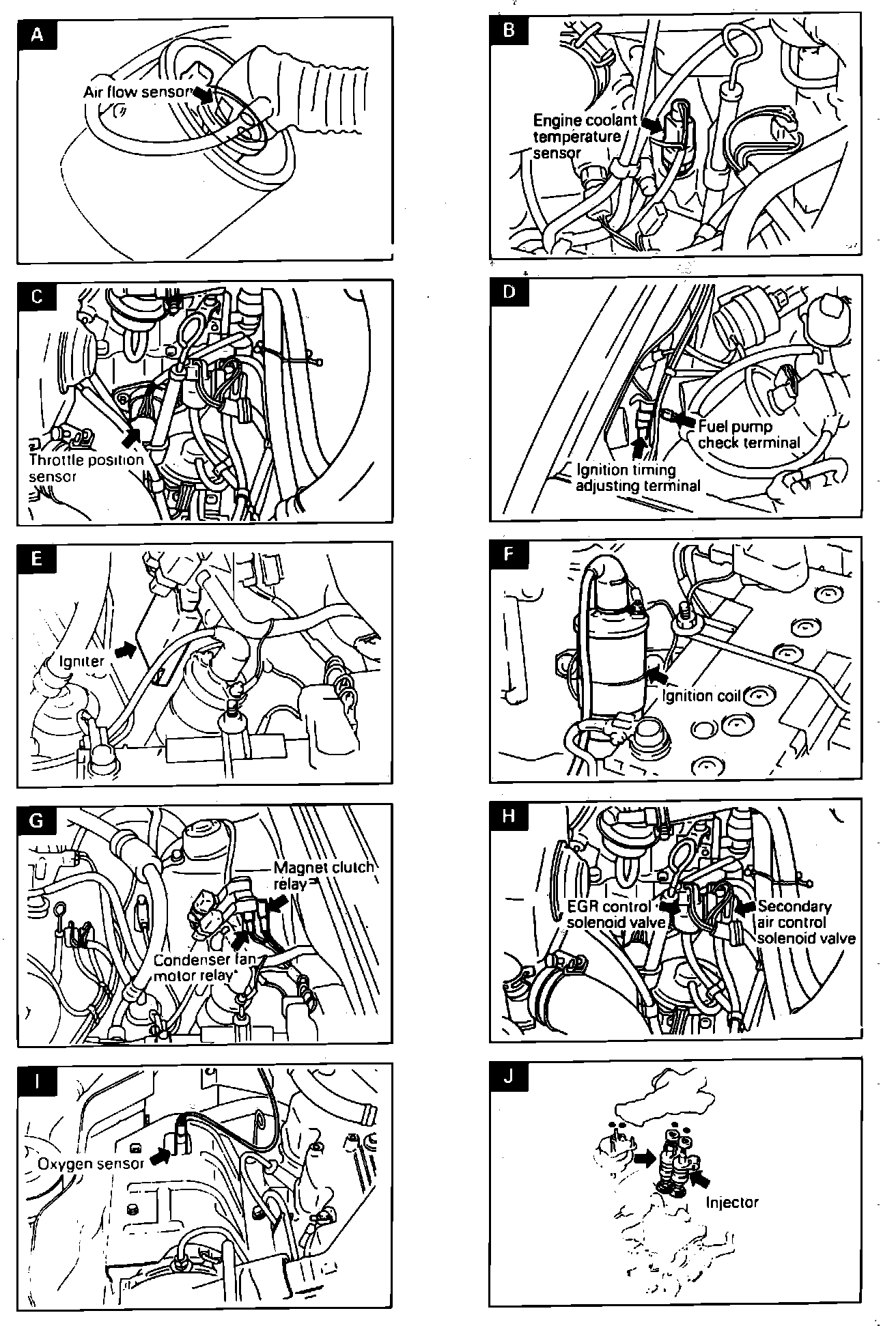

Electronic Controlled Injection (ECI) Component Locations (Part 1 Of 3).:

Electronic Controlled Injection (ECI) Component Locations (Part 1 Of 3).:

Electronic Controlled Injection (ECI) Component Locations (Part 1 Of 3).:

RH Front Corner Of Engine Compartment

Applicable to: Starion
