Emission Label Installation

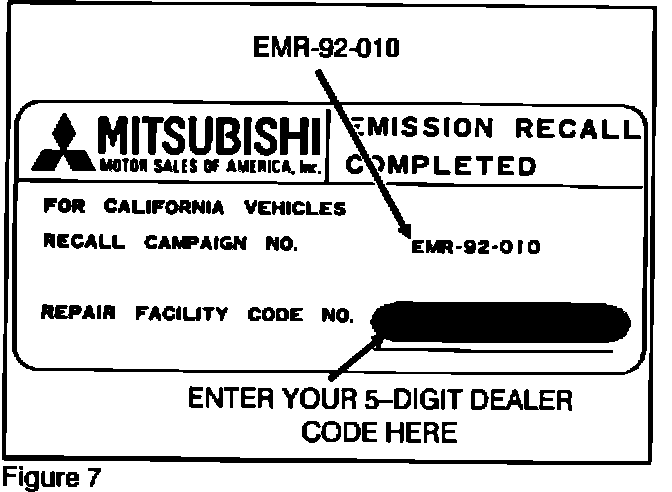

1. Write in your 5-digit dealer code under the white flap on the Emission Recall Completed Label (Figure 7).

2. Carefully remove the white paper from the backside of the flap. Press the now clear flap portion onto the label.

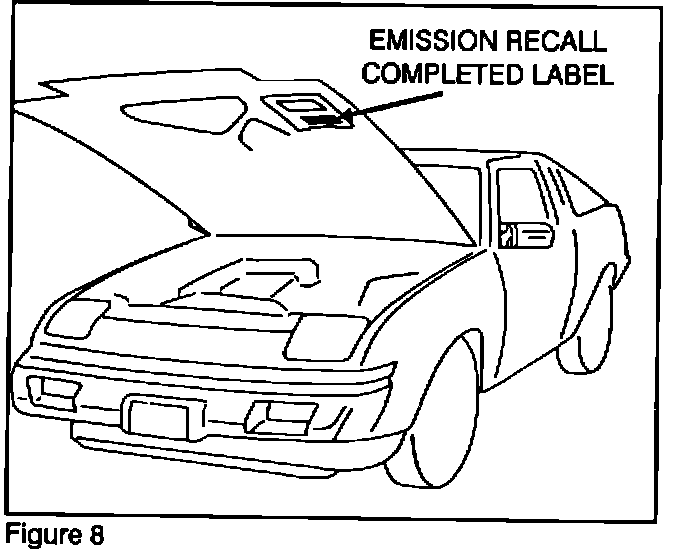

3. Carefully remove all dirt and oil from the vacant area BELOW the existing Vehicle Emission Control Information (VECI) label. Affix the Emission Recall Completed Label BELOW the existing (VECI) label (Figure 8).
