Complete Emission Control Sys. Diagram (With Intercooler)
Complete Emission Control Sys. Diagram (With Intercooler)

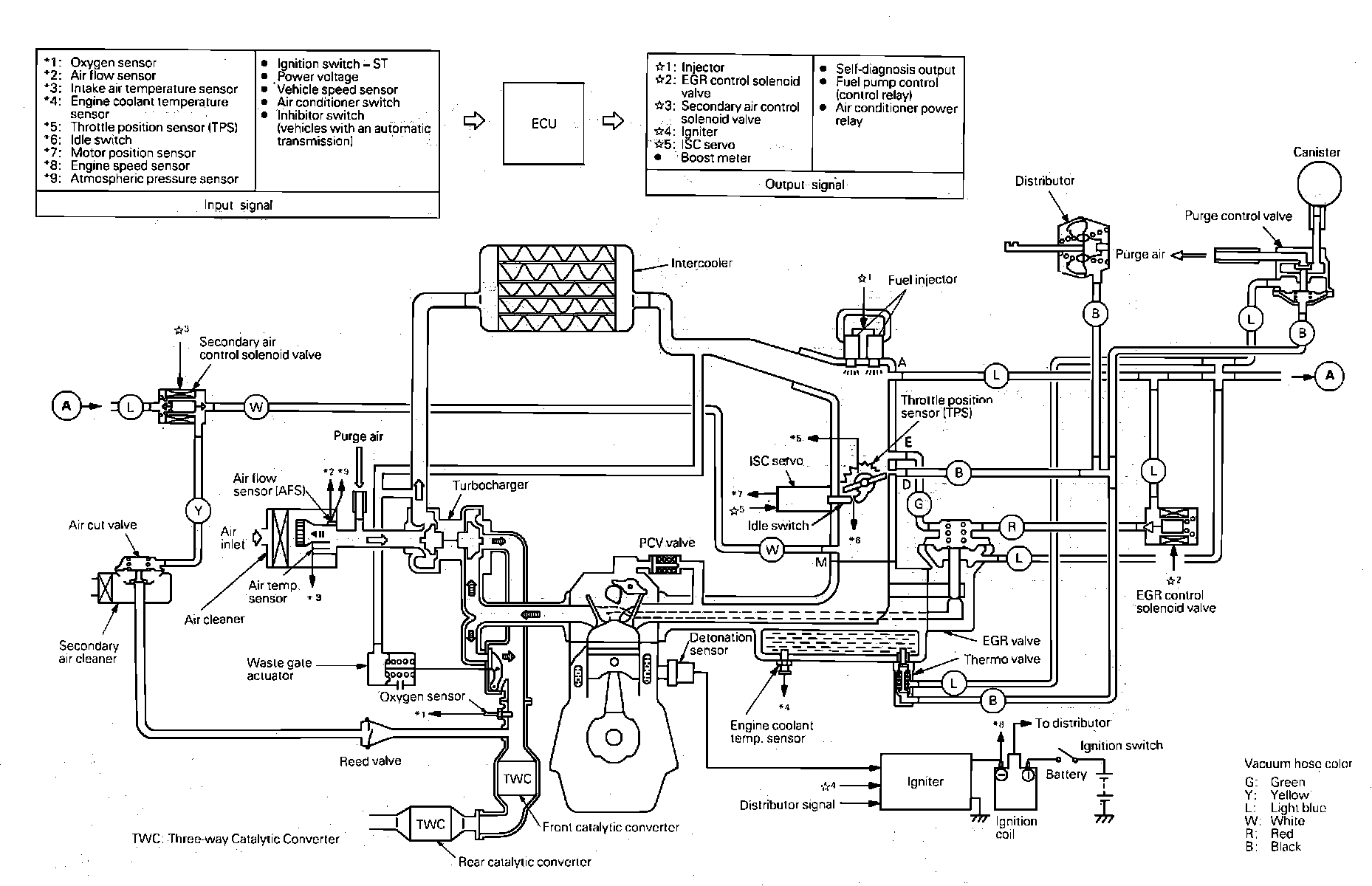

Fig. 502 Complete emission control system diagram (with intercooler):
