License Plate Retaining Screw - Specifications

87mitsubishi02

SUBJECT:

LICENSE PLATE RETAINING SCREW

NO. STB-87-23-005

DATE August, 1987

MODEL Galant & Mirage

PURPOSE

This bulletin gives license plate retaining screw specifications for Galant and Mirage vehicles. If the proper size retaining screw is not used, the bracket grommet may break and/or the license plate screw may not tighten securely.




DETAILS

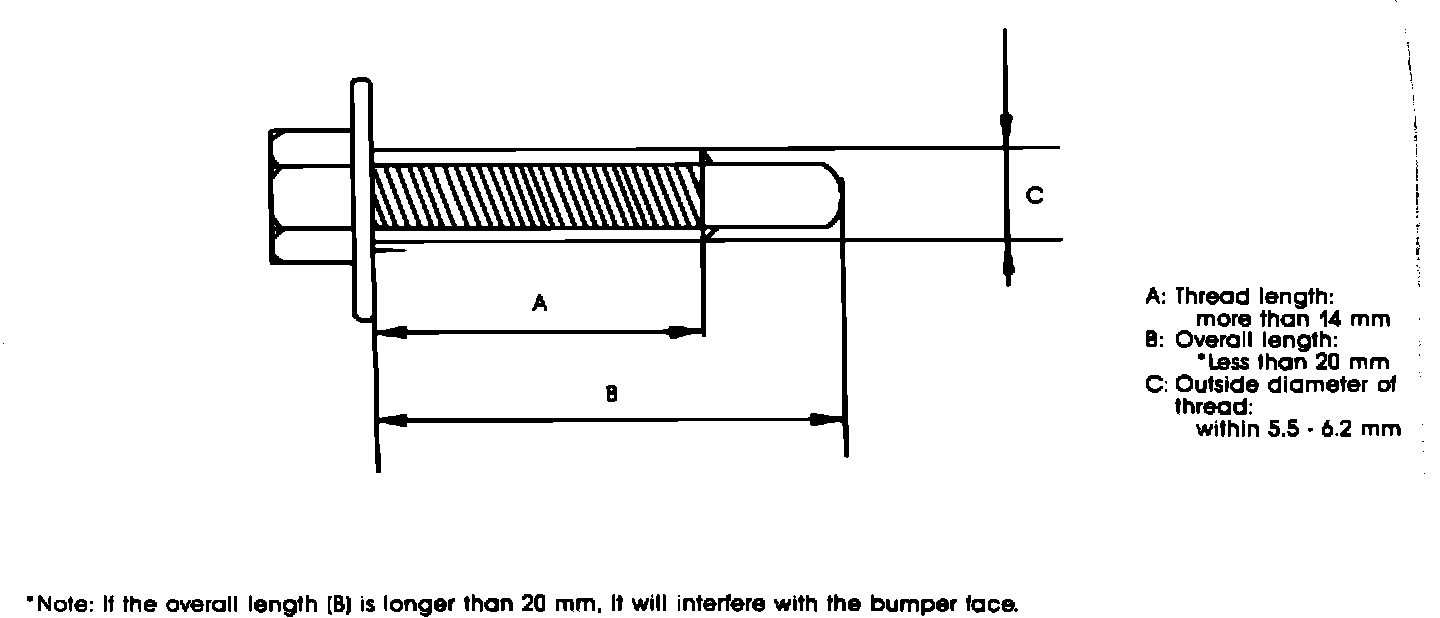

License Plate Screw Specifications

Thread Length - More than 14 mm (approx. 9/16 in.)
Overall Length - Less than 20 mm (approx. 3/4 in.)
Outside Thread Diameter - 5.5 - 6.2 mm (approx. 1/4 in.)

Recommended Screw Size - 20 x 6M
