Electric Choke Relay - Service Manual Update

87mitsubishi03

SUBJECT:
MIRAGE ELECTRIC CHOKE RELAY - SERVICE MANUAL UPDATE
NO. STB-87-14-012

DATE September, 1987

MODEL 1987 Mirage



STB Revision STB-87-14-012

PURPOSE

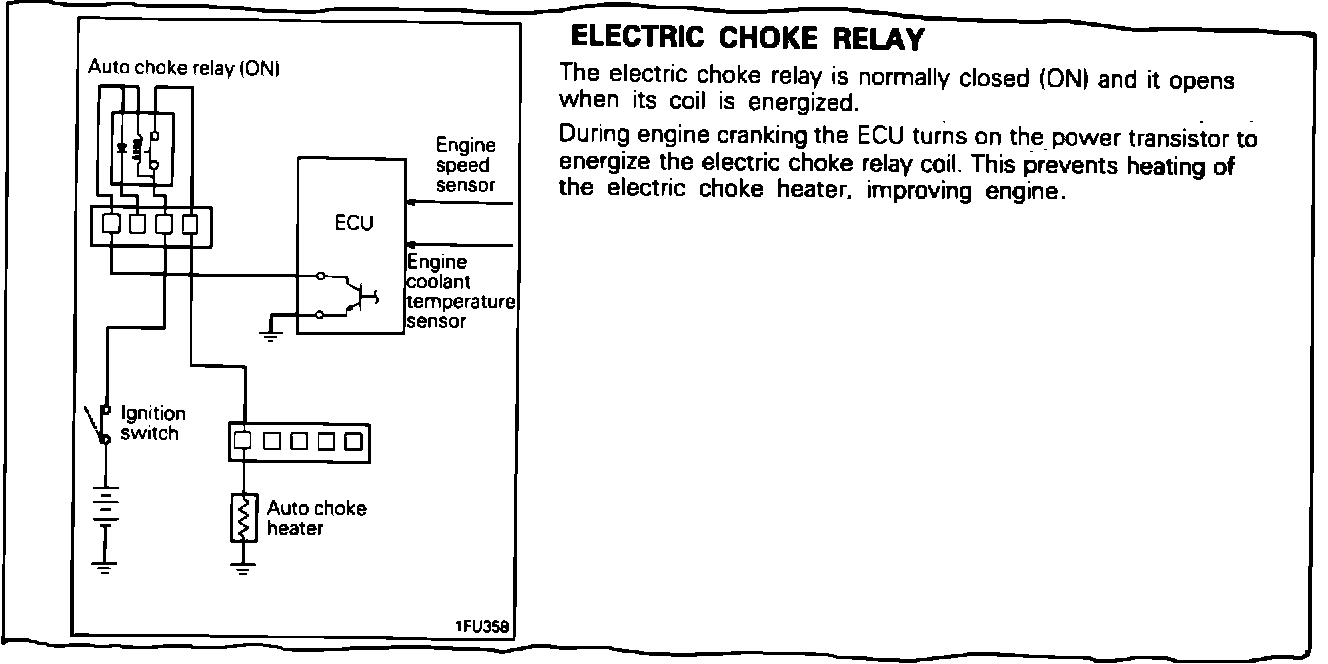

The technical description of the electric choke relay operation in the 1987 Mirage Service Manual is incorrect. The correct description is shown in the illustration below. As reference to this bulletin, write the STB number in the revision box on Page 14-20 in the 1987 Mirage Service Manual, Vol. 1, and line out only the words lined out in the illustration below.
